Insert bolt and check transducer position on transom.
3. Assembling the transducer. Once you determine the correct posi-
tion for the ratchets, assemble the transducer as shown in the following
figure. Don't tighten the lock nut at this time.

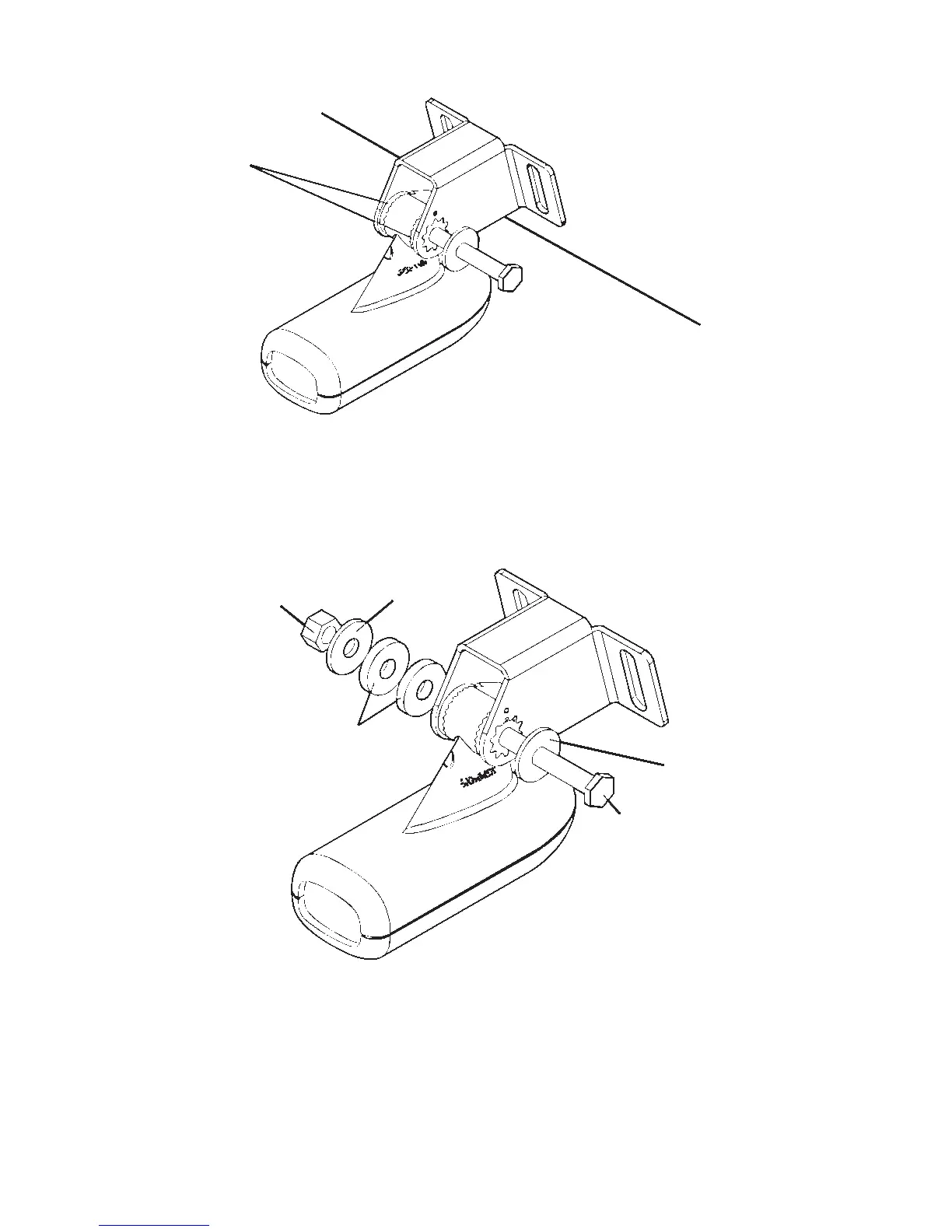

Assemble transducer and bracket.
4. Drilling mounting holes. Hold the transducer and bracket assem-
bly against the transom. The transducer should be roughly parallel to
Ratchets
Nut
Metal
washer
Metal washer
Bolt
Rubber
washers
To Next Page
