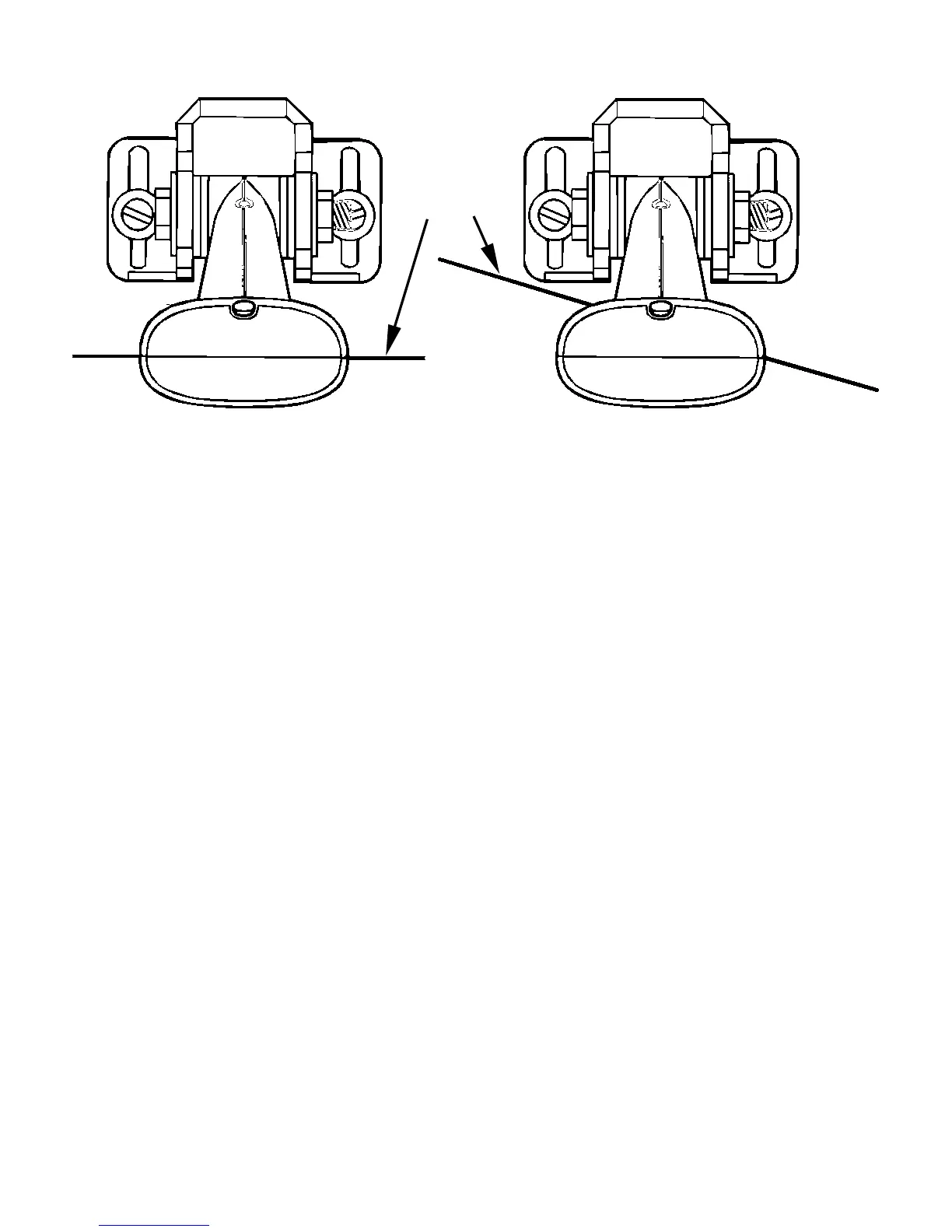

Align transducer centerline with hull bottom
and attach to transom.
6. Route the transducer cable through or over the transom to
the sonar unit. Make sure you leave some slack in the cable at the
transducer. If possible, route the transducer cable away from other
wiring. Electrical noise from the engine's wiring, bilge pumps, VHF
radio wires, cables and aerators can be picked up by the sonar. Use
caution when routing the transducer cable around these wires.
WARNING:
Clamp the transducer cable to the transom close to the
transducer. This can prevent the transducer from enter-
ing the boat if it is knocked off at high speed.
If you need to drill a hole in the transom to pass the connector through,
the required hole size is 5/8". (If you intend to route an additional speed
or temp sensor cable through the same hole, you will need a 1" (25.4
mm) drill bit instead.)
Caution:
If you drill a hole in the transom for the cable, make sure it is
located above the waterline. After installation, be sure to seal the
hole with the same marine grade above- or below-waterline
sealant used for the mounting screws.
Flat-bottom hull
Deep-"vee" hull
Bottom
of
hull
To Next Page
