24
stalling an inline switch. This will let you shut off power to the
power cable when the unit is not in use. When you are not using
the unit, you should always shut off power to the power cable, es-
pecially when the power cable is disconnected from the unit.

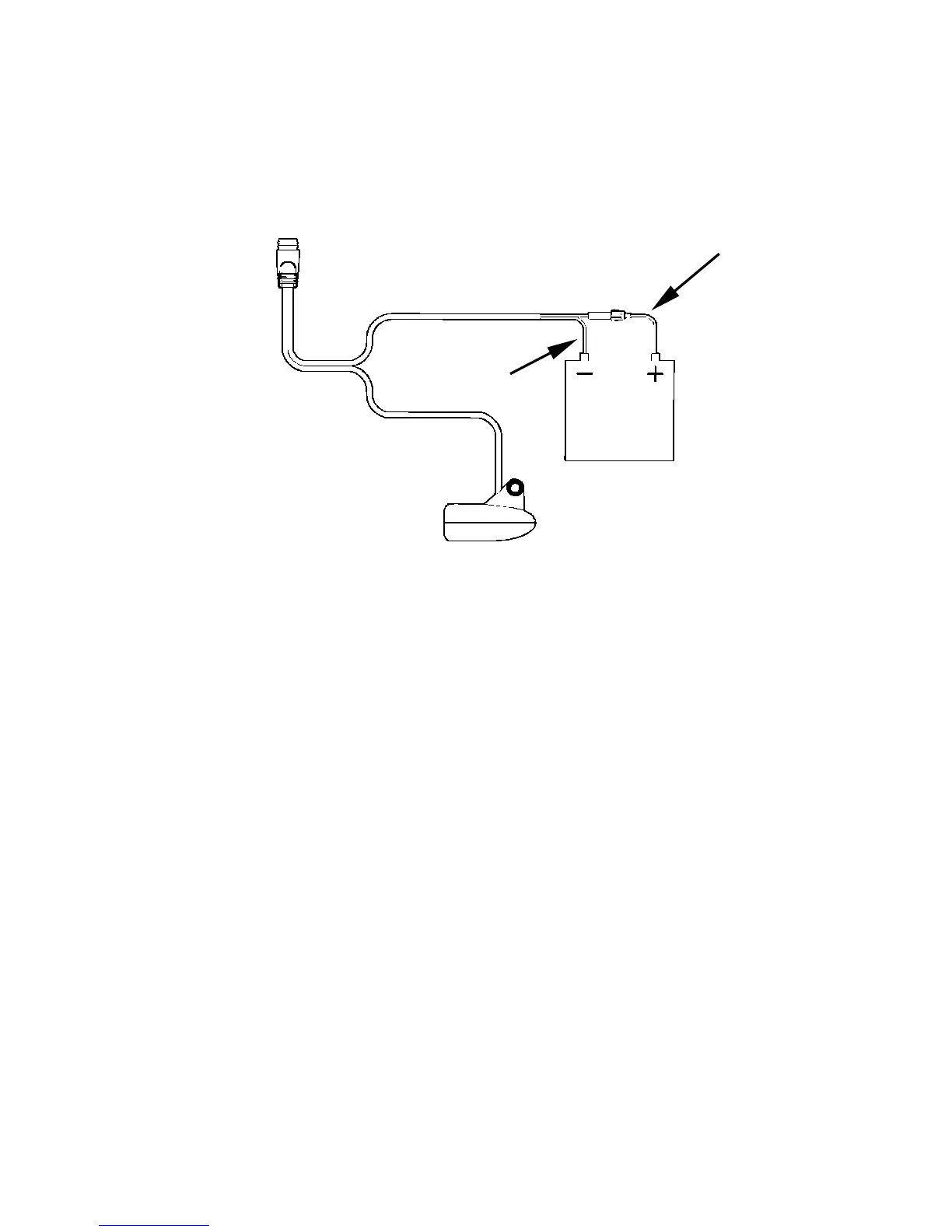

Power connections for the Cuda 242 sonar unit
(direct battery connection shown).
If possible, keep the power cable away from other boat wiring, espe-
cially the engine's wires. This will provide the best isolation from elec-
trical noise. The power cable has two wires, red and black. Red is the
positive lead, black is negative or ground. Make sure to attach the in-
line fuse holder to the red lead as close to the power source as possible.
For example, if you have to extend the power cable to the battery or
power buss, attach one end of the fuse holder directly to the battery or
power buss. This will protect both the unit and the power cable in the
event of a short. It uses a 3-amp fuse.
Caution:
Do not use this product without a 3-amp fuse wired into the
power cable! Failure to use a 3-amp fuse will void your war-
ranty.
12 volt
battery
Black wire
Red wire with
3 amp fuse
To unit
