41
NOTE:
Using the Zoom command while in auto Zoom mode will always
enlarge the echoes near the bottom, because auto Range always
keeps the bottom displayed in the lower portion of the screen.
When you choose to use the zoom feature while the unit is in man-
ual Depth Range mode, you can select one of 17 pre-set Zoom
Ranges. This lets you enlarge a desired segment of the water col-
umn.
To do this, make sure Depth Range is set to manual mode. Next,
press
MENU until the ZOOM menu appears. Press ↑ to select ON, then
press
MENU UP to display the ZOOM RANGE menu.
Use the arrow keys to select a desired zoom size. When you are fin-
ished, press
PWR to clear the menu from the display.

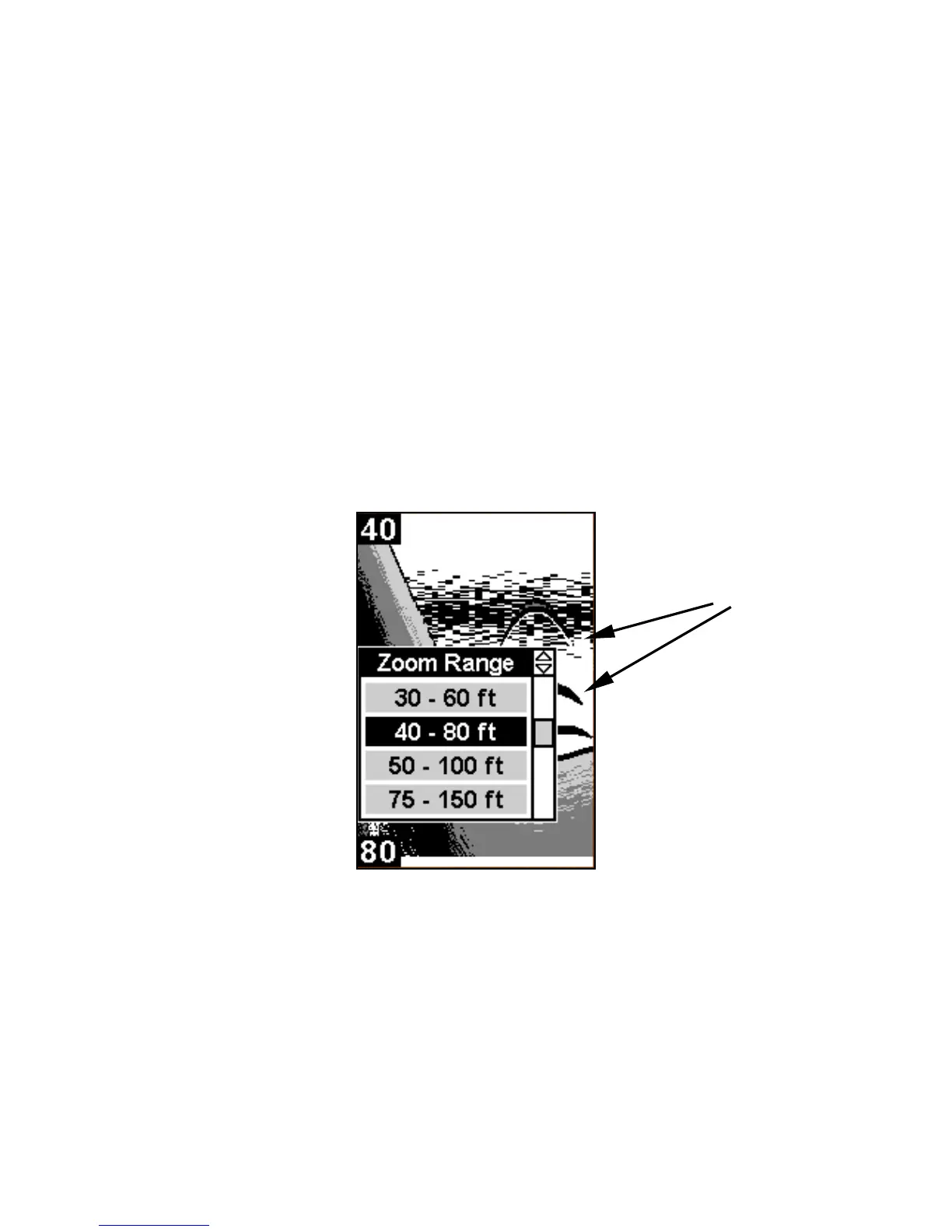

Zoom Range menu with the 40-80 foot zoom selected.
You can select from these zoom size ranges: 0-10, 5-15, 10-20, 15-
30, 20-40, 30-60, 40-80, 50-100, 75-150, 100-200, 150-300, 200-400,
300-600, 400-800, 500-1000, 750-1500 and 1000-2000.
Enlarged
fish
arches
