Eagle T100 - Carriage Height Adjustment; Conveyor Width Adjustment

- 10 -
5. Maintenance & Troubleshooting

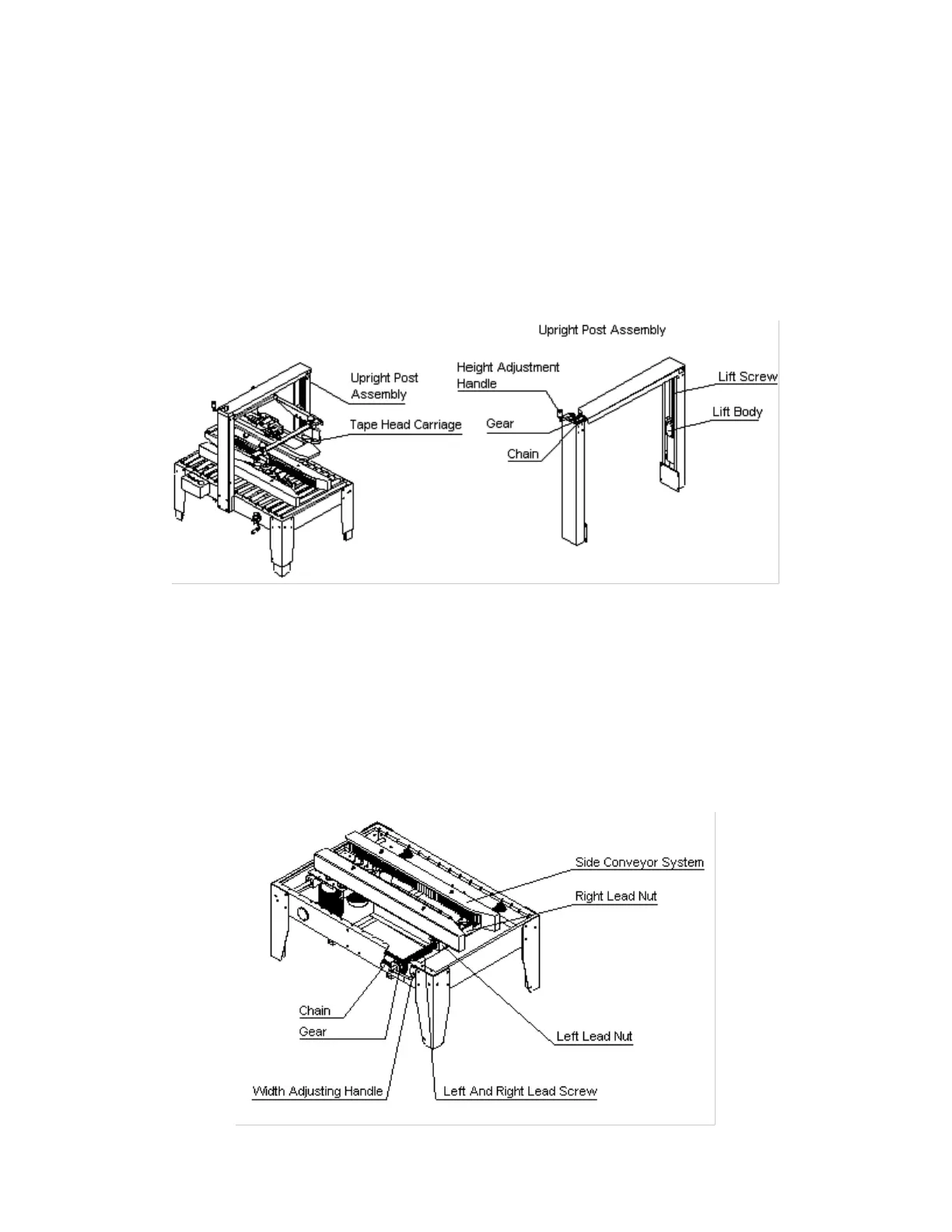

5.4 Carriage Height Adjustment
Rotate the height adjustment handle by hand to adjust the carriage height.
Rotate the handle clockwise to move the carriage up and counter clockwise to move the carriage
down.
5.5 Conveyor Width Adjustment
Rotate the width adjustment handle by hand to adjust the conveyor width. Rotate the handle
clockwise to decrease the distance between the conveyors. Rotate the handle counter clockwise to
increase the distance between the handles.
