Eagle T100 - Front Tape Roller Assembly

- 20 -
6. Illustrations & Parts List

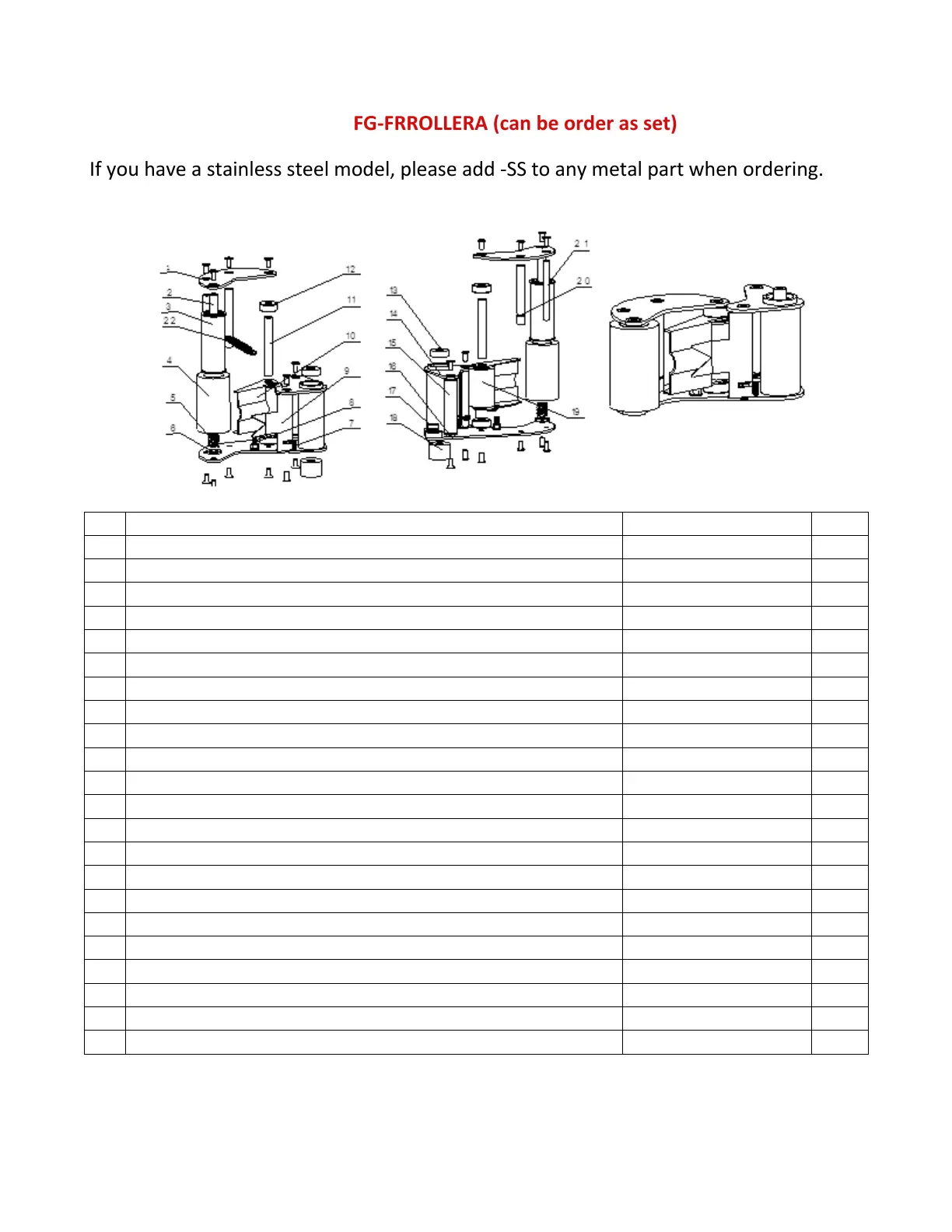

6.7 Front Tape Roller Assembly - FG-FRROLLERA (can be order as set)
Description Part Number Qty
1 Front Plate - Must specify Left or Right
FJ-01-09L or FJ-01-09R
1
2 Shaft
FJ-00-08
1
3 Roller Shaft
FJ-E-38-01
1
4 Front Rubber Roller
FJ-E-41-01
1
5 Press Spring
FJ-11-00
1
6 Gasket
FJ-50-100
1
7 Button Head Screw Cap
M4x12
1
8 Phillips Flat Head Screw
M5x15FHSC
1
9 Press Tape Board
FJ-01-05
1
10 Press Board
FJ-01-08
1
11 Shaft
FJ-00-10
1
12 Axle Sleeve
FJ-02-02
2
13 Bearing
6900Z
1
14 Front Claw
FJ-50-00
1
15 Guide Tape Wheel Assembly
FJ-02-13A
1
16 Axle Sleeve
FJ-02-14
1
17 Bearing
688Z
1
18 Bearing
HK2020
1
19 Axle Sleeve
FJ-02-10
1
20 Shaft
FJ-00-11
1
21 Shaft
FJ-00-09
1
22 Pulling Spring
FJ-H-00
1
If you have a stainless steel model, please add -SS to any metal part when ordering.
