Eagle T100 - Tape Head Carriage

To Next Page

To Previous Page

- 14 -

6. Illustrations & Parts List

6.3 Tape Head Carriage

Description Part Number Qty

1 Bracket - Must specify Left or Right

FJG-1A-130L or FJG-1A-130R

2 Motor Support FJ-1A-120 1

3 Retaining Plate FJ-1A-703 1

4 Brush Support FJ-1A-701 1

5 Support Bars* 2

6 Supporting Shaft FJ-1-440 1

7 Shaft FJ-3A-807 1

8 Spring Holder FJ-3A-808 1

9 Fixed Block FJG-1A-127 1

10 Compression Spring FJ-1A-930 1

11 Sliding Block FJ-3A-806 1

12 Switch Stop/Pointer FJ-3A-450 1

FJ-1AW-131

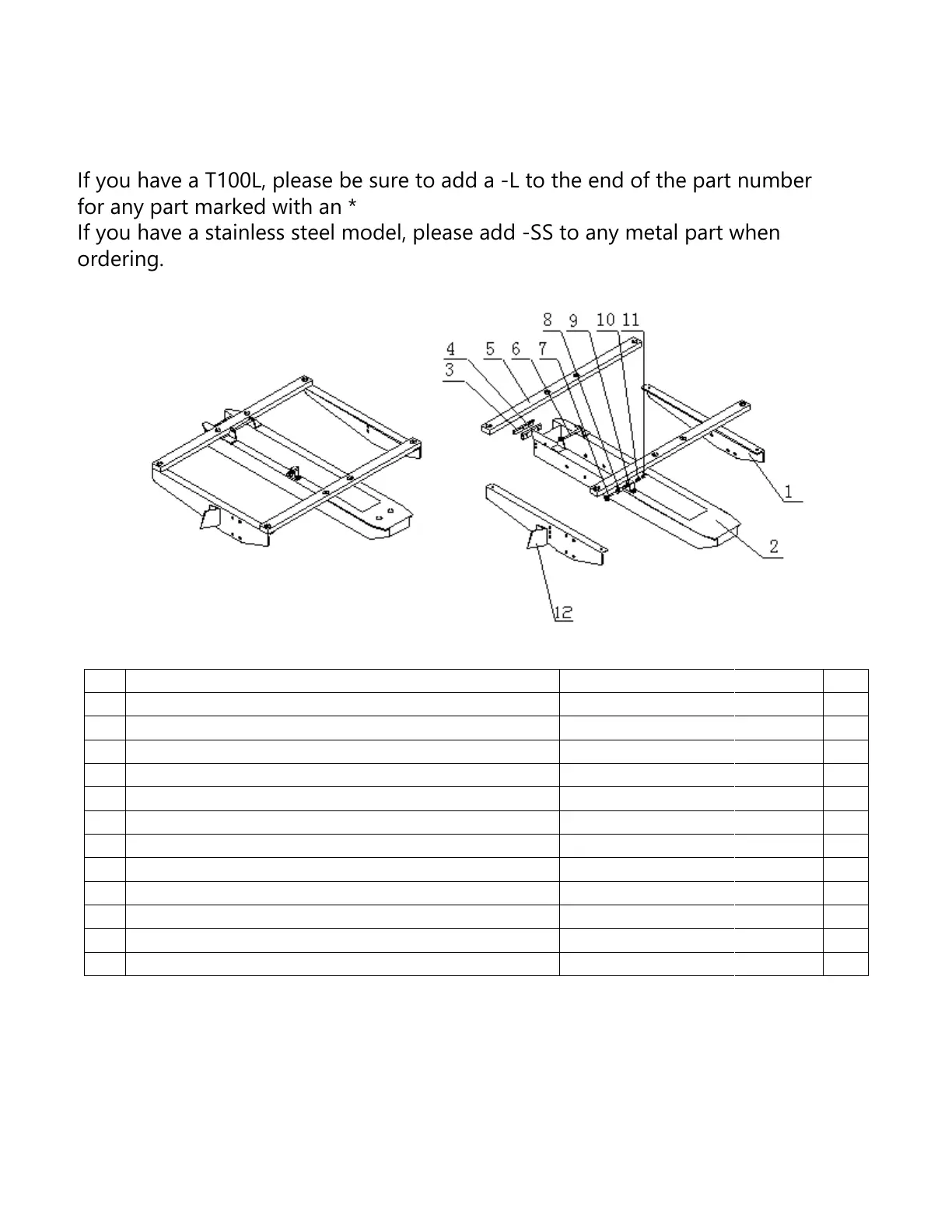

If you have a T100L, please be sure to add a -L to the end of the part number

for any part marked with an *

If you have a stainless steel model, please add -SS to any metal part when

ordering.
