Eagle T100 - Tape Head Assembly; Guide Tape Wheel Assembly

- 24 -
6. Illustrations & Parts List
If you have a stainless steel model, please add -SS to any metal part when ordering.

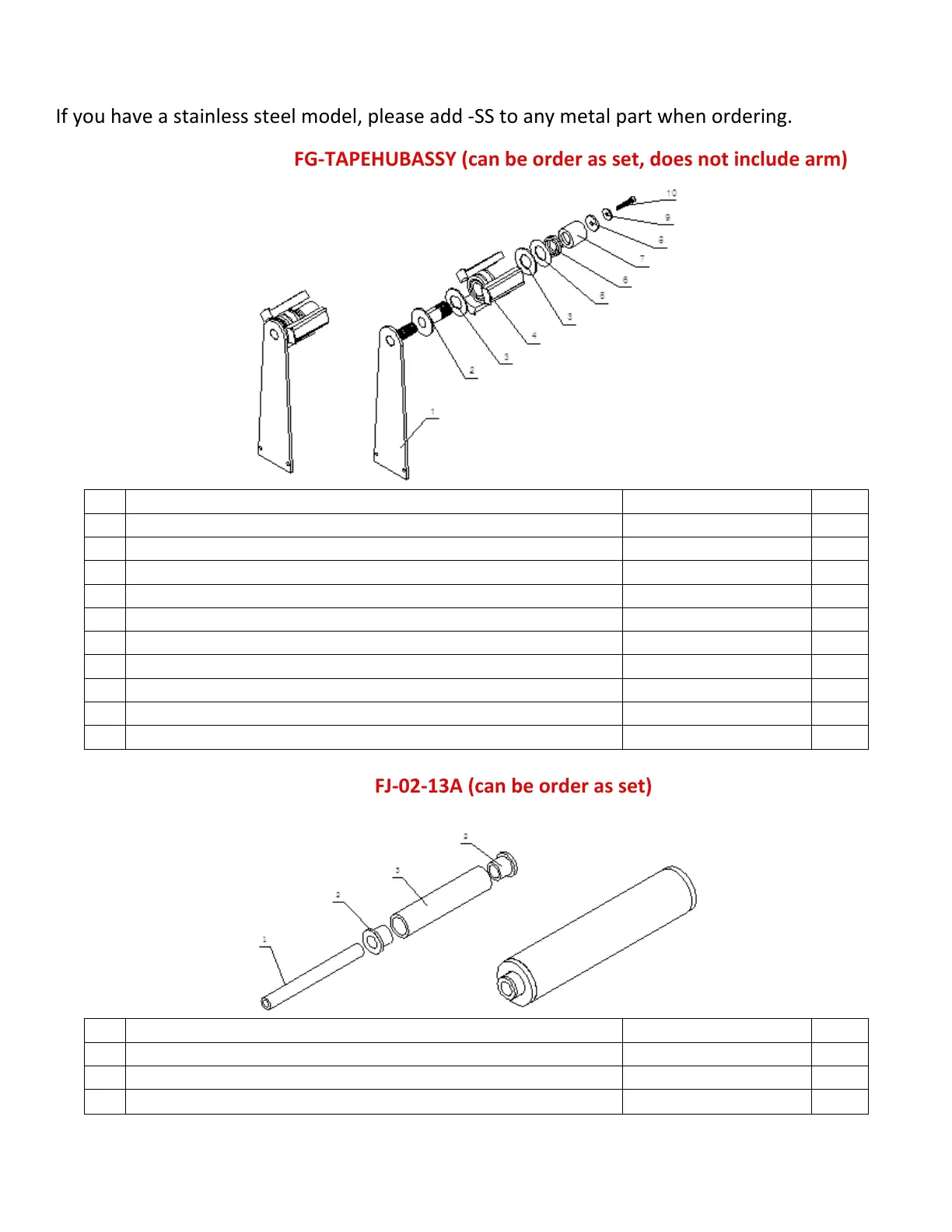

6.12 Tape Hub Assembly - FG-TAPEHUBASSY (can be order as set, does not include arm)
Description Part Number Qty
1 Tape Frame FJ-05-00 1
2 Axle Sleeve FJ-02-12 1
3 Anti Skid Washer FJ-05-01 2
4 Tape Wheel FJ-02-05-03 1
5 Gasket FJ-05-02 1
6 Press Spring FJ-H-08 1
7 Adjuster Shaft FJ-00-14 1
8 Bearing Bush FJ-02-08 1
9 M5 Lock Washer 1
10 Socket Head Cap Screw M5x40SHCS 1
6.13 Guide Tape Wheel Assembly - FJ-02-13A (can be order as set)
Description Part Number Qty
1 Shaft
FJ-00-09
1
2 Axle Sleeve FJ-02-14 2
3 Guide Tape Wheel
FJ-02-13
1
M5LOCKWASHER
