After drilling the holes, pass the o-ring over the antenna cable and press
it into the groove on the bottom of the antenna housing. Now attach the
antenna to the mounting surface, using 4mm screws and the supplied
lock washers. Route the cable to the Eagle View and the antenna installa-
tion is finished.
Magnet Mount
A magnet lets you temporarily mount the antenna on any ferrous metal
surface. (such as a car) To use the magnet, simply epoxy it to the bottom
of the antenna, using the epoxy supplied with your Eagle View. Carefully
follow the instructions on the epoxy package and apply it to the magnet.
Then carefully press the magnet to the bottom of the antenna housing.
After the epoxy cures (in about 30 minutes), the antenna is ready for use.

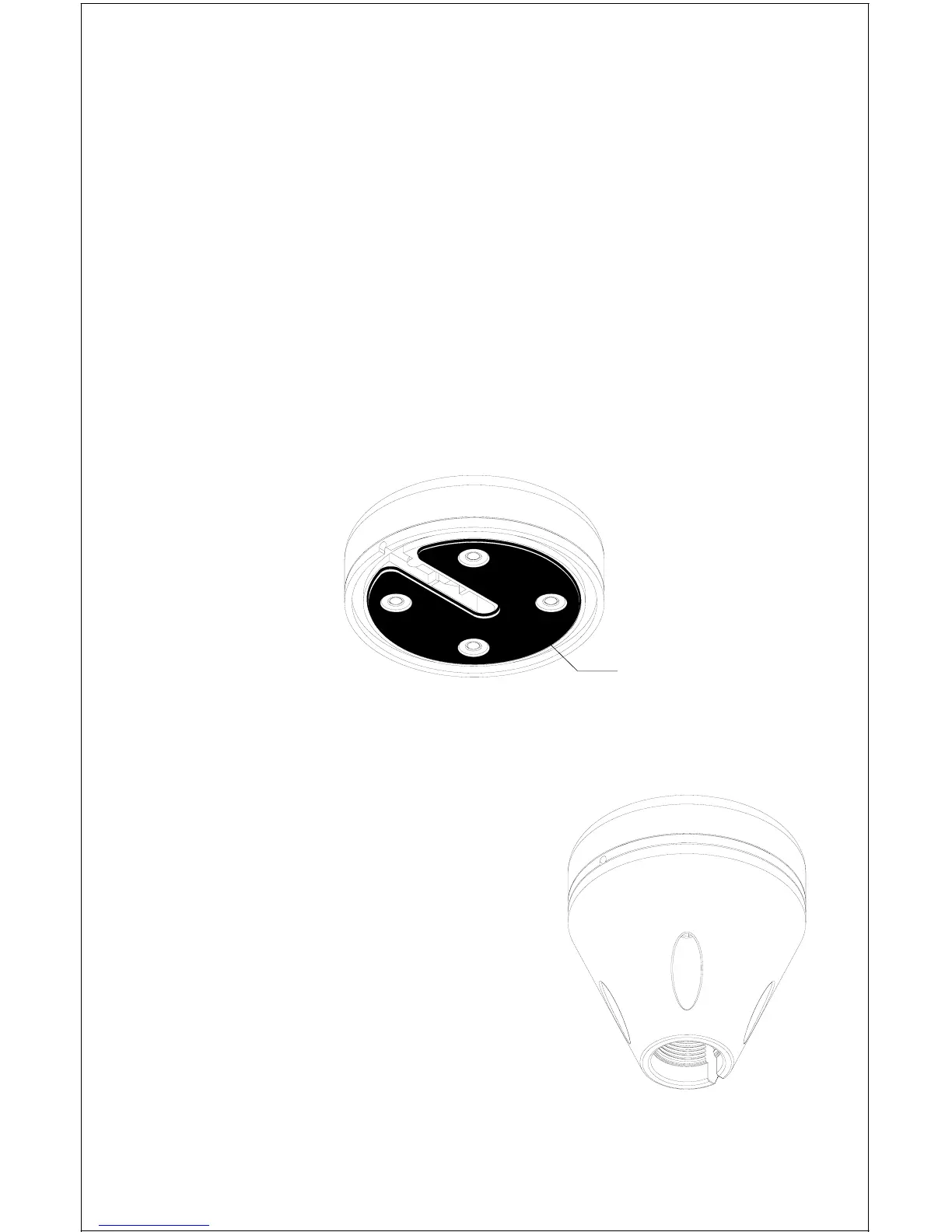

MAGNET
Pole Mount
The Eagle View’s antenna attaches to the
pole mount adapter with the supplied 4 mm
screws. You can route the antenna cable
through the slot in the side of the antenna,
or pass it down through the pole mount
adapter. A slot next to the threads in the
pole mount adapter places the cable next
to the pole where it can be easily routed
down the pole to the Eagle View. The
threads on the pole mount adapter accept
a standard marine antenna mount.
POLE MOUNT
