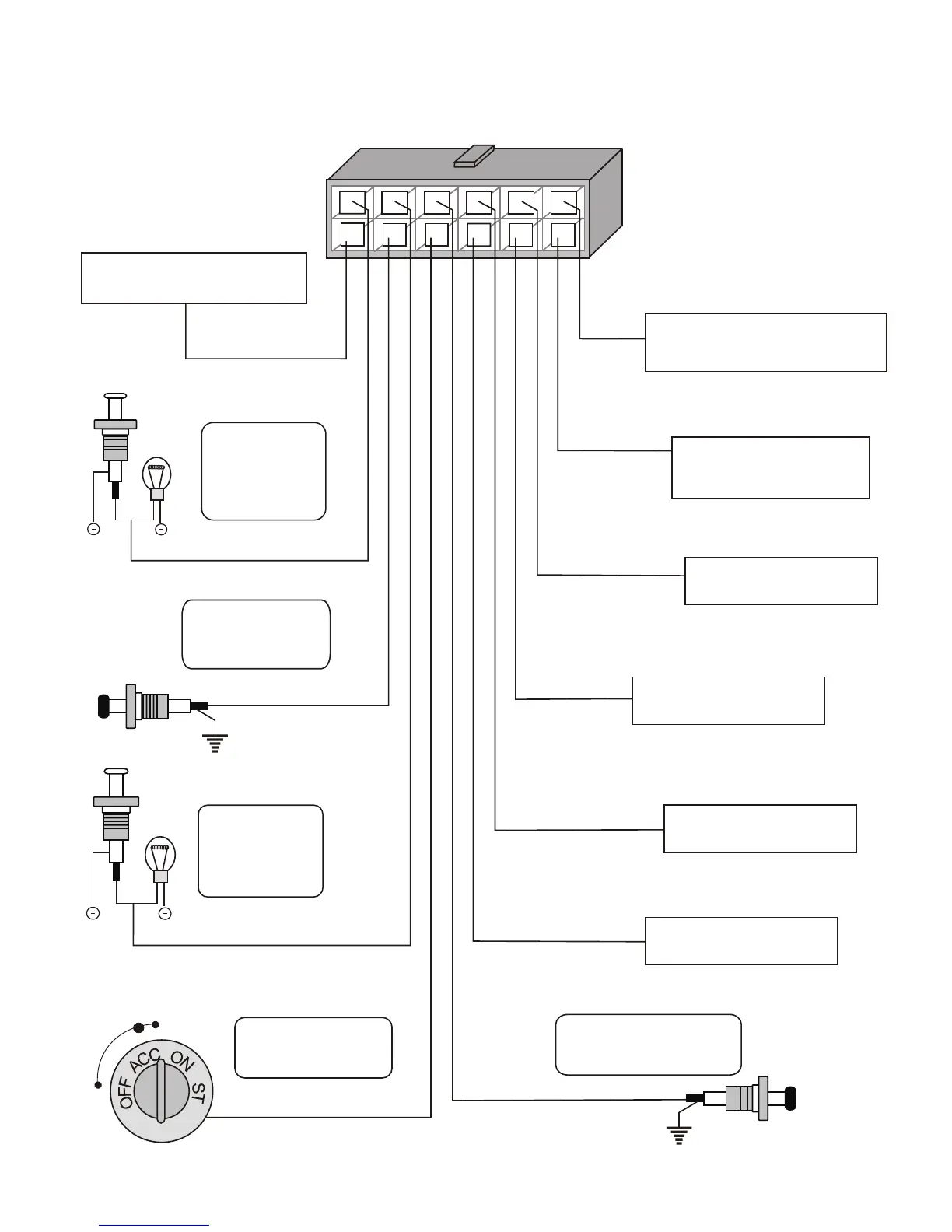

Eaglemaster E4 - H2 12-PIN CONNECTOR WIRING:

H2 12-PIN CONNECTOR WIRING:
(+) Red/black
(-) Blue/white
(+) Purple
(-) Green/white
(-) Orange/black
(-) negative pulsed when
disarmed output
Immobilizer-2
(+) Yellow
(-) Pink
Connect to
(-) Hood Pin Switch
(-)Gray/black
(-) Yellow/black
(-) White/black
(-) Gray
(-) Negative pulsed
Programme output
(-) Negative pulsed
Programme output
(-) Negative pulsed
Programme output
(+) positive Programme
input
(-) Negative pulsed
Programme output
(-) Orange
(-) Negative pulsed
when Armed output
Killer-1
ACC(+)
Connect (+) 12V
Ignition switch
Connect to
Existing (-)
Negative
Door Switch
DOOR(-)
Connect to (-)
negative trunk
pin switch
DOOR(+)
Connect to
Existing (+)
Positive
Door Switch
CH-2
CH-3
CH-4
CH-5
