EasyIO FC20 User Reference v1.3

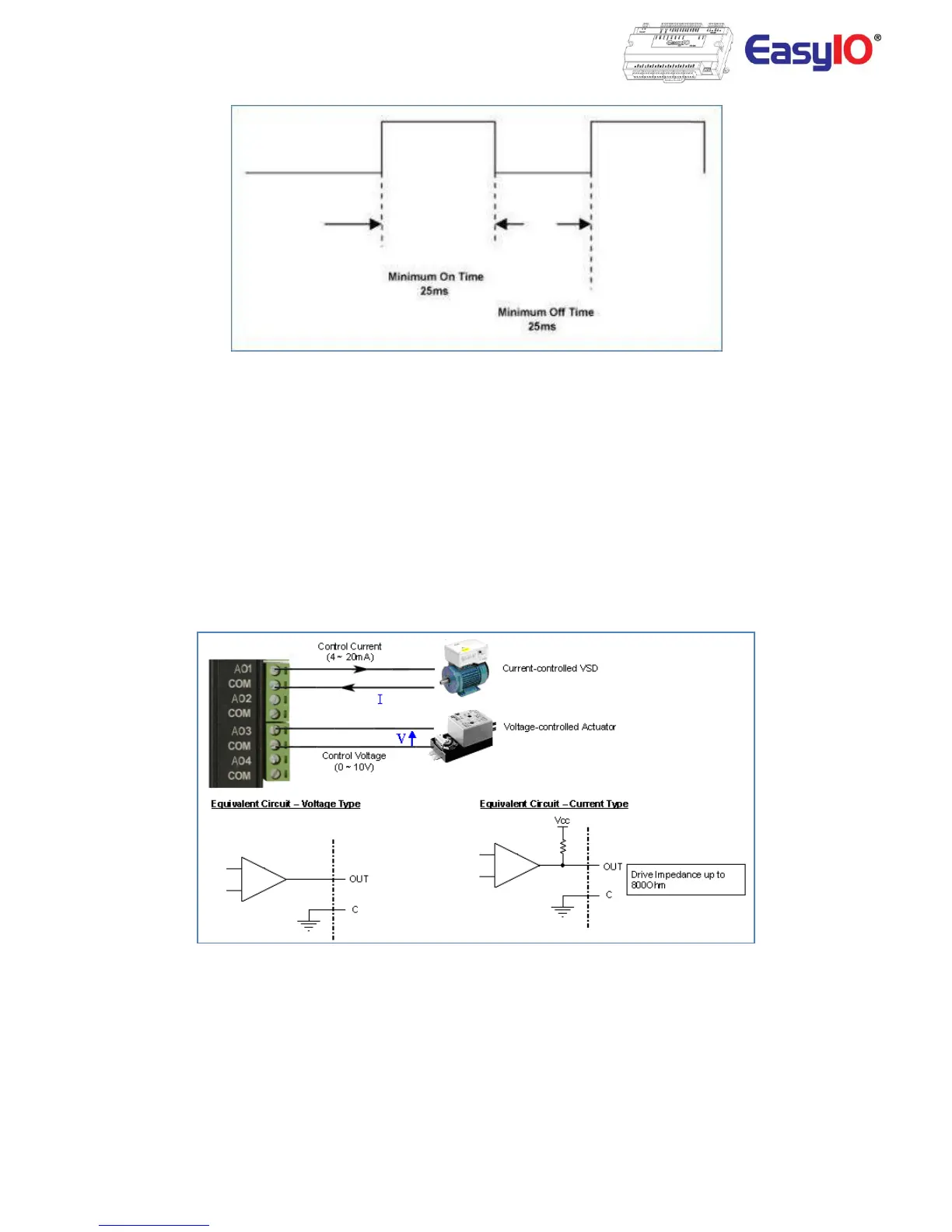

Universal Input as Pulse Input specifications, Max 20Hz
Analog Output Connection
EasyIO FC-20 has four Analog Output connections. Each Analog Output can be configured to drive voltage
or current output via hardware jumper setting and internal register settings.
The working range for voltage is 0 – 10V and for current either 0 – 20mA or 4 – 20mA. For current
transmitter, the circuit able to drive load impedance up to 800 ohm which is ideal for long wire
connection (up to 500 meter wire length).
Analog Output Connection
