EasyIO FC 20 User Manual

EasyIO FC20 User Reference v1.3
Digital Output Wiring Connection
EasyIO FC-20 has four general purpose isolated digital output connections (relay output). Each relay
output able to drive up to 1A 30VDC/ 48VAC load.
It does not output voltage or current. It is a dry relay contact.

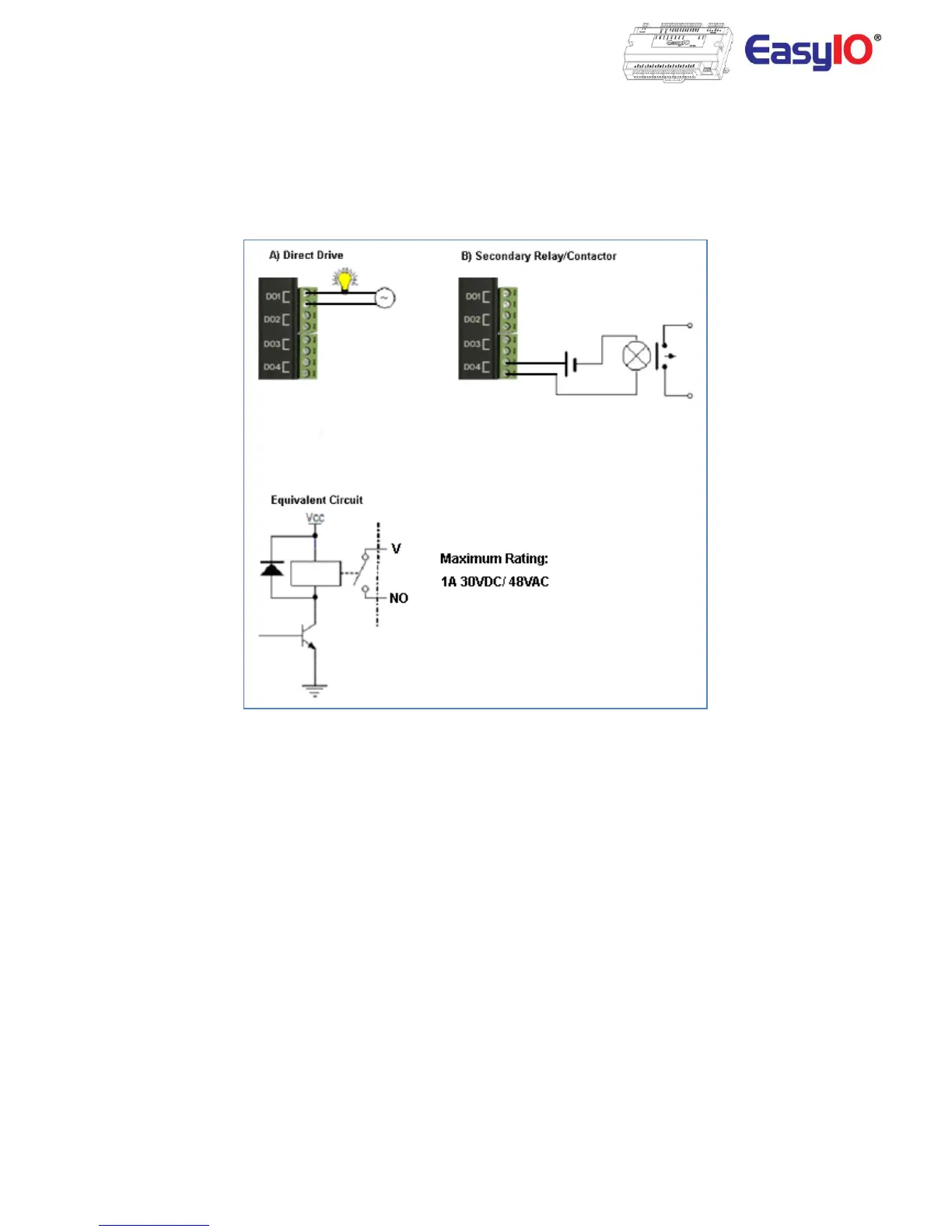

Digital Output Connection

EasyIO FC 20 Specifications

General

Brand	EasyIO
Model	FC 20
Category	Controller
Language	English
