Digital Output Wiring Connection
EasyIO FW Series digital output is for general purpose isolated digital output connections (relay output).
Pilot Duty rating is as below (Pilot Duty);
 24 VAC , 2.0A 
 24 VDC , 2.0A 
Digital Output
2 Channels – FW-14 only
Type
Relay Contacts, SPST NO, 48VA at 24VAC,
It does not output voltage or current. It is a dry relay contact.

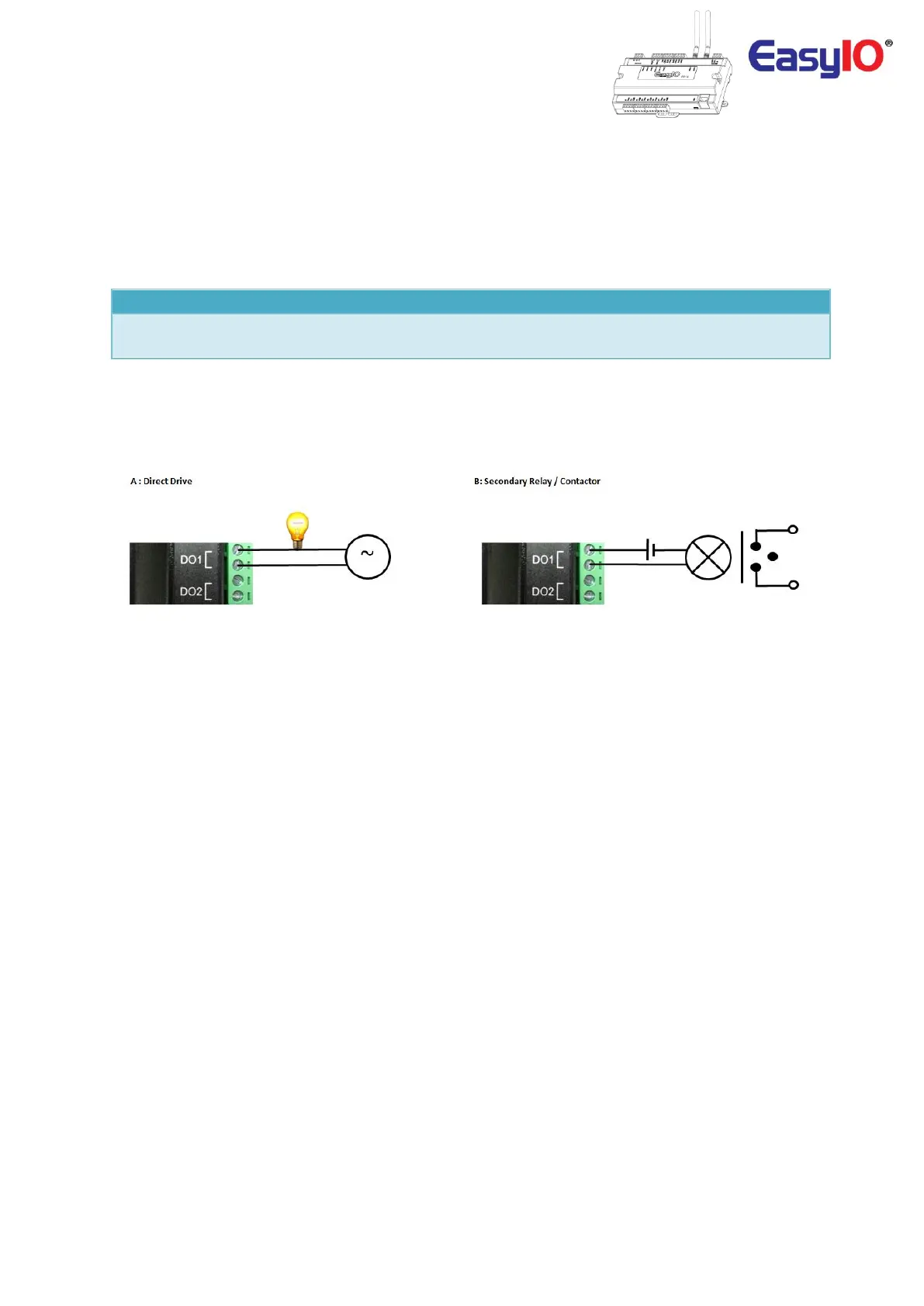

Digital Output Connection
