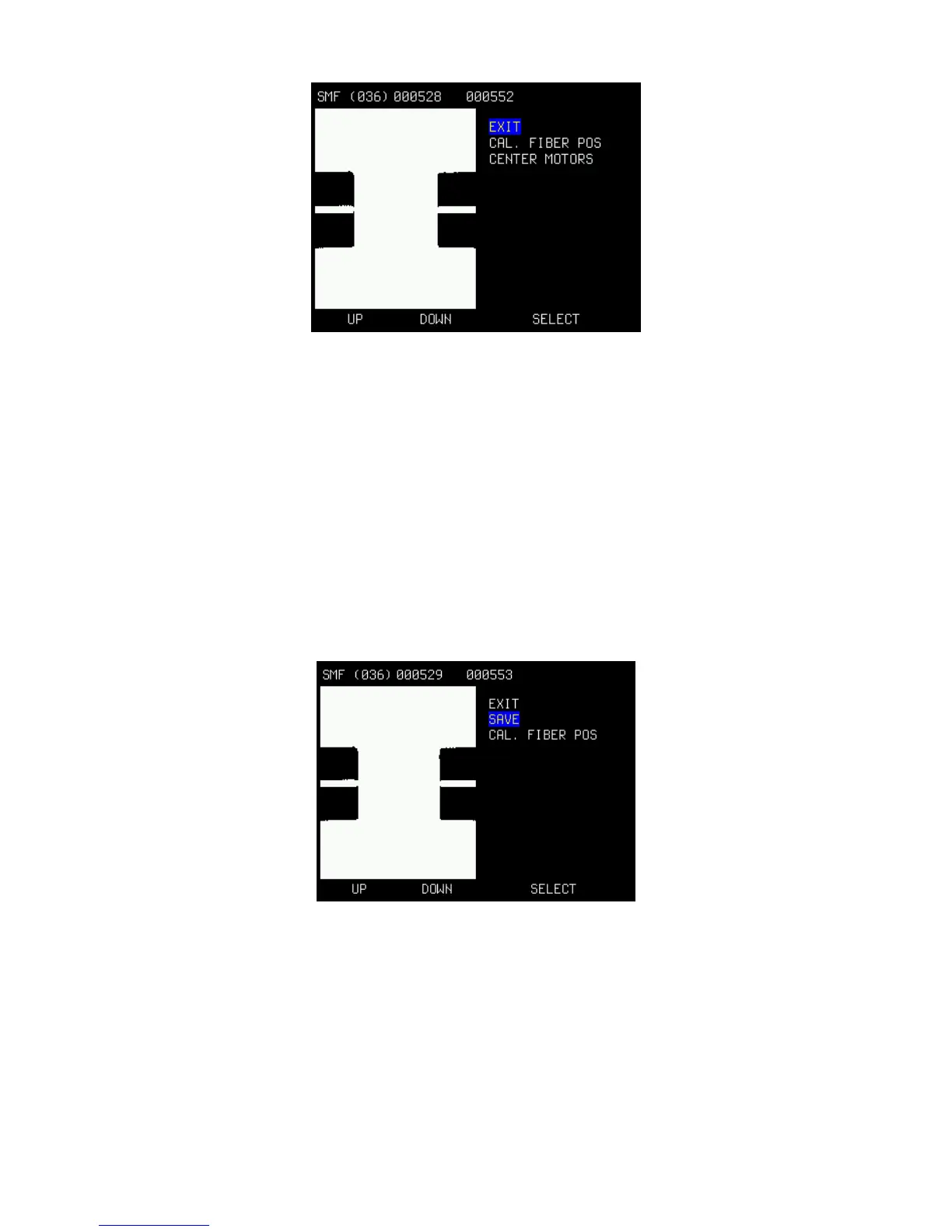

The numbers shown at the top of display (in this picture 528 and 552) shows
the motor positions. This position should be between 500 and 750. If not then
the small screws in the wagons needs to be adjusted with an 0.9mm Allen
key. This can happen if the cleaver is changed. To make this easier to adjust
You can select CENTER MOTORS. Motors will then be positioned at 500 and
two green squares is shown. The screws should be adjusted so that the
fibers are as long as the green box or slightly longer. After this adjustment do
a CAL. FIBER POS to let the splicer adjust to the new position and then
verify that the motor positions are between 500 and 750.
If the fibers are visible and in the correct position like in the picture
below then this new position shall be saved.
Save by pressing the large button (SELECT).
ELECTRODES
ADJUST
Automatic guide for adjustment of the electrodes. Please see: Changing
and adjusting the electrodes below.
ELEC. CHANGED
Use this function to reset the splice-counter when the electrodes have
been replaced. The electrodes are made to last some 4500-5000 splices.
11
