Page 7
ENGLISH

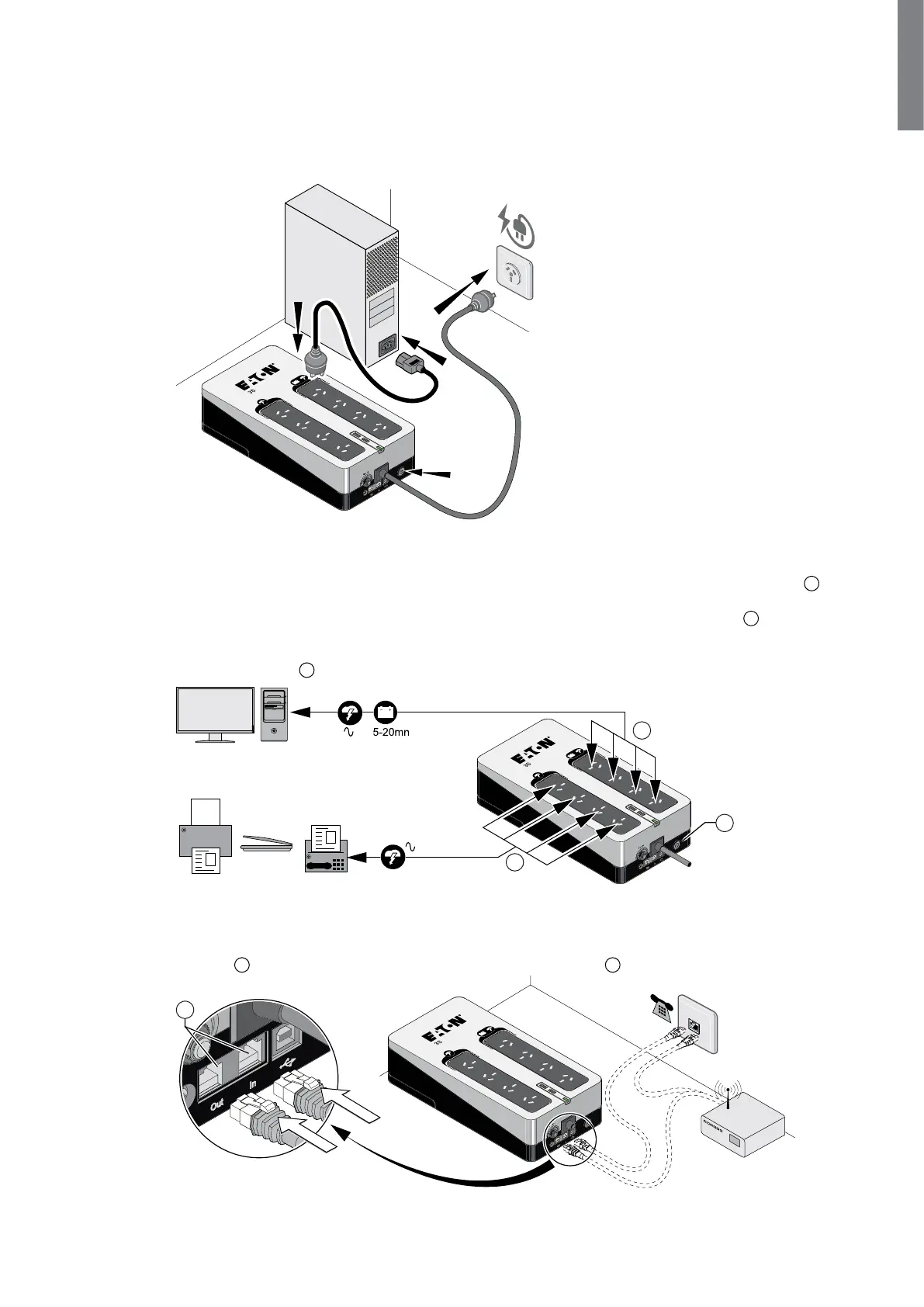

4. Connection
4.1 Power supply cord / socket
Connect the UPS to the AC-power source through a wall outlet equipped with an earth connector, using the
attached cord for a UPS with FR / DIN sockets or the supply cord of your computer for a UPS with IEC sockets.
OFF
OFF
4.2 Protected outlets / Backup & Protected outlets
Plug critical equipment (computer, monitor, modem, etc.) to the backup & protected outlets
2
providing
battery backup power and surge protection, taking care not to exceed the rated current indicated in amperes.
Other devices (printer, scanner, fax, etc.) can be connected to the protected outlets
1
that provide surge
protection only. The protected outlets are not backed up by battery power in the event of a power outage.
Equipment connected to these outlets is supplied as soon as the AC cord is plugged in. These are not affected
by ON/OFF button
9
.
2
1
4.3 Tel / xDSL surge protection (optional)
Protect your Tel / xDSL line using a RJ11 cable (not provided) from the wall phone plug to the Eaton 3S
“In”port
7
then connect your device to the Eaton 3S “Out” port
7
.
7
614-09405-01 - 3S EMEA_EN
