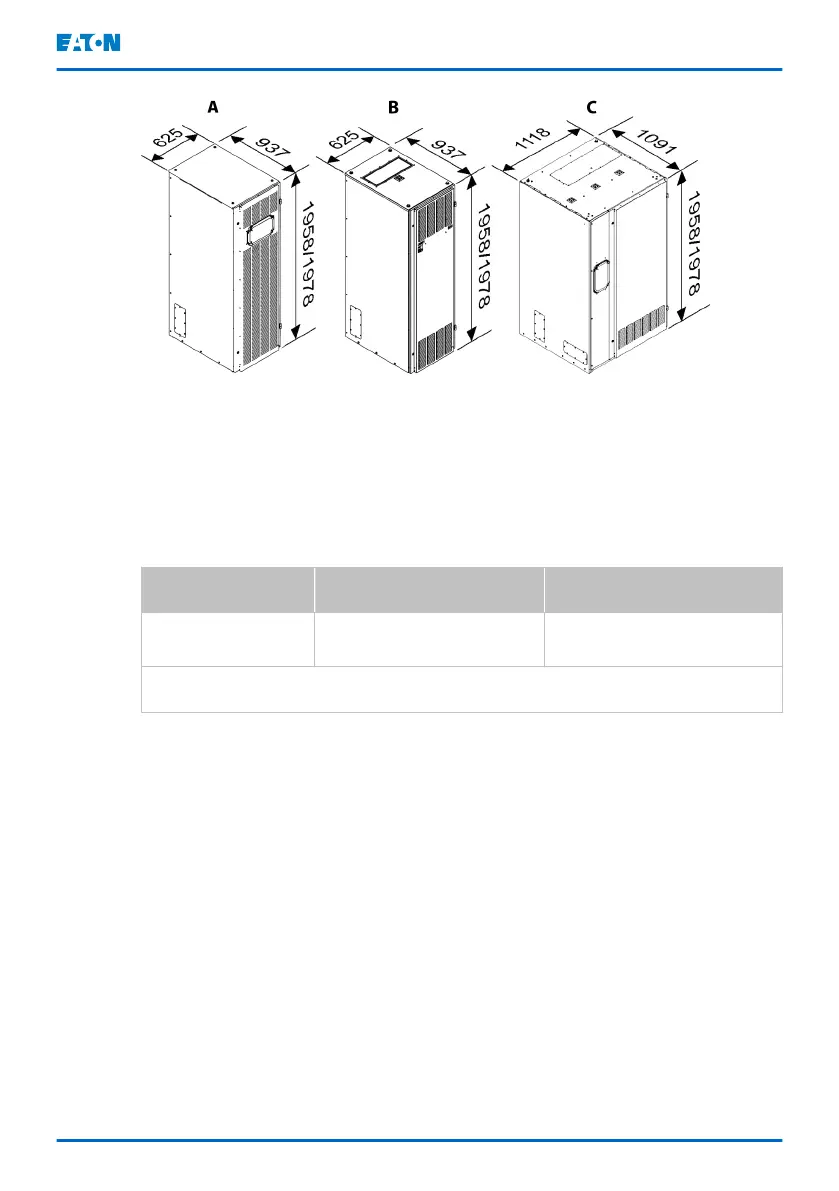

Figure 2. Accessory cabinet dimensions for IP23/33 models (height with casters / with
vibration dampers)
A
TFC-A C EBC-G
B EBC-F
Table 3: The dimensions of the IP54 cabinet
Dimensions (WxDxH)
mm
TFC-A and EBC-F EBC-G
IP54 cabinet
dimensions
625 x 987 x 1,958/1,978
1)
1,118 x 1,145 x 1,958/1,978
1)
1
) Height for models with casters: 1,958. Height for models with vibration dampers:
1,978.
