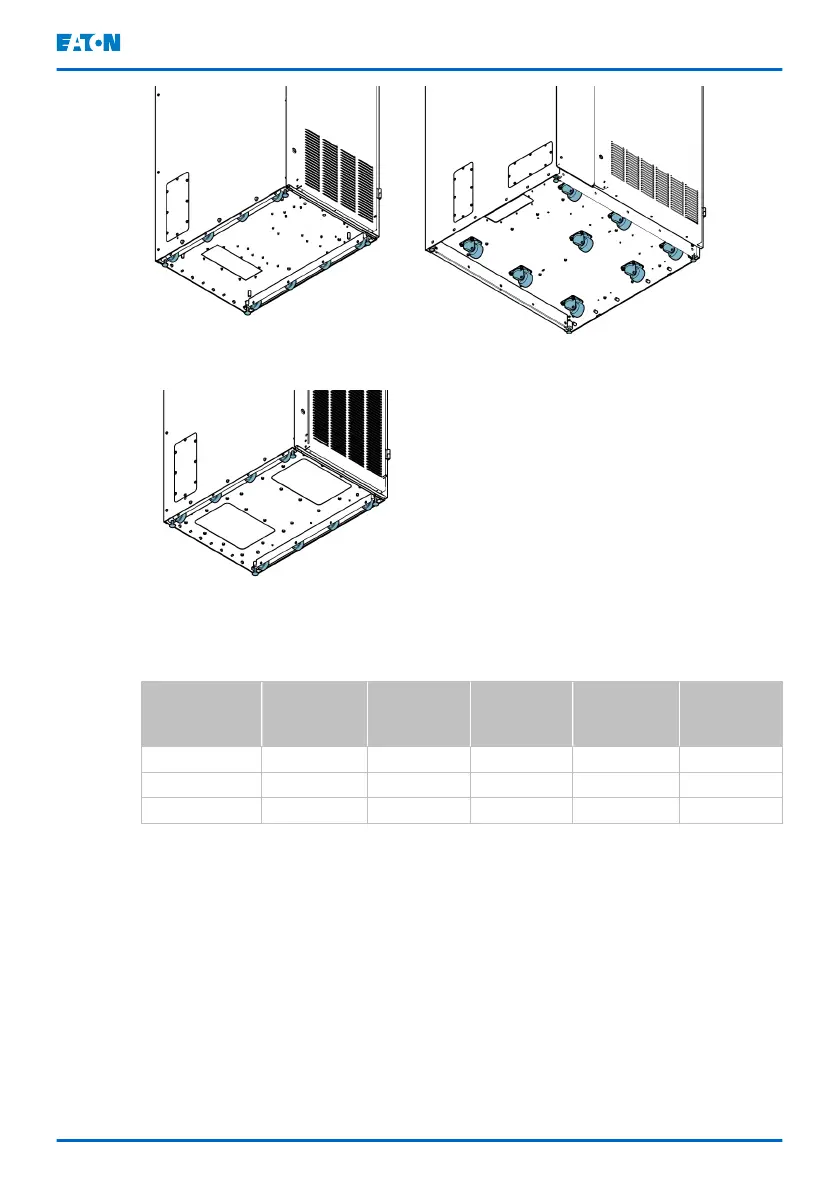

Figure 3. EBC-F and EBC-G casters
Figure 4. TFC-A casters
Table 4: The maximum weights of the accessory cabinets
Without bat-
teries
With batter-
ies
Shipping
weight with-
out batteries
Shipping
weight with
batteries
Floor load-
ing [kg/m
2
]
EBC-F 266 kg 970 kg 315 kg 1,030 kg 1,885
EBC-G 750 kg 2,560 kg 820 kg 2,700 kg 2,100
TFC-A 720 kg - 780 kg - 1,400
The battery cabinets use convection cooling to regulate internal component
temperature. Optional ventilation tubes and other adapters for cabinet ventilation
systems are also available. For more information, contact your Eaton sales
representative.
EBC-F:
• Air inlets are at the bottom in front and rear of the cabinet
• Air outlets are at the top in front and rear of the cabinet
EBC-G:
• Air inlet is at the bottom in front of the cabinet
Eaton 9PHD Accessory Cabinets TFC-A, EBC-F
and EBC-G User's and installation guide
©
Eaton Corporation plc 2022. All rights reserved. Document ID: P-164000538 19 (63)
