Eaton 9SX1500IR User Manual

Page 35
614-20306-00 - 9SX 0-6 KVA EMEA_EN

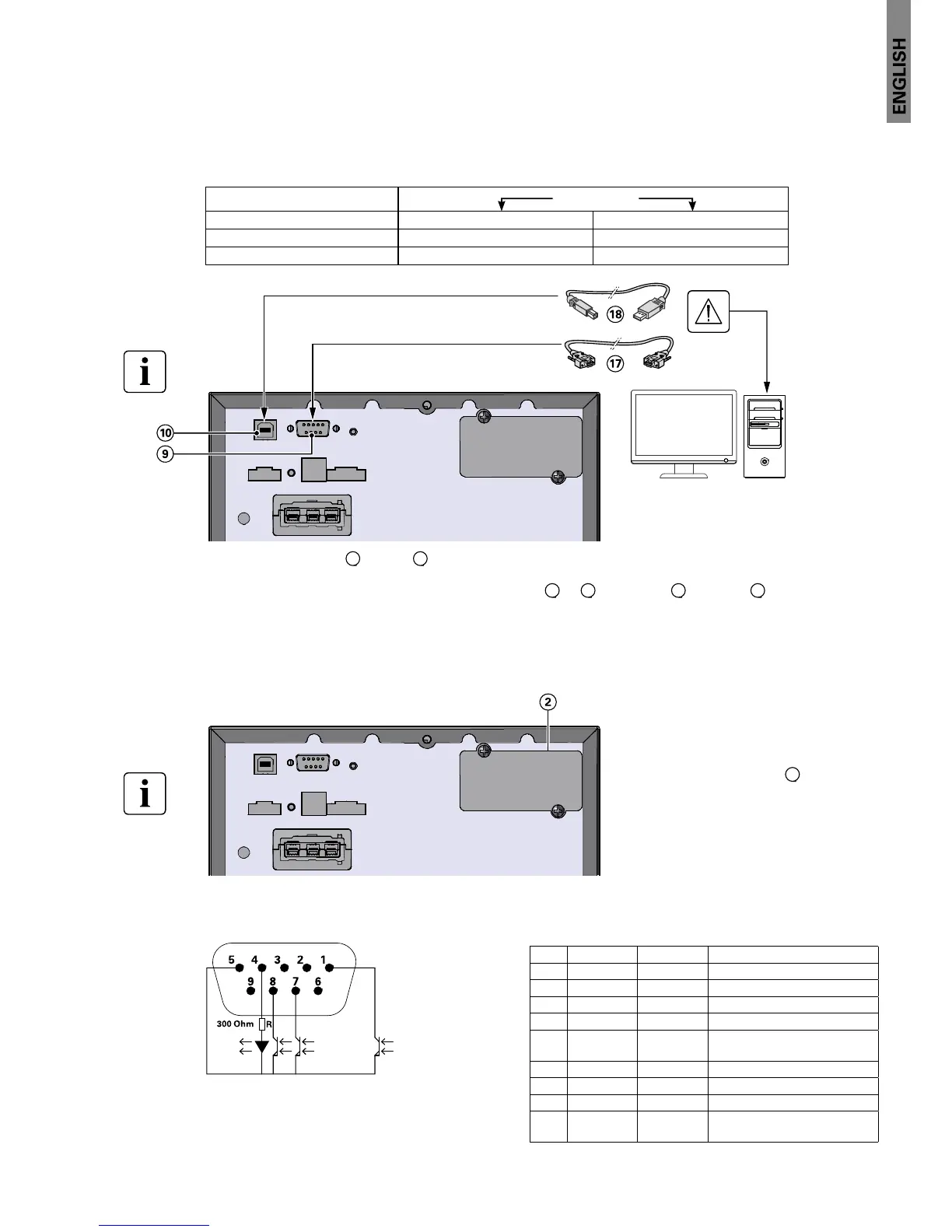

4. Interfaces and Communication
4.5 Communication ports
Connection of RS232 or USB communication port
Independent Multiplexed
Communication Bay USB RS-232
Any connectivity card Available Not in use
Any connectivity card Not in use Available
1. Connect the RS232
17
or USB
18
communication cable to the serial or USB port on the computer
equipment.
2. Connect the other end of the communication cable
17
or
18
to the USB
10
or RS232
9
communication
port on the UPS.
The UPS can now communicate with EATON power management software.
Installation of the communication cards (optional)
It is not necessary to shutdown the UPS
before installing a communication card.
1. Remove the slot cover
2
secured by
screws.
2. Insert the communication card in the
slot.
3. Secure the card cover with the 2 screws.
Characteristics of the contact RS232 communication port
Contact characteristics (optocoupler)
• Voltage: 48 V DC max
• Current: 25 mA max
Pin Signal Direction Function
1 Bat Low Output Low Battery Output
2 TxD Output Transmit to external device
3 RxD Input Receive from external device
4 I/P SIG Input -
5GNDS - Signal Common tied to
chassis
6 PNP Input Plug and Play
7
8BAT ModeOutput -
9 +5V Output Power supply for external
signal or options

Eaton 9SX1500IR Specifications

General

Power Rating	1500 VA
Output Power	1500 W
Warranty	2 years
Frequency Range	50/60 Hz ± 3 Hz
Transfer Time	0 ms
Input Voltage	200-240 V
Input Connection	IEC C14
Output Voltage	220/230/240 VAC
Battery Type	Sealed Lead-Acid
Efficiency	Up to 98%
Communications	USB, RS-232
Typical Recharge Time	4 hours to 90%
Communication Ports	RS-232, USB
Operating Temperature	0 to 40 °C
Storage Temperature	-15 to 45 °C
Relative Humidity	0 to 95% (non-condensing)
Topology	Double Conversion Online
Configuration	Tower
