Eaton Box 1 User Manual

3
Instructions and Operation P52899
Effective July 2019
Box 1 and Box 2 non-combination enclosed
control and C600M cover control kit wiring
EATON www.eaton.com

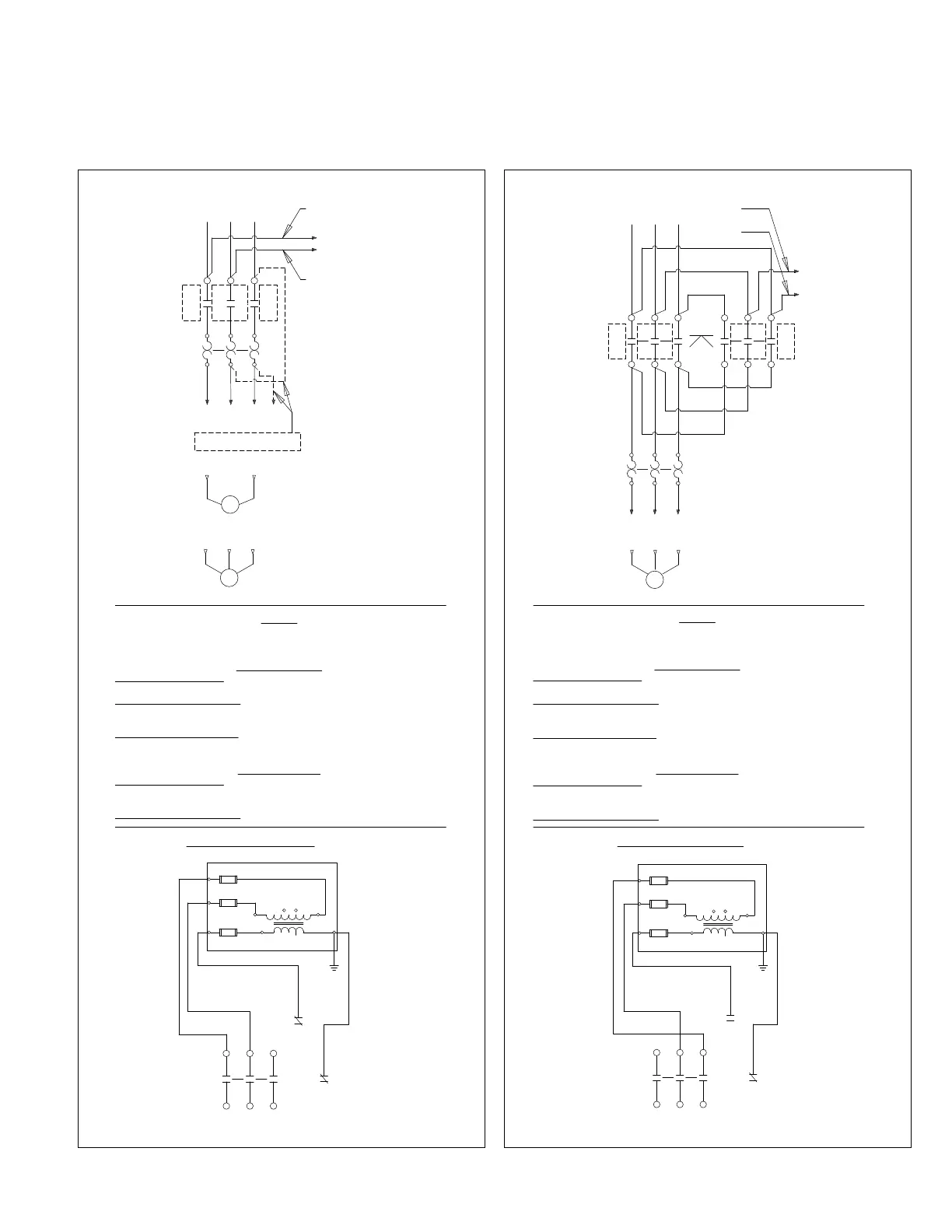

Wiring diagrams
Wiring diagrams: NEMA
®
and IEC starters and contactors
L1 R1T1
1/L1 3/L2 5/L3 M
OL
2/T1 4/T2 6/T3 4/T2
CONVERSION TO 1 PHASE-ADD
DOTTED LINE CONNECTIONS.
CONNECTIONS FOR NON-REVERSING STARTER
"C2"
"C1"
3 PHASE MOTOR
4/T2 6/T32/T1
1 PHASE MOTOR
2/T1
4/T2
6/T32/T1 4/T2
1/L1 3/L2 5/L3
1/L1
3/L2
1
H2
H3
X1
4
RESET
AUX
1/L1 3/L2 5/L3
H1
H4
XF
X2
95
96
62
61
M
OL
M
FUSIBLE CONTROL TRANSFORMER
PRIMARY
CONNECTIONS
SECONDARY
CONNECTIONS
CONNECTIONS FOR DUAL VOLTAGE RATED TRANSFORMER
SEE TRANSFORMER NAMEPLATE
CPT
G
CAUTION
READ AND FOLLOW INSTRUCTIONS PRIOR TO WIRING OR CONNECTING POWER! THIS PRODUCT
CAN BE FACTORY OR FIELD CONFIGURED FOR MULTIPLE CONTROL MODES OR CONTROL VOLTAGES.
CHECK NAMEPLATE FOR COIL VOLTAGE.
SEPARATE CONTROL POWER
FOR COIL VOLTAGES 120V AND LESS: CONNECT SEPARATE CONTROL LINES TO THE NO. 61 TERMINAL
ON THE TOP ADDER AUX. AND TO THE NO. 96 TERMINAL ON THE OVERLOAD RELAY.
FOR COIL VOLTAGES GREATER THAN 120V: REMOVE WIRE "C2" IF SUPPLIED. IF WIRE "C1" IS TERMINATED
ON L1, DISCONNECT FROM L1. CONNECT SEPARATE CONTROL LINES TO THE "C1" WIRE OR APPROPRIATE
PILOT DEVICE TERMINAL PER DIAGRAM AND TO THE NO. 96 TERMINAL ON THE OVERLOAD RELAY.
WHEN CONTROL TRANSFORMER INCLUDED: REMOVE WIRE “C2” IF SUPPLIED. IF WIRE “C1” IS TERMINATED ON L1,
DISCONNECT FROM L1. WIRE CPT AS SHOWN BELOW IN “FUSIBLE CONTROL TRANSFORMER”. CONNECT SECONDARY
TO THE APPROPRIATE PILOT DEVICE TERMINAL PER DIAGRAM AND TO THE NO.96 TERMINAL ON THE OVERLOAD RELAY.
COMMON CONTROL POWER
FOR COIL VOLTAGES 120V AND LESS: ADD WIRE "C2" IF NOT SUPPLIED. ADD CONNECTOR BETWEEN L1
TERMINAL AND THE NO. 61 TERMINAL ON THE TOP ADDER AUX. OR APPROPRIATE PILOT DEVICE TERMINAL
PER DIAGRAM.
FOR COIL VOLTAGES GREATER THAN 120V: ADD WIRE "C1" AND "C2" IF NOT SUPPLIED.
ote:N CPT optional.
L1 T1 T2 R1
F R
3 PHASE MOTOR
OL
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
1/L1
3/L2
2/T1 4/T2 6/T3
4/T2 6/T32/T1
CONNECTIONS FOR REVERSING STARTER
"C1"
"C2"
1
H2
H3
X1
4
RESET
AUX
1/L1 3/L2 5/L3
H1
H4
XF
X2
95
96
64
63
M
F
FUSIBLE CONTROL TRANSFORMER
PRIMARY
CONNECTIONS
SECONDARY
CONNECTIONS
CONNECTIONS FOR DUAL VOLTAGE RATED TRANSFORMER
SEE TRANSFORMER NAMEPLATE
CPT
G
OL
CAUTION
READ AND FOLLOW INSTRUCTIONS PRIOR TO WIRING OR CONNECTING POWER! THIS PRODUCT
CAN BE FACTORY OR FIELD CONFIGURED FOR MULTIPLE CONTROL MODES OR CONTROL VOLTAGES.
CHECK NAMEPLATE FOR COIL VOLTAGE.
SEPARATE CONTROL POWER
FOR COIL VOLTAGES 120V AND LESS: CONNECT SEPARATE CONTROL LINES TO THE NO. 63 OR NO. 61 TERMINAL
PER DIAGRAM ON THE TOP ADDER AUX. AND TO THE NO. 96 TERMINAL ON THE OVERLOAD RELAY.
FOR COIL VOLTAGES GREATER THAN 120V: REMOVE WIRE "C2" IF SUPPLIED. IF WIRE "C1" IS TERMINATED ON L1,
DISCONNECT FROM L1. CONNECT SEPARATE CONTROL LINES TO THE "C1" WIRE OR APPROPRIATE PILOT
DEVICE TERMINAL PER DIAGRAM AND TO THE NO. 96 TERMINAL ON THE OVERLOAD RELAY.
WHEN CONTROL TRANSFORMER INCLUDED: REMOVE WIRE " C2 " IF SUPPLIED. IF WIRE " C1 " IS TERMINATED ON L1,
DISCONNECT FROM L1. WIRE CPT AS SHOWN BELOW IN " FUSIBLE CONTROL TRANSFORMER " . CONNECT SECONDARY
TO THE APPROPRIATE PILOT DEVICE TERMINAL PER DIAGRAM AND TO THE NO.96 TERMINAL ON THE OVERLOAD RELAY.
COMMON CONTROL POWER
FOR COIL VOLTAGES 120V AND LESS: ADD WIRE "C2" IF NOT SUPPLIED. ADD CONNECTOR BETWEEN L1
TERMINAL AND THE NO. 61 OR NO. 63 TERMINAL PER DIAGRAM ON THE TOP ADDER AUX. OR APPROPRIATE
PILOT DEVICE TERMINAL PER DIAGRAM.
FOR COIL VOLTAGES GREATER THAN 120V: ADD WIRE "C1" AND "C2" IF NOT SUPPLIED.
ote:N CPT optional.
