SPECIFICATIONS
2

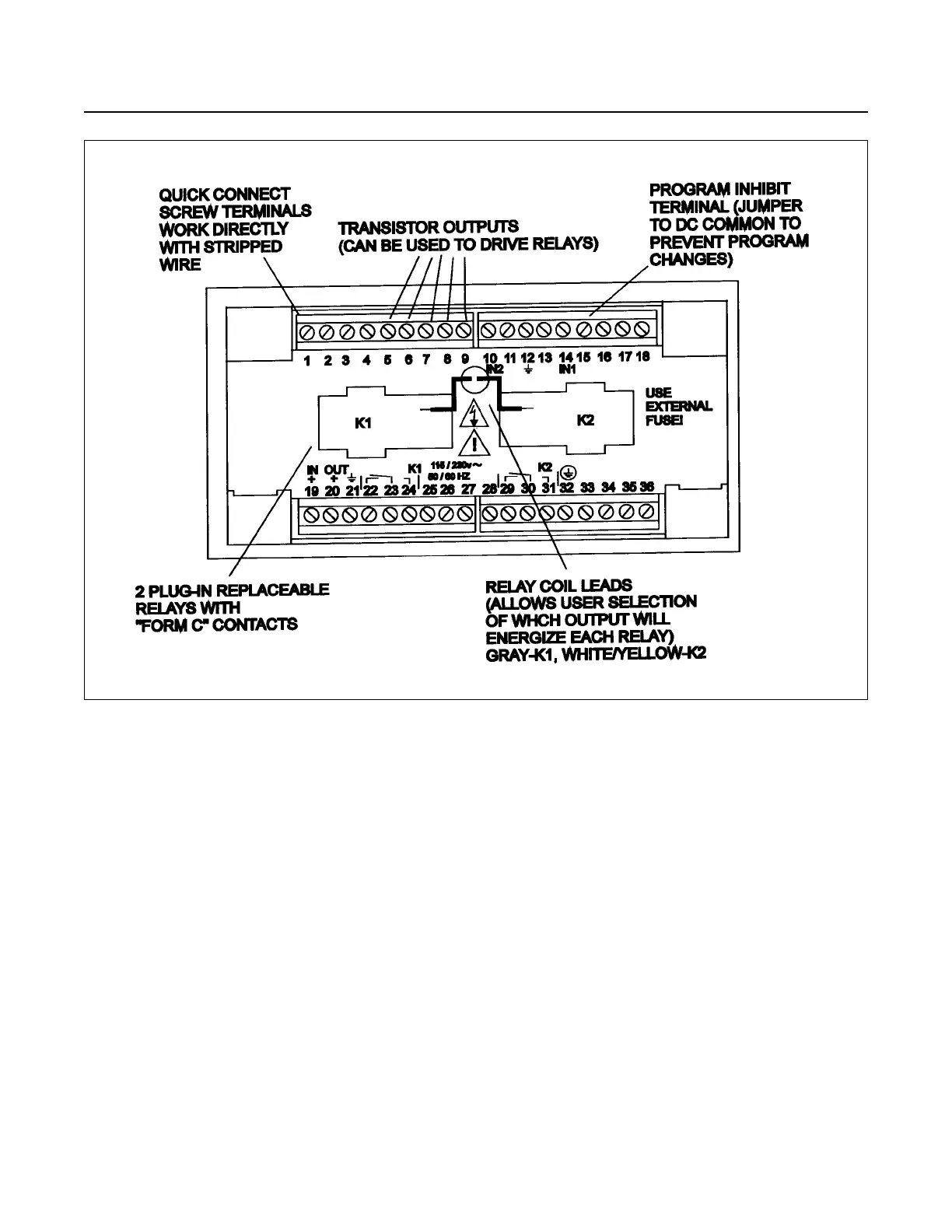

Figure 2. 5886 Rear Panel
The count input circuit provides the user with sev-
eral options:
1. Separate add and subtract inputs.
2. Count input with up/down control input.
3. Quadrature input.
4. Count doubling in any of the three above con-
figurations.
5. Count up input with count inhibit input.
6. High or low speed operation. Low speed oper-
ation provides maximum immunity to contact
bounce and noise.
The control is equipped with self-diagnostics which
test the internal memories for faults. Should a fault
be detected, an indication given on the display.
Displays and indicators are turned on in a pat-
terned sequence for visual examination.
