Eaton Cutler-Hammer Durant PRESIDENT 5886 Series User Manual

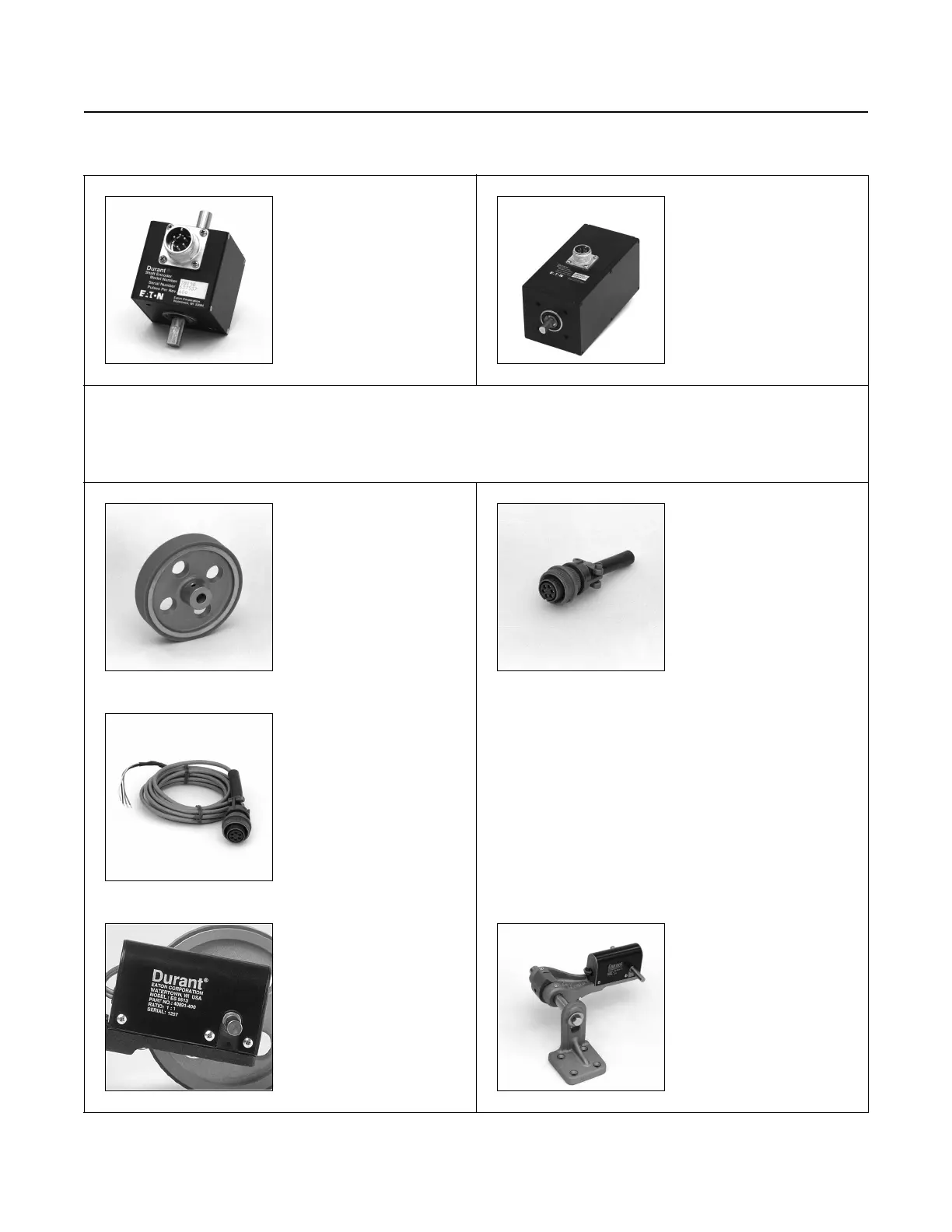

TRANSDUCERS, ACCESSORIES AND REPLACEMENT PARTS LIST
45
TRANSDUCERS
Medium Duty Shaft
Encoder
Single Channel - 38150-
XXX
Quadrature - 38151-XXX
Heavy Duty Shaft
Encoder
Single Channel - 48370-
XXX
Quadrature - 48371-XXX
60, 100, 120 and 600 PPR are stocked ratios for encoders
Any number from 001 to 600 is available.
Substitute the desired PPR for “XXX” in the part numbers.
12″
″″
″ Measuring Wheels
with 3/8″
″″
″ Bore
Aluminum Rimmed
20156-301
Rubber Rimmed
20154-301
Urethane Rimmed
20144-301
Connector for Encoder
29729-300
Connector with 10 Foot
Cable
29665-300
Rotary & Lineal
Contactor
ES-9513-RS
Mounting Bracket for ES-
9513-RS
40460-400
Shown with ES-9513-RS
and 12″ measuring wheel

Eaton Cutler-Hammer Durant PRESIDENT 5886 Series Specifications

General

Manufacturer	Eaton Cutler-Hammer
Enclosure Type	NEMA 1
Series	5886
Display	Digital
Reset	Manual
Termination	Screw
