I.B. 17555C
Effective November 1999
Page 5

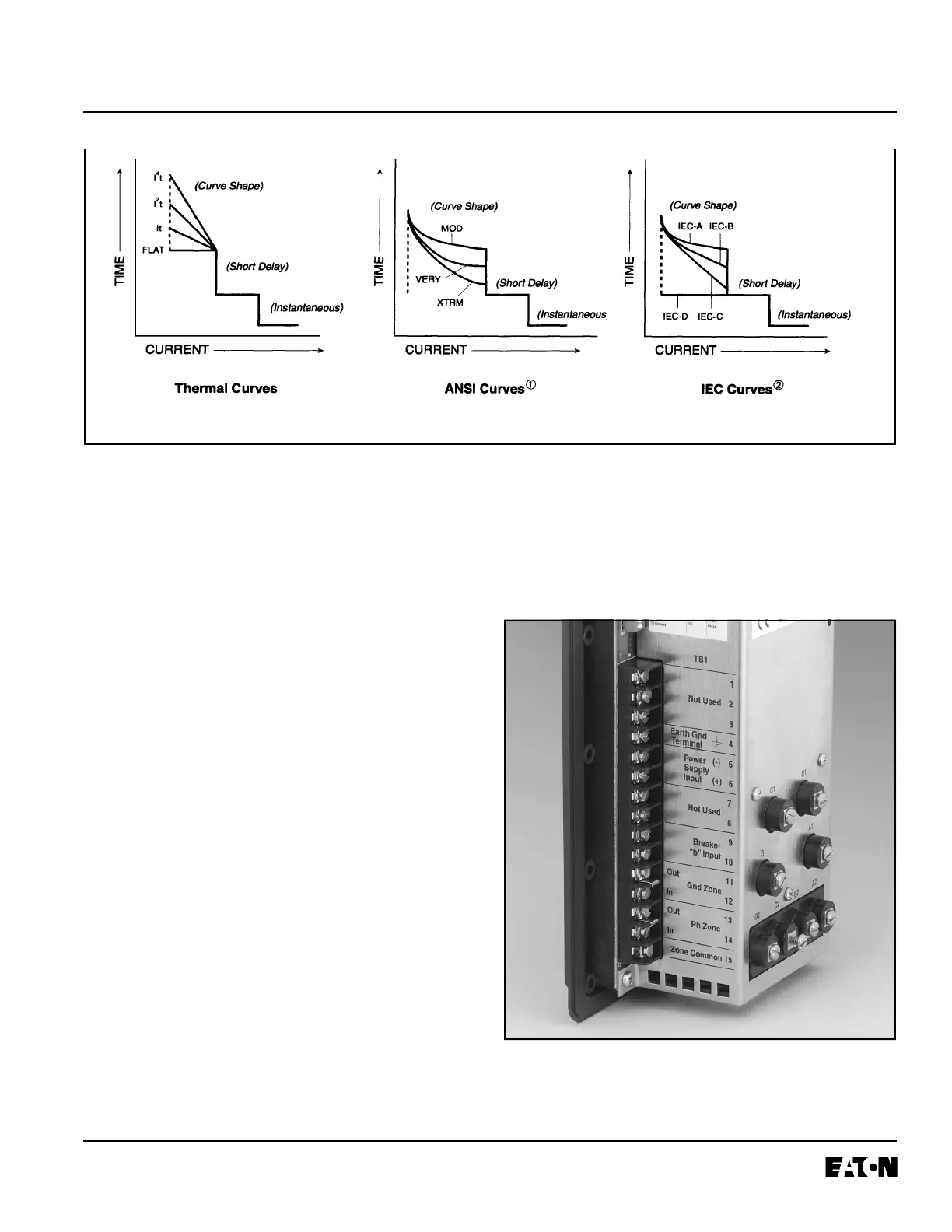

Fig. 1-4 Digitrip 3000 Curve Shape Possibilities
In addition to being able to provide a circuit breaker
“OPEN” or “CLOSED” status to the remote location, the
Digitrip 3000 displays and remotely transmits parame-
ters, such as:
Individual phase currents
Ground current
Maximum current for each phase and ground since last
reset (Amp. Demand)
Magnitude and phase of current causing trip
Cause of trip
Current transformer ratio
Existing setpoint settings
Software Version
The remote communications capability is made possible
by the Cutler-Hammer Integrated Communications
(INCOM) Chip and Protocol compatible with the Power-
Net Monitor and Control System. The protocol permits a
remote master computer to perform:
(1) Interrogation of relay data
(2) Execution of circuit breaker “Close” and “Trip”
commands
(3) “Reset” of the relay after a trip
(4) Downloading of settings
Reliable two-way communications can be provided over a
twisted pair communications network. The Digitrip 3000
Protective Relay is supplied with a built-in communica-
tions capability compatible with the Cutler-Hammer Pow-
erNet system.
1-4 STANDARDS
Digitrip 3000 Protective Relays are “Component Recog-
nized” by the Underwriters Laboratory, Inc.
®
under UL
File E154862. Refer to Section 2-3 UL Testing and Spec-
ification Summary for more information.
Fig. 1-5 Installed Jumpers in Place on Terminal Block
TB-1 Disabling the Zone Interlocking Feature
Curves shapes defined by ANSI C37.112.
IEC Curve shapes defined by IEC 255-3.
