7
MAU-00033 AE
ENGLISH

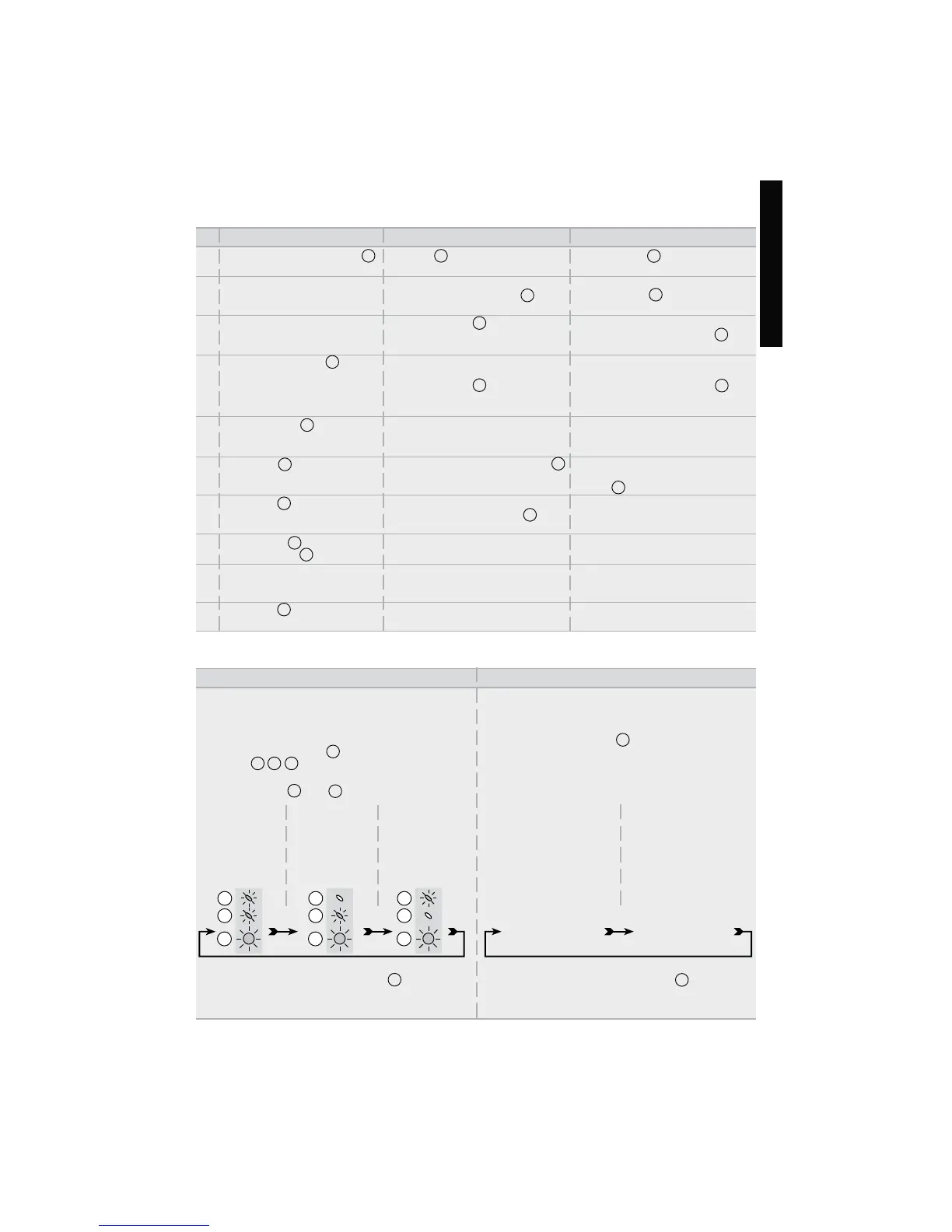

Troubleshooting (For further information, visit the eaton.com site or contact after-sales support.)
W The battery backup outlets 9
are not supplied with power.
W The connected devices are not
supplied when AC power fails.
W AC power is available, but the
UPS operates on battery power.
W The filtered outlets 8 are not
supplied.
W Green button 13 flashes
frequently and audio alarm
beeps.
W Red LED 12 is on and the
audio alarm beeps every 30
seconds.
W Red LED 11 is on and the
audio alarm beeps every 30
seconds.
W Green LED 10 is off and the
filtered outlets 8 are supplied.
W The telephone line is disturbed
or modem access is not
possible.
W Red LED 11 flashes.
Problem Diagnostic Solution
W Button 13 is not lighted on.
W The devices are not connected to
the battery backup outlets 9 .
W Circuit breaker 14 , located under
the UPS, has been tripped by an
overload on the UPS output.
W The wall outlet is not supplied.
W Circuit breaker 14 , located under
the UPS, has been tripped by an
overload on the UPS output.
W The UPS frequently operates on
battery power because the AC
power source is of poor quality.
W The UPS battery backup outlets 9
are overloaded.
W A fault has occurred on the UPS.
The battery backup outlets 9 are
no longer supplied.
W Surge protection is no longer
provided.
W Surge protection on the telephone
line is no longer provided.
W The battery has reached the end
of its service life.
W Press button 13 and check that it
turns green.
W Connect the devices to the battery
backup outlets 9 .
W Disconnect excess equipment
and reset the circuit breaker 14 by
pressing the corresponding button.
W Supply power to the wall outlet.
W Disconnect excess equipment
and reset the circuit breaker 14 by
pressing the corresponding button.
W Have the electrical installation
checked by a professional or use
another wall outlet.
W Disconnect excess equipment
connected to the battery backup
outlets 9 .
W Call after-sales support.
W Call after-sales support.
W Disconnect the telephone line from
the wall outlet.
W Call after-sales support.
W Have the battery replaced.
1
2
3
4
5
6
7
8
9
10
Advanced customizing of your UPS:
Sensitivity to variations of the AC power supply
W Only to be used if frequent switching to the UPS
battery due to large variations in the AC supply
voltage.
W Accessing the programming mode: with the device
switched off, press button 13 for 6 s and release it
once LEDs 11 12 13 have come on.
W Display of the 3 possible voltage ranges according to
the status of LEDs 11 and 12 :
Audio alarm
W Possibility of deactivating the audio alarm when the
UPS is operating on the battery.
W Accessing the programming mode: with the device
switched off, press button 13 for 11 s and release it
once the audio alarm sounds.
W Display of the 2 possible audio alarm modes:
Normal mode
(factory
configuration):
AC supply
between 165V
and 285V
Extended
mode:
AC supply
between 150V
and 285V
Sensitive mode:
AC supply
between 175V
and 285V
W Memorizing the mode: 10 s after the last press of the
button.
W Memorizing the mode: 5 s after the last press of the
button.
Normal mode (factory
configuration):
the UPS emits a beep
every 10 s when operating
on its battery.
Silent mode:
the UPS emits a single
beep when switching to
battery operation and
then remains silent.
Change from one mode to another by
successively pressing button 13 .
Change from one mode to another by
successively pressing button 13 .
11
13
12
11
13
12
11
13
12
Normal mode
activated:
programming
by continuous
beep.
Silent mode
activated:
programming
by a beep every
second.
