7
EATON CORPORATION www.eaton.com
Effective December 2010
IL01301037E

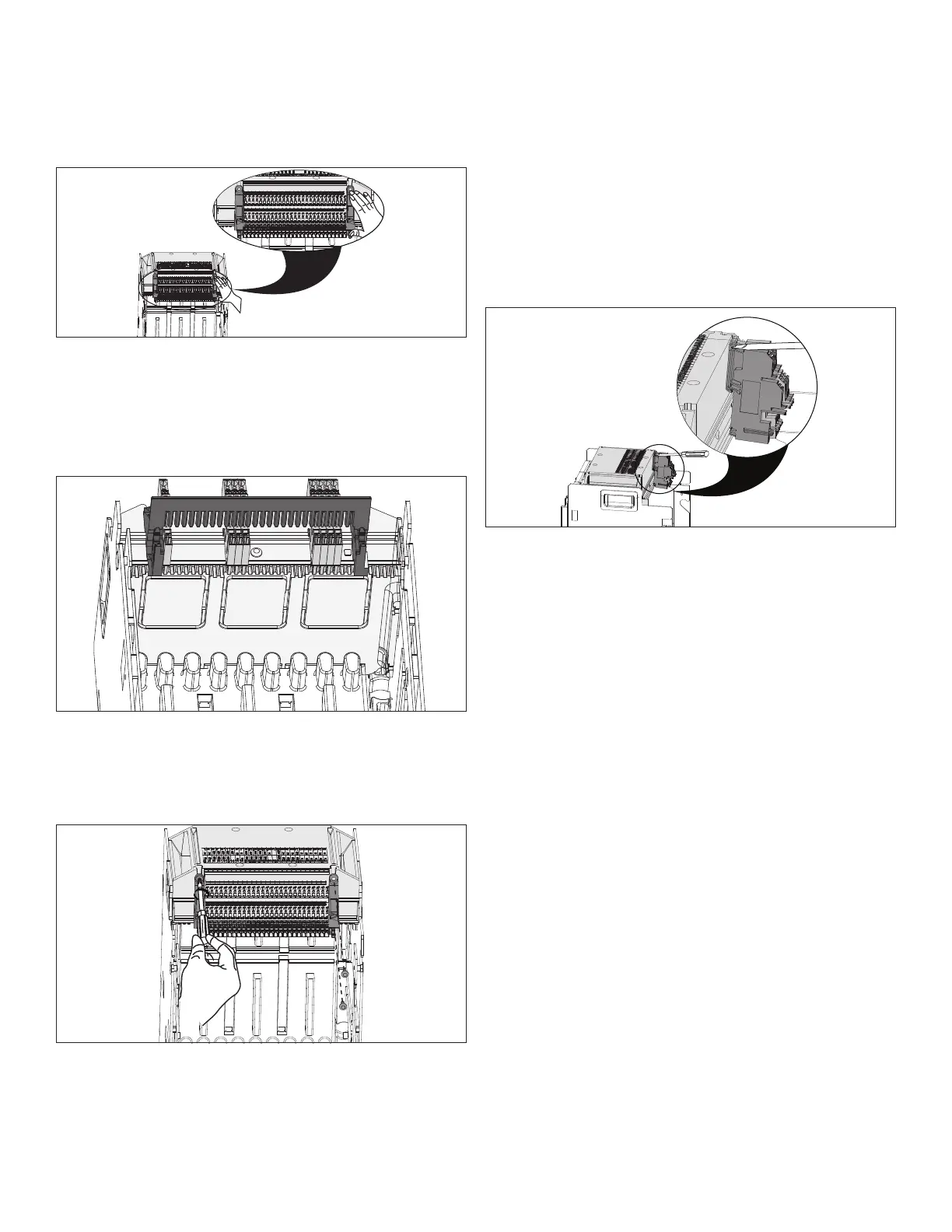

Figure 20. Step 7
Step 8: Once the terminal block alignment bracket is in place,
inspect it from the bottom to ensure that the teeth on the
bracket separate each individual terminal block. One installed
terminal block only should be visible between two teeth
when the alignment bracket is properly positioned.
Figure 21. Step 8
Step 9: Secure the terminal block alignment bracket using the
four screws removed previously in Step 2. Hand tighten the
four mounting screws to complete the installation process.
Figure 22. Step 9
Step 10: To remove already mounted terminal blocks, first
remove the terminal block alignment bracket by performing
Steps 2 and 3 in this section.
Step 11: Remove any terminal block by inserting a small
screwdriver in recessed area in the top front of the terminal
block as shown, and gently pry down to release and remove
the block from the DIN rail.
Figure 23. Step 11
Step 12: After all terminal blocks to be removed are removed,
perform Steps 7, 8, and 9 in this section to complete the
removal process.
