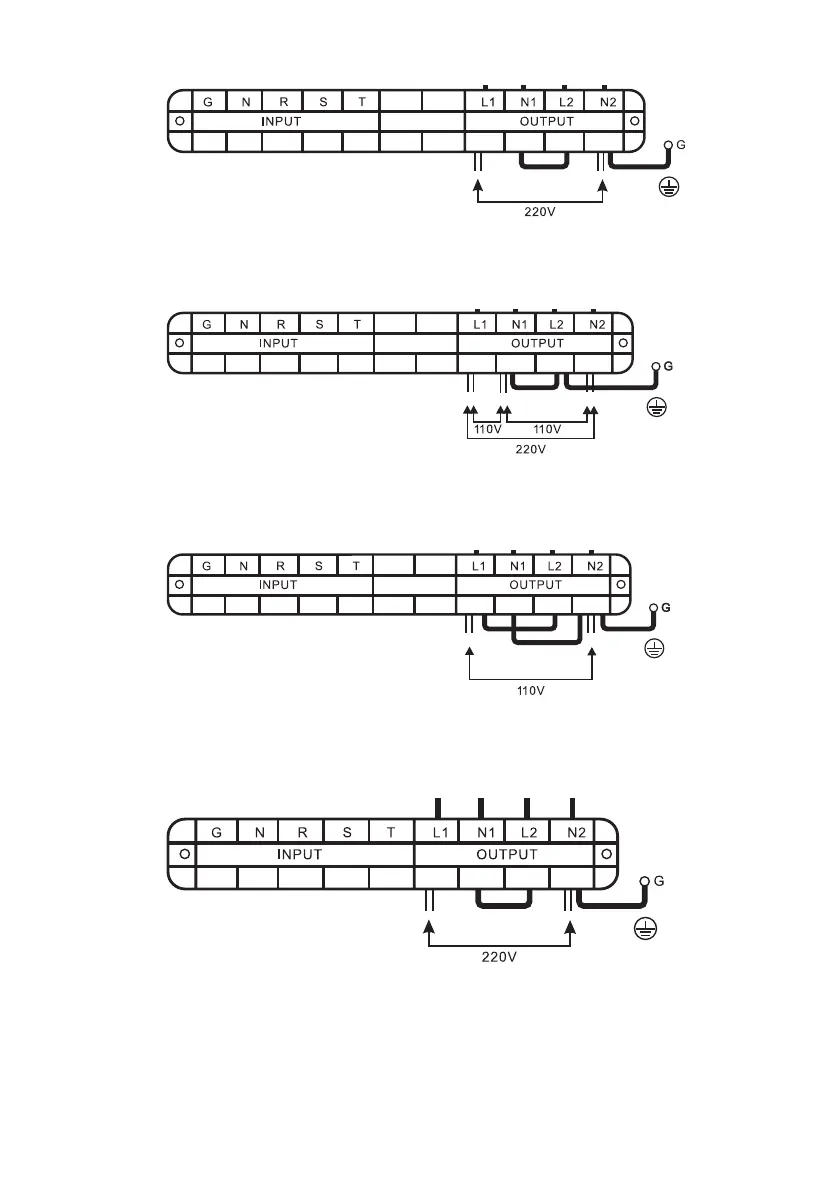

Fig. 2 6K/10K single phase input; single phase+2 wires, 110V output
Fig. 3 6K/10K single phase input; single phase+3 wires, 220V/110V output
Fig. 1 6K/10K single phase input; single phase+2 wires, 220V output
Fig. 4 10K three-phase input; single phase+2 wires, 220V output
BATTERY
BAT+ BAT-
BATTERY
BAT+ BAT-
BATTERY
BAT+ BAT-
