11

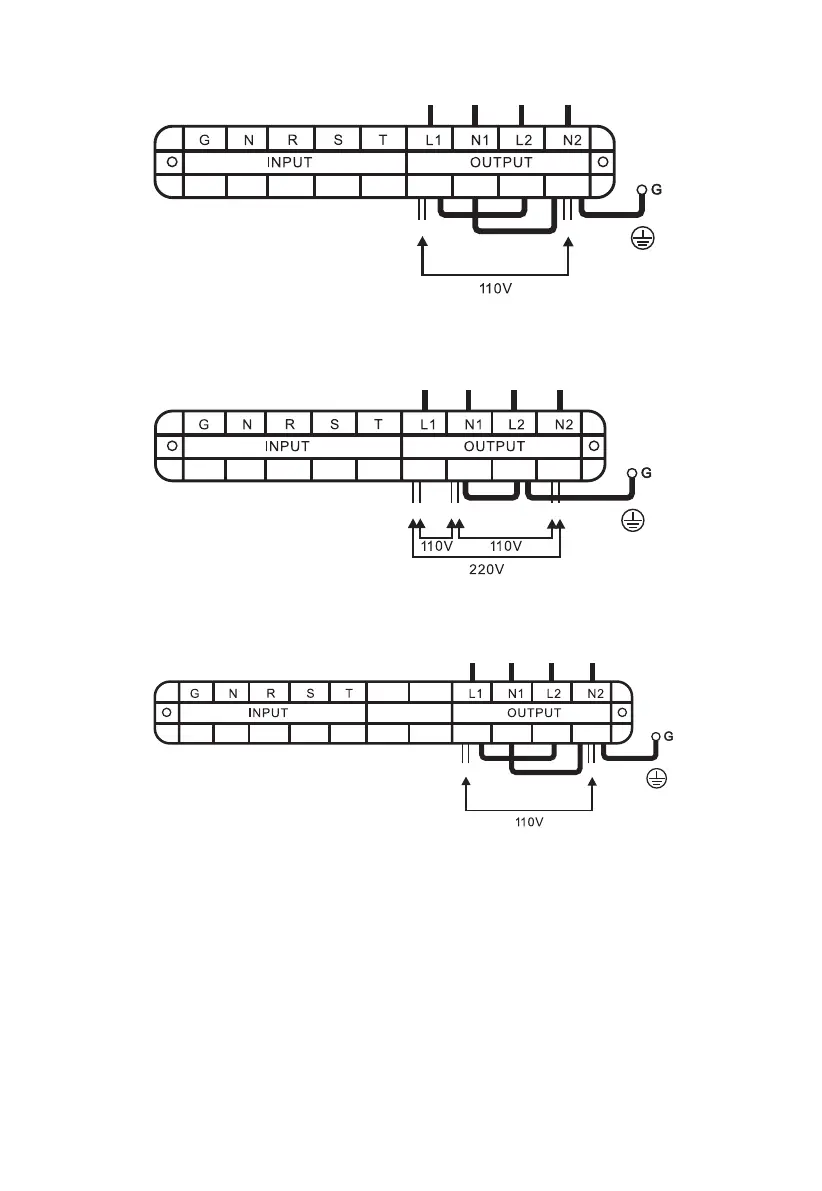

Fig. 5 10K three phase input; single phase+2 wires, 110V output

Fig. 6 10K three phase input; single phase+3 wires, 220V/110V output

Fig. 7 20K three phase input; single phase+2 wires, 110V output

BATTERY

BAT+ BAT-
