Instruction Book IB182071EN
July 2018
Remote Power Racking System
(RPR-2)
www.eaton.com

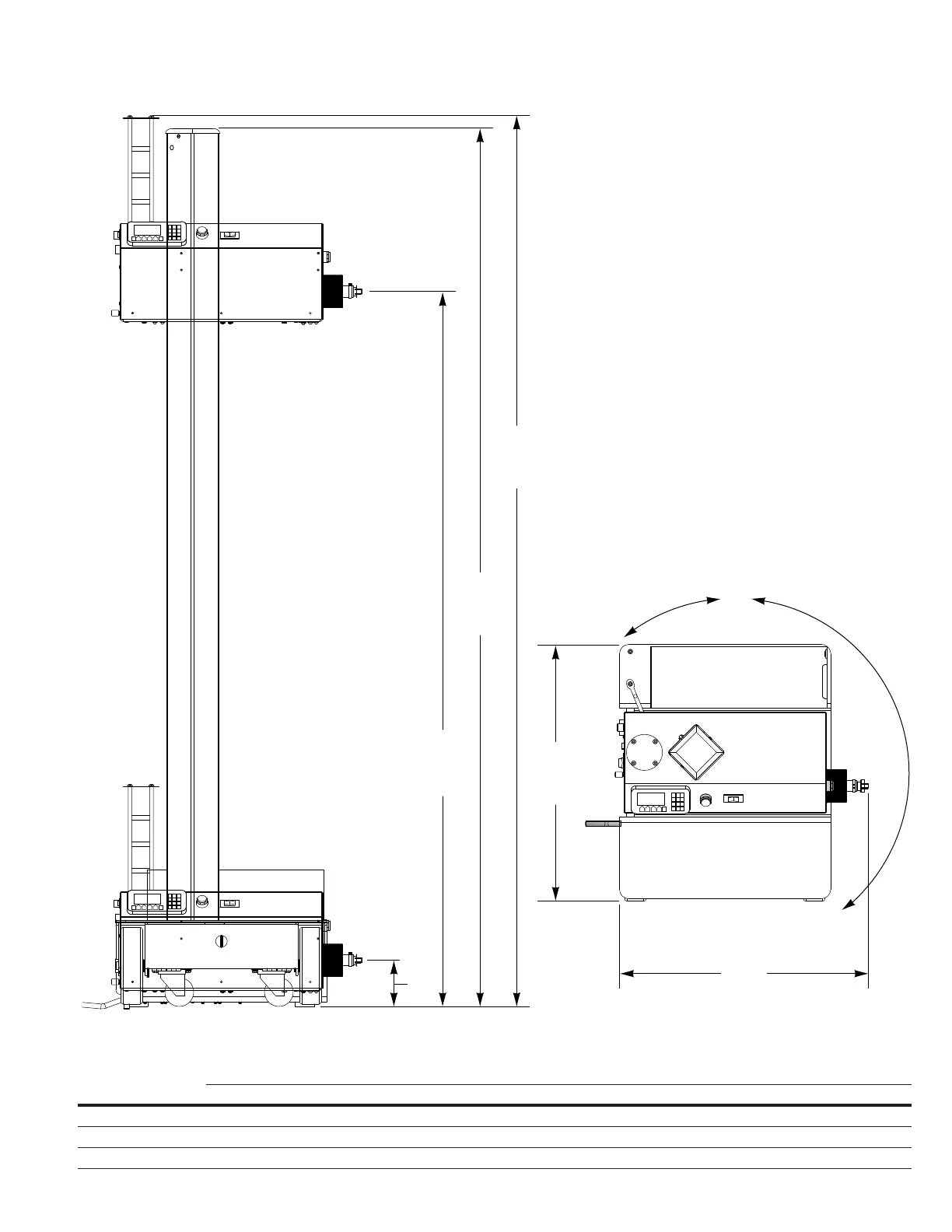

Table 1. RPR-2 and RPR-2 Plus Dimensions
Profile Type
Overall
Height
Stanchion
Height
Max. Racking
Height
Min. Racking
Height Width Depth
360
o
Rotational
Clearance
A B C D E F G
RPR-2 Universal Profile 100” 98” 81” 4.875” 28” 29” 36”
RPR-2 Medium Profile 88” 86” 68” 4.875” 28” 29” 36”
RPR-2 Low Profile 68” 66” 48” 4.875” 28” 29” 36”
E
G
F
B
C
D
A
