Eaton VCP-W Series Instruction Book

12
Instruction Book IB182312EN June 2016 www.eaton.com
50/75/150 VCP-W
Selectable Ground and Test Device

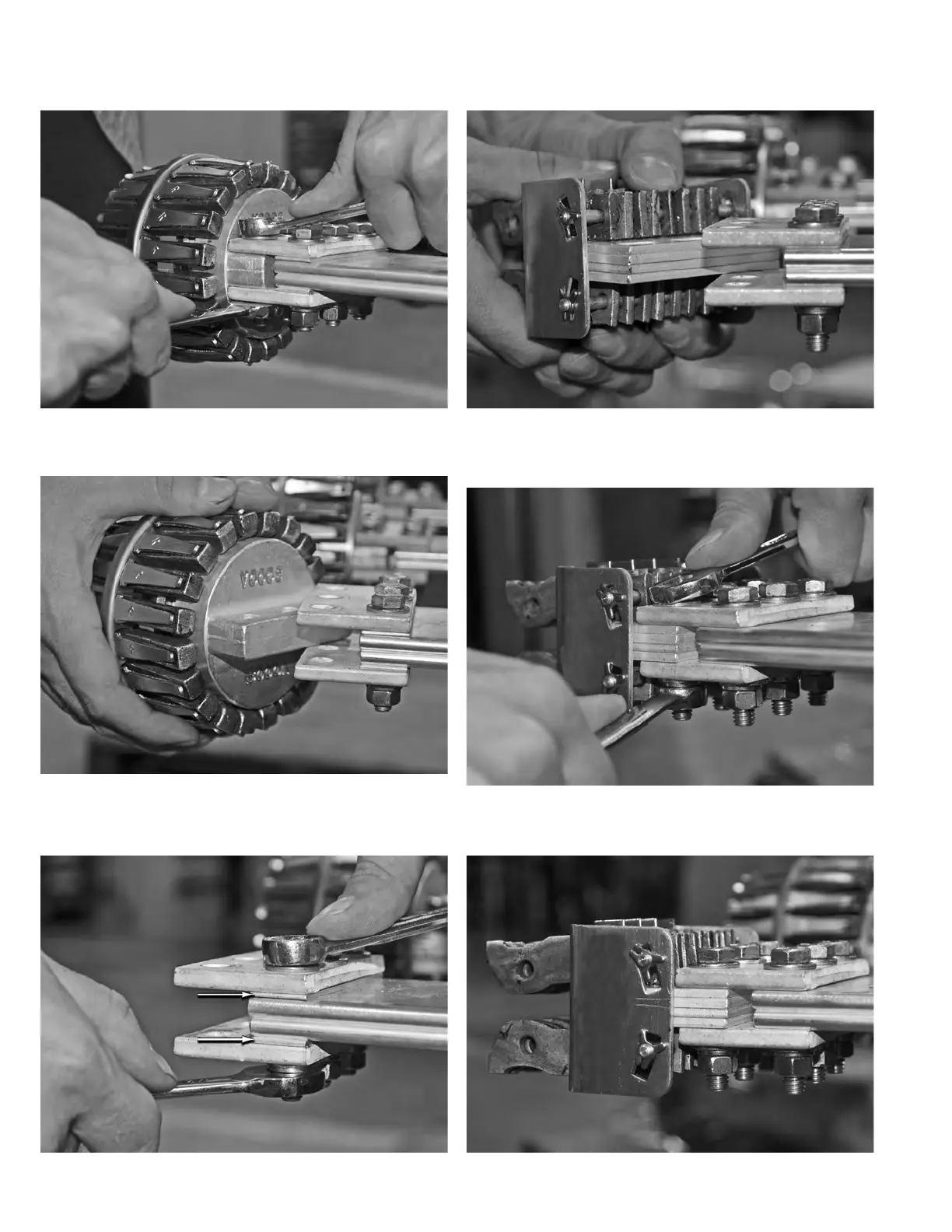

Figure 4.5. Primary Disconnect Shim Removal (3000A) Figure 4.8. Primary Disconnect Installed (1200A/2000A)
Figure 4.6. Primary Disconnect Installation (1200A/2000A)
Figure 4.4. Primary Disconnect Removal (3000A) Figure 4.7. Primary Disconnect Hardware Installation
(1200A/2000A))
Figure 4.3. Primary Disconnect Hardware Removal (3000A)
