Eaton VCP-W Series Instruction Book

5
Instruction Book IB182312EN June 2016 www.eaton.com
50/75/150 VCP-W
Selectable Ground and Test Device

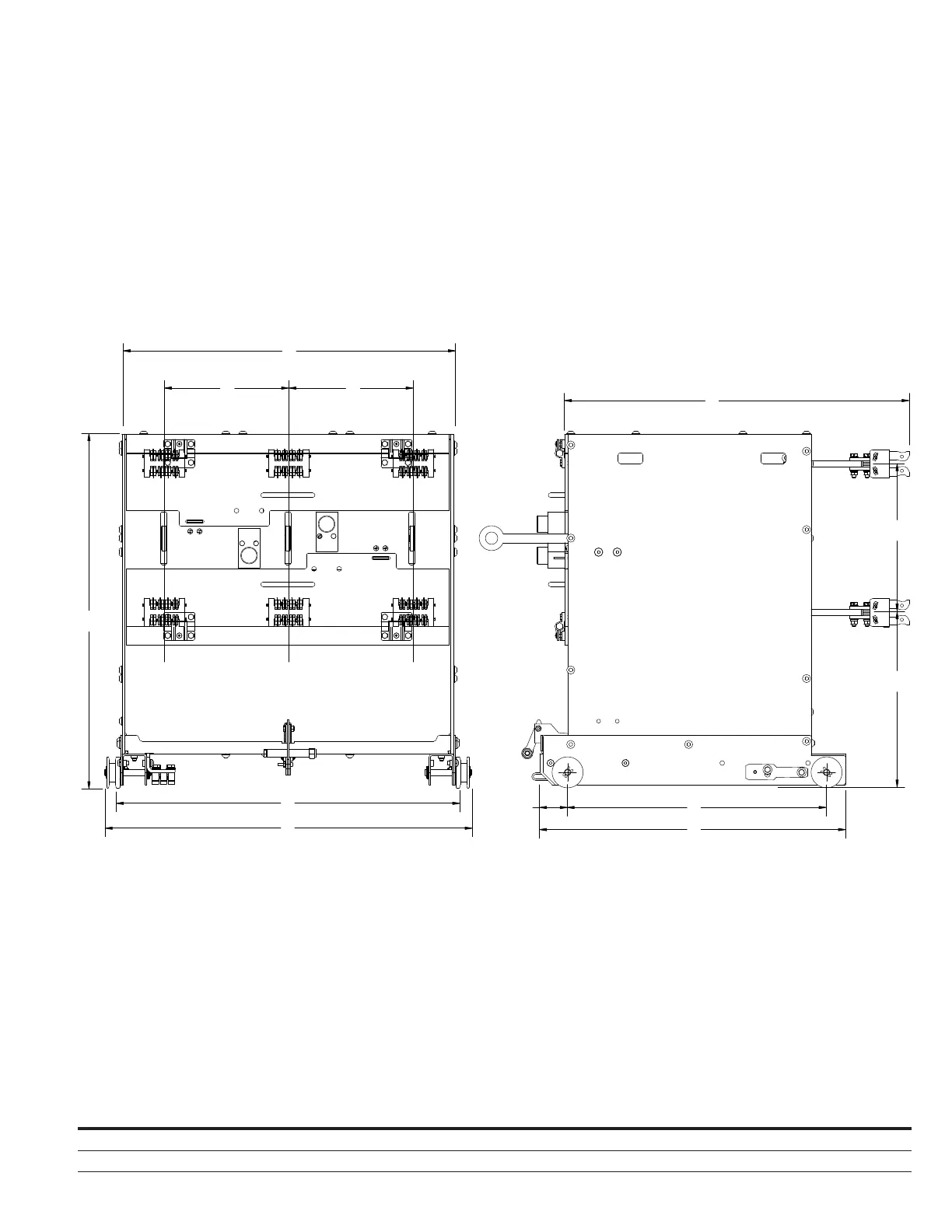

Table 2. VCP-W Selectable Ground and Test Device Dimensions
Breaker Type
Sized For
Circuit Breaker
Compartment
(Amps) A B C D E F G H I J K
150 VCP-W 500 Dual 1200 / 2000 28.50 26.76 10.00 27.81 12.00 14.13 20.88 24.63 2.25 27.80 29.55
150 VCP-W 500 Dual 3000 28.50 26.76 10.00 27.96 12.00 14.13 20.88 24.63 2.25 27.80 29.55
D
H
GI
J
I
E
F
B
C C
A
