Eaton Vickers DF3S4-16 Series User Manual

17
Part No. Part Name Qty.
1 Screw 2
2 Nut 2
3 Needle Housing 2
4 O-Ring 2
5 Needle 2
6 O-Ring 2
7 Spring 2
8 Poppet 2
9 Body 1
10 O-Ring 4
11 Roll Pin 1

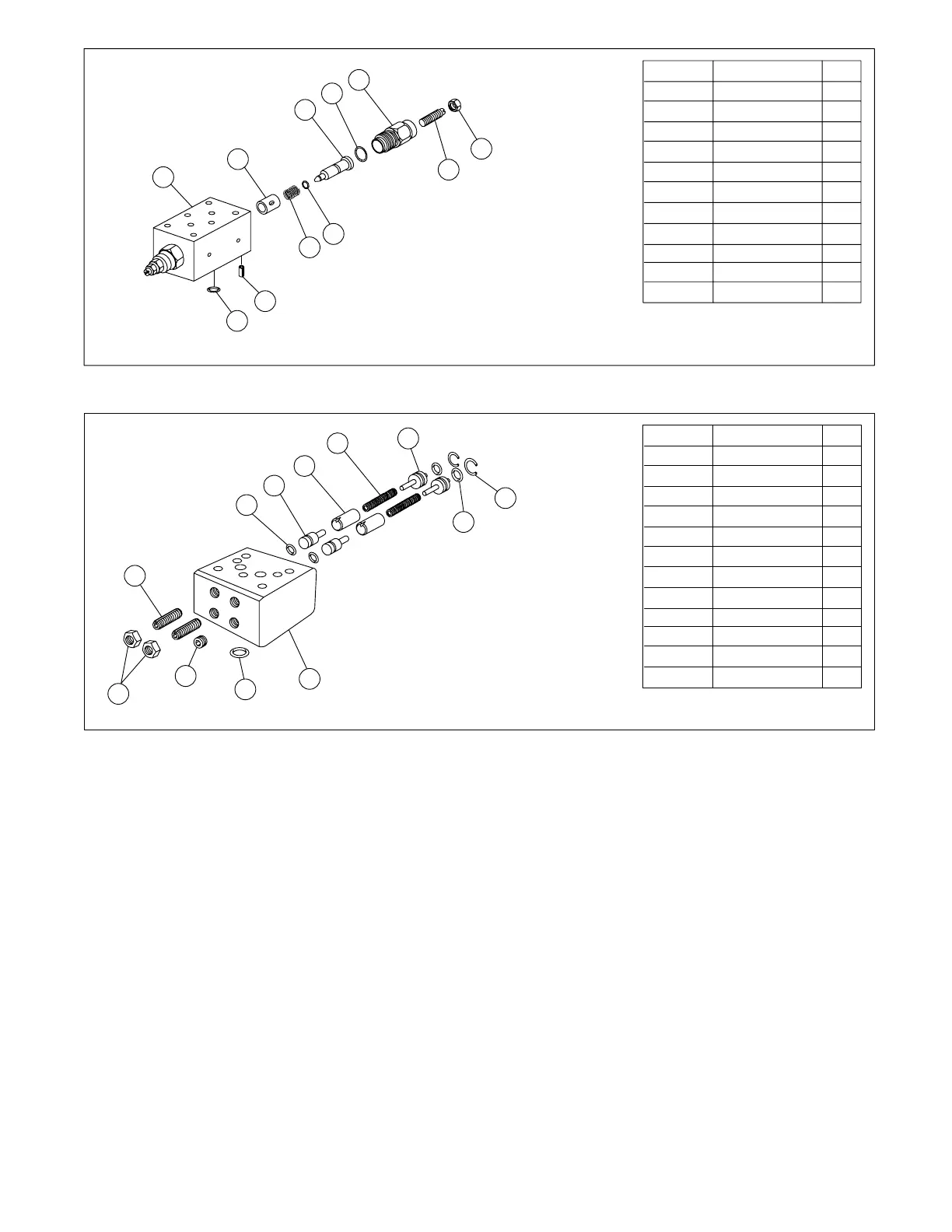

Figure 10a. Part Tab
Figure 10a. Pilot Choke - DGFN-01-20 (Use with DG4S4-01 Series)
DGMFN-3-21
5
6
7
8
11
3
2
1
10
4
9
Part No. Part Name Qty.
1 Retaining Ring 2
2 Plug 2
3 O-Ring 2
4 Spring 2
5 Check Valve 2
6 Stop 2
7 O-Ring 2
8 Lock Nut 2
9 Adj. Screw 2
10 Plug 2
11 Body 1
12 O-Ring 5
Figure 10b. Part Tab
Figure 10b. Pilot Choke - DGFN-01-20 (Use with DG4S4-01 Series)
DGFN-01-20
7
8
4
3
2
1
11
10
5
6
9
12
