Eaton Vickers VF Series User Manual

11
1.Head screw.
2.Head
3.Head gasket
4.Cartridge
(Includes items 5 thru 10)
5.Bushing
6.Pin - locating
7.Vane
8.Rotor
9.Ring
10.Bushing
11. Screw
12.Lockwasher
13.Gasket
14.Screw
15.Lockwasher
16.Mounting Flange
17.Gasket
18.Body
*19.Flange screw
*20.Flange (inlet)
*21.Gasket (inlet)
*22.Flange screw
*23.Flange (outlet)
*24.Gasket (outlet)
25.Head screw
26.Lockwasher
27.Head (intermediate)
28.Gasket
29.Nut
30.Lockwasher
31.Bearing
32.Cartridge
(includes items 33 thru 39)
33.Locating screw
34.Retaining screw
35.Bushing
36.Vane
37.Rotor
38.Ring
39.Bushing
40.Shaft key
41.Bracket screw
42.Bracket
(Foot/Flange)
43.Lockwasher
44.Flange gasket
45.Retainer screw
46.Retainer
47.Retainer gasket
48.Drive shaft
49.Lock nut
50.Lockwasher
51.Bearing
52.Shaft seal
53.Seal
(used on basic design only)
54.Flange screw
55.Flange (Inlet)
56.Gasket (inlet)
57.Flange screw
58.Flange (outlet)
59.Gasket (outlet)
60.Plug
61.Grease fitting
(used on basic design only)
62.Grease relief fitting
(used on basic design only)
63.Screw
64.Rotating plate
65.Screw
66.Name plate
*Items 19 thru 24 are used on large and inter-
mediate double pump combinations. The small
series used in the large and small combinations
have female pipe threaded ports in the body.
4
15
14
16
17
18
19
20
11
12
29
21
22
13
30
33
34
35
37
31
38
36
32
39
60
53
59
57
58
66
65
61
63
64
49
50
51
62
56
55
54
52
48
40
47
44
45
46
42
41
43
42
41
25
28
27
26
24
23
10
1
2
3
5
7
9
8
6

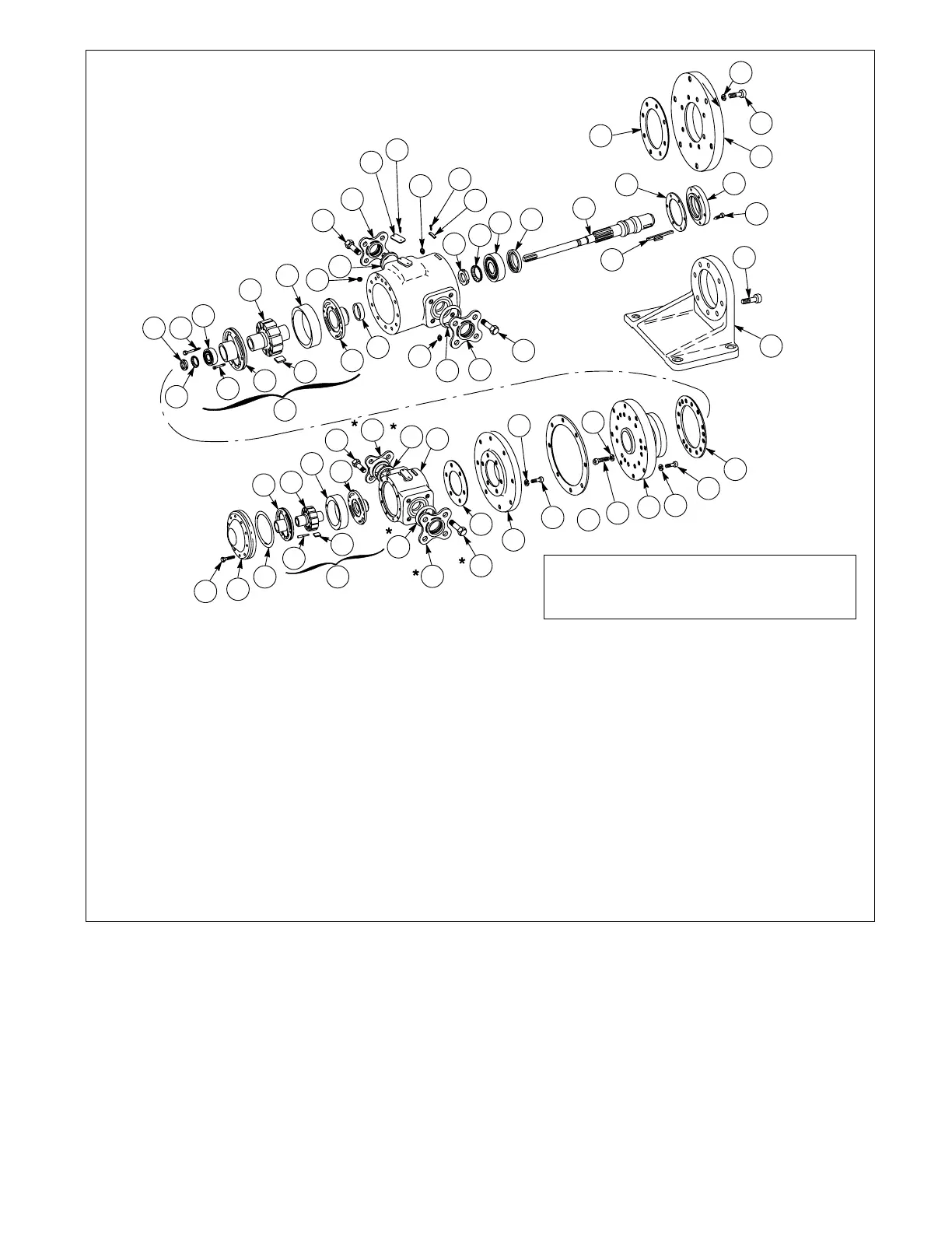

Typical Double Pump Parts & Illustration Drawing
