Eberg COOLY C35HD - Installation Instructions; Exhausting Hot Air

COOLY C35HD BLACK EN
28
www.eberg.eu
INSTALLATION INSTRUCTIONS
EXHAUSTING HOT AIR
In the Cool Mode the appliance must be placed close
to a window or opening so that the warm exhaust
air can be ducted outside.
First position unit on a at oor and make sure there’s
a minimum of 12” (30cm) clearance around the unit,
and is within the vicinity of a single circuit outlet
power source.
1. Extend either side of the hose (Fig.1)and screw the hose
inlet (Fig.2).
2. Extend the other side of the hose and screw it to the
hose outlet (Fig.3).
3. Install the hose inlet into the unit (Fig.4).
4. Ax the hose outlet into the window slider kit and seal.
(Fig.5 &6).
Your window slider kit has been designed to t most standard vertical and horizontal window
applications,however, it may be necessary for you to modify some aspects of the installation
procedures for certain types of windows. The window slider kit can be fastened with screws.
NOTE: If the window opening is less than the minimum length of the window slider kit, cut the
end without the hold in it short enough to t in the window opening. Never cut out the hole in
window slider kit.

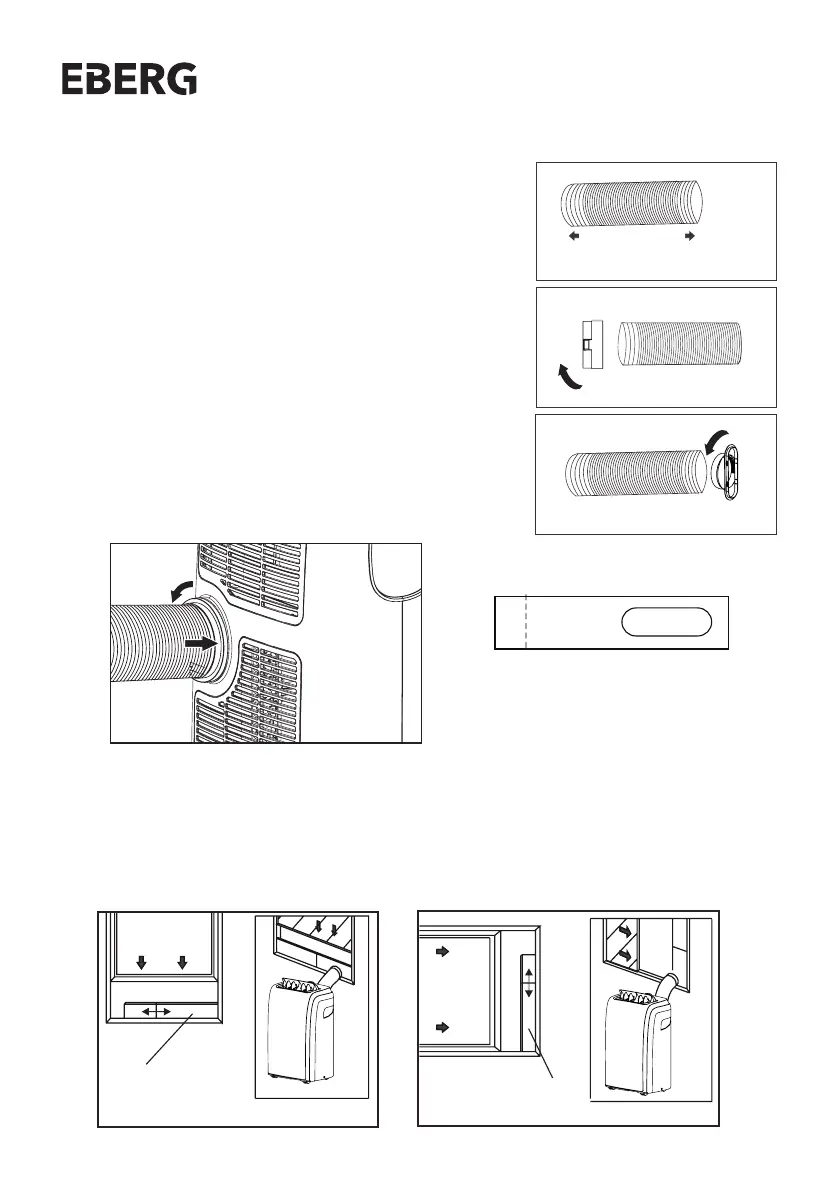

Fig. 1
Fig. 2
Fig. 3
Ryc. 4
Fig. 5 Fig. 6
Cut on opposite
side of hole
