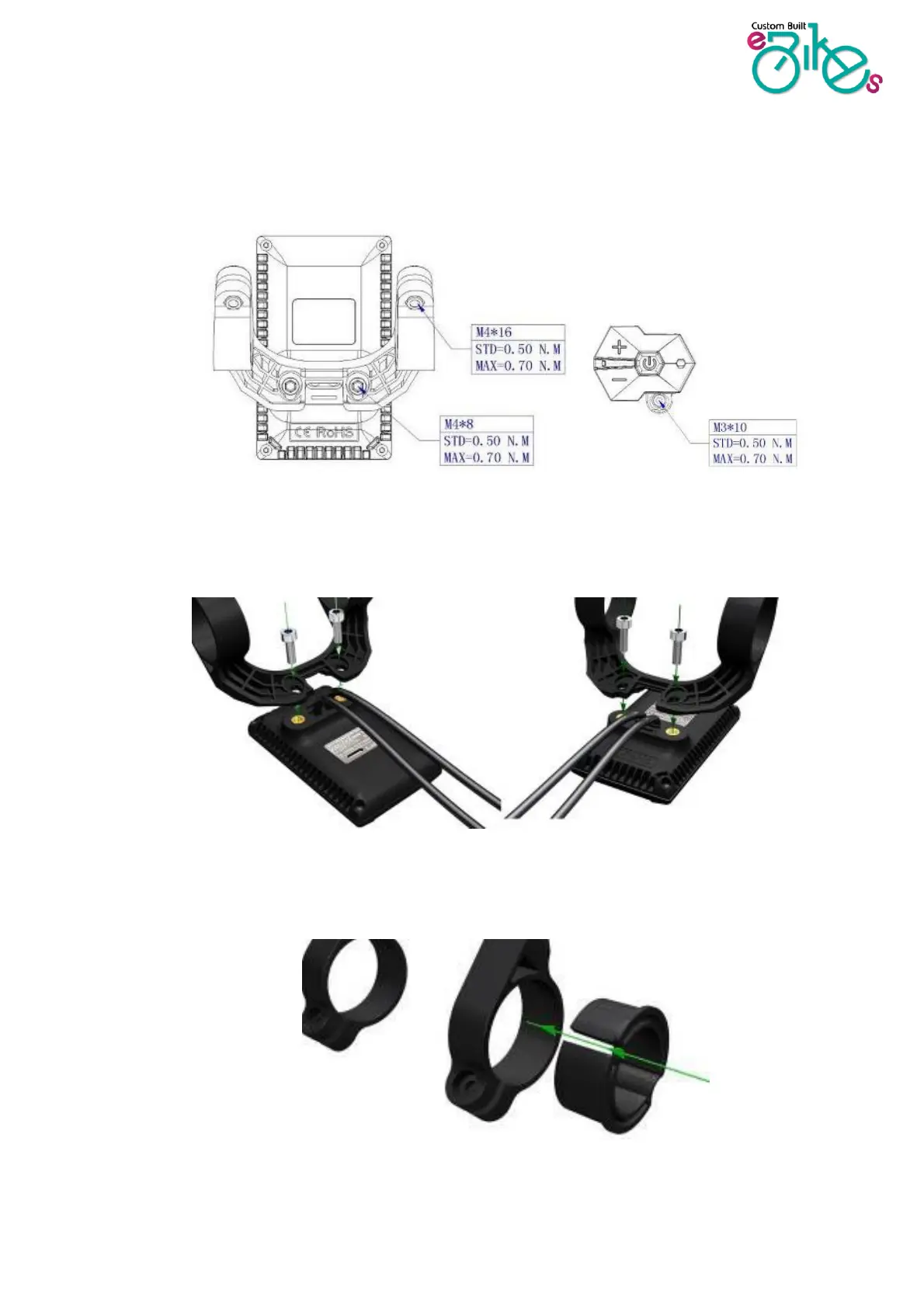

6． Assembly instructions
Please pay attention to the screw’s maximum torque value. Damage caused by over tightening
of the bolts is not covered by warranty.
There are 2 options for the clamp installation, forward or backward.
The clamps suit 3 sizes of handlebar - 31.8mm, 25.4mm and 22.2mm. There are optional rubber
spacer rings for 25.4mm and 22.2mm handlebars. When using the rubber spacers, pay attention to
the green arrow below.
