USERS MANUAL
EBS STANLEY CLARKE PREAMP
www.ebssweden.comwww.ebssweden.com

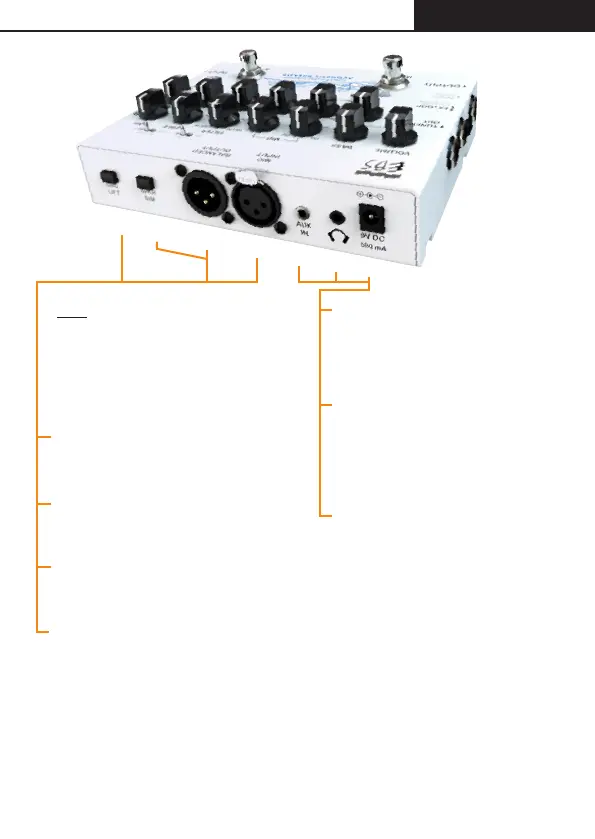

Note: The balanced output offers high-
quality ’line box’ signal for connecting
to PA mixing consoles or to studio
or broadcast recording units, with
high noise immunity. The output level
controlled by the MASTER knob does
not affect this output.
------------
MIC INPUT. Makes possible to use
a +48V Phantom microphone as the
input for the B channel.
BAL OUT. This output sends a
balanced output signal after the pedals
equalizer.
Engage this switch to add an emulated
Speaker Simulation to the balanced
output.
GND LIFT. Eliminates ground noise
and hum. When required, press the
Gnd Lift switch to disconnect the
ground from the balanced output.
AUX IN. Auxiliary input to be
monitored only with headphones.
This input has no level control and
the volume should be adjusted by
the source.
PHONES. Connect your
headphones here for silent
practicing. The volume from the
preamp is controlled by the MASTER
knob where the Aux In level needs to
be adjusted from the signal source.
DC INPUT. Connect the power
supply here, only 9V DC, 1000 mA
(supplied in package).
