4.2 Device address
4.2.1 Device address
Device address composition: Hardware address and software offset address

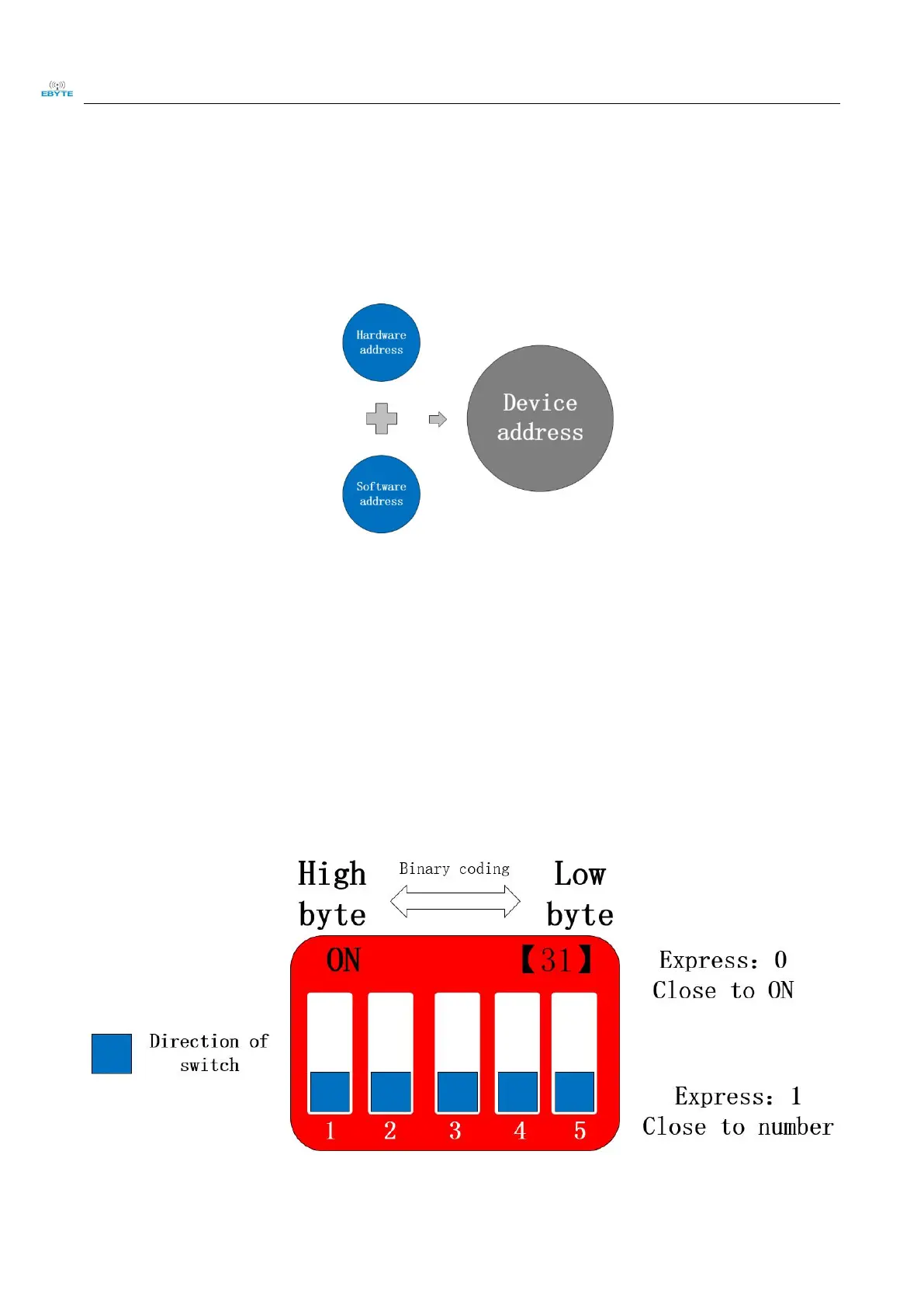

Figure 4-2-1 Device Address
The device address defaultsto: 32(hardware address 31 plus software address 1 - device address 32).
Device address settings range:1to247.
Hardware address: Implemented by dial switch(5-bit) dial setting (factory default is 31).
Software address: Implemented by the configuration tool software setting Offset Address (factory default is 1).
Example:
If the hardware address is set to 5and the software address is set to 113,the device addressis 118.
4.2.2 Hardware address (dial switch).
Figure 4-2-2 Hardware Address (Dial Switch)
