Chengdu Ebyte Electronic Technology Co.,Ltd. 【8DO】MA01 -XXCX0080 User Manual
Copyright ©2012–2021，Chengdu Ebyte Electronic Technology Co.,Ltd.
8
2.3 Software settings
2.3.1 Device connection

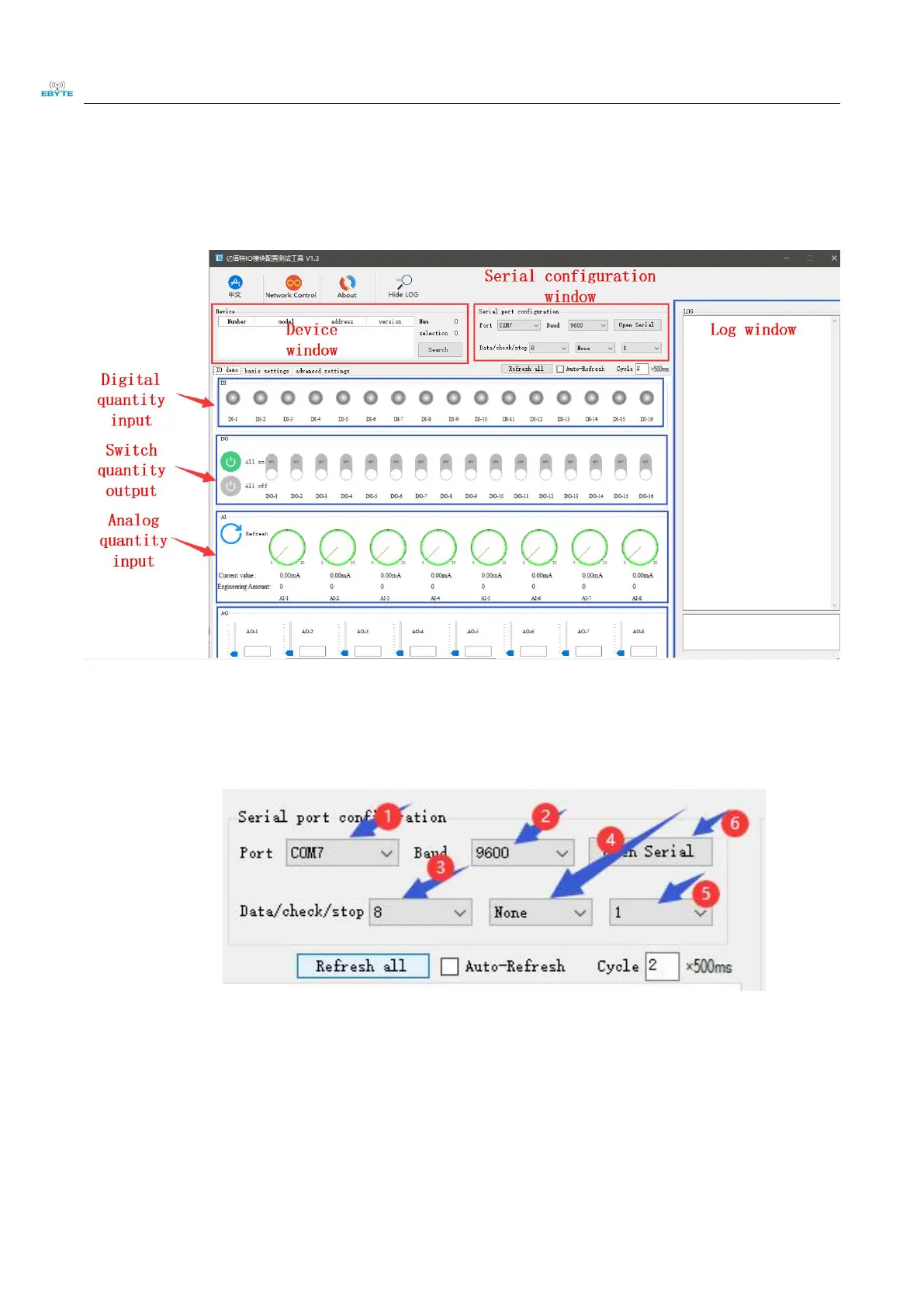

Figure 2-3-1 Software Interface
How to do this:
（1）Open the serial port, find the corresponding device port number, Baud rate default 9600,click "Open
serial port."
Figure 2-3-2 Opens the serial port
（2）In the device window, click "Search device" and the log window on the right starts refreshing the search
information. After the device section of the device window shows the connected device, click the "Stop Search"
menu. Then select the device click, the connection is successful.
