Ebyte E22-400T30S User Manual

Chengdu Ebyte Electronic Technology Co., Ltd. E22-400T30S User manual
Copyright ©2012–2018，Chengdu Ebyte Electronic Technology Co.,Ltd.
8
6
VCC
Input
Power supply ：3.3~ 5.5V DC
7
GND
Input
Ground
8
NC
Input
can be suspended
9
GND
Input
Ground
10
NC
Input
can be suspended
11
NC
Input
can be suspended
12
NC
Input/output
can be suspended
13
NC
Input/output
can be suspended
14
NC
Input/output
can be suspended
15
GND
Ground
16
GND
Ground
17
GND
Ground
18
ANT
output
High frequency signal output, 50 ohm characteristic impedance

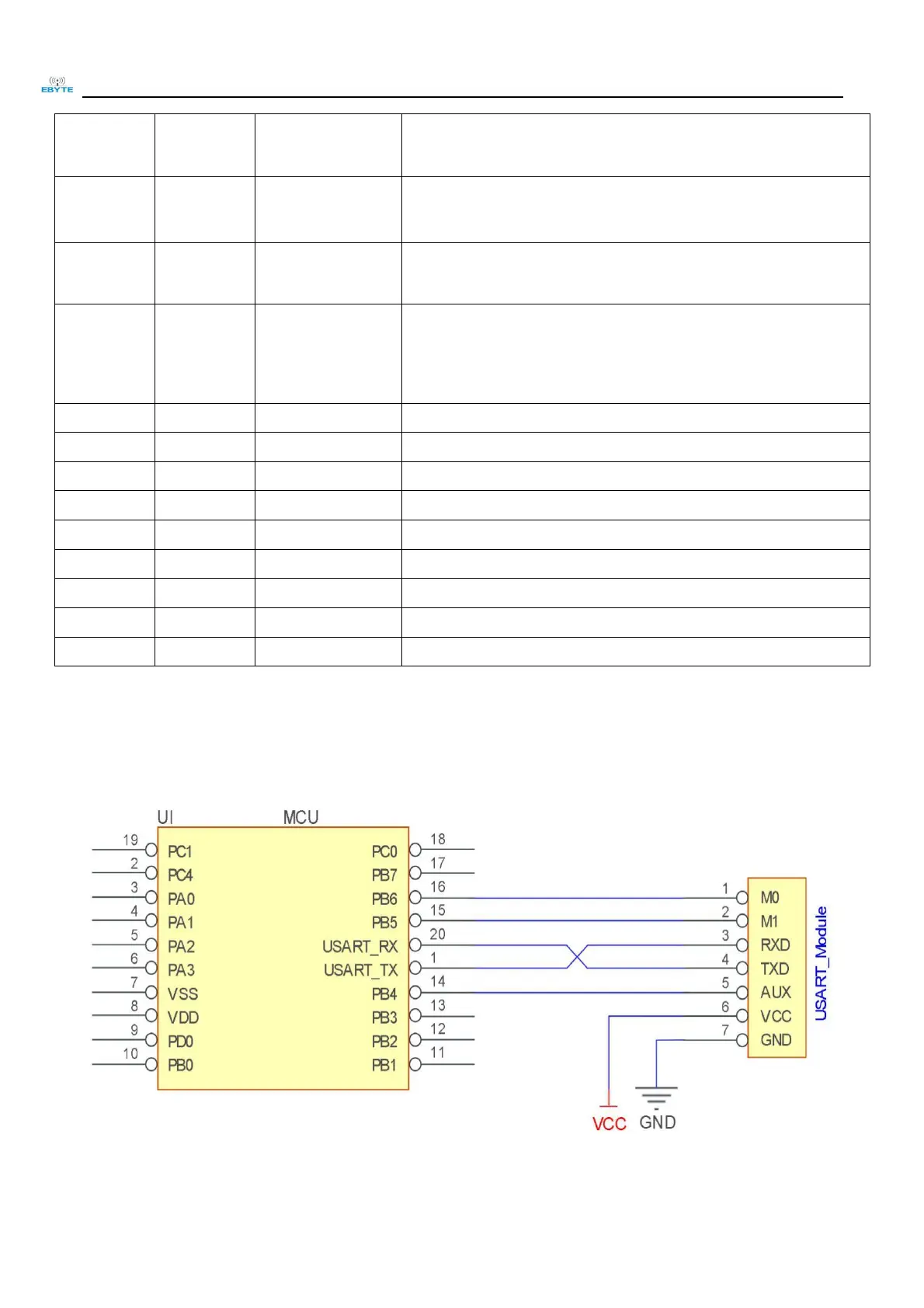

4. Connect to MCU
