Ebyte E220-900T22D User Manual

Chengdu Ebyte Electronic Technology Co., Ltd. E220-900T22D User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd.
17
8. Configuration Instruction on Computer

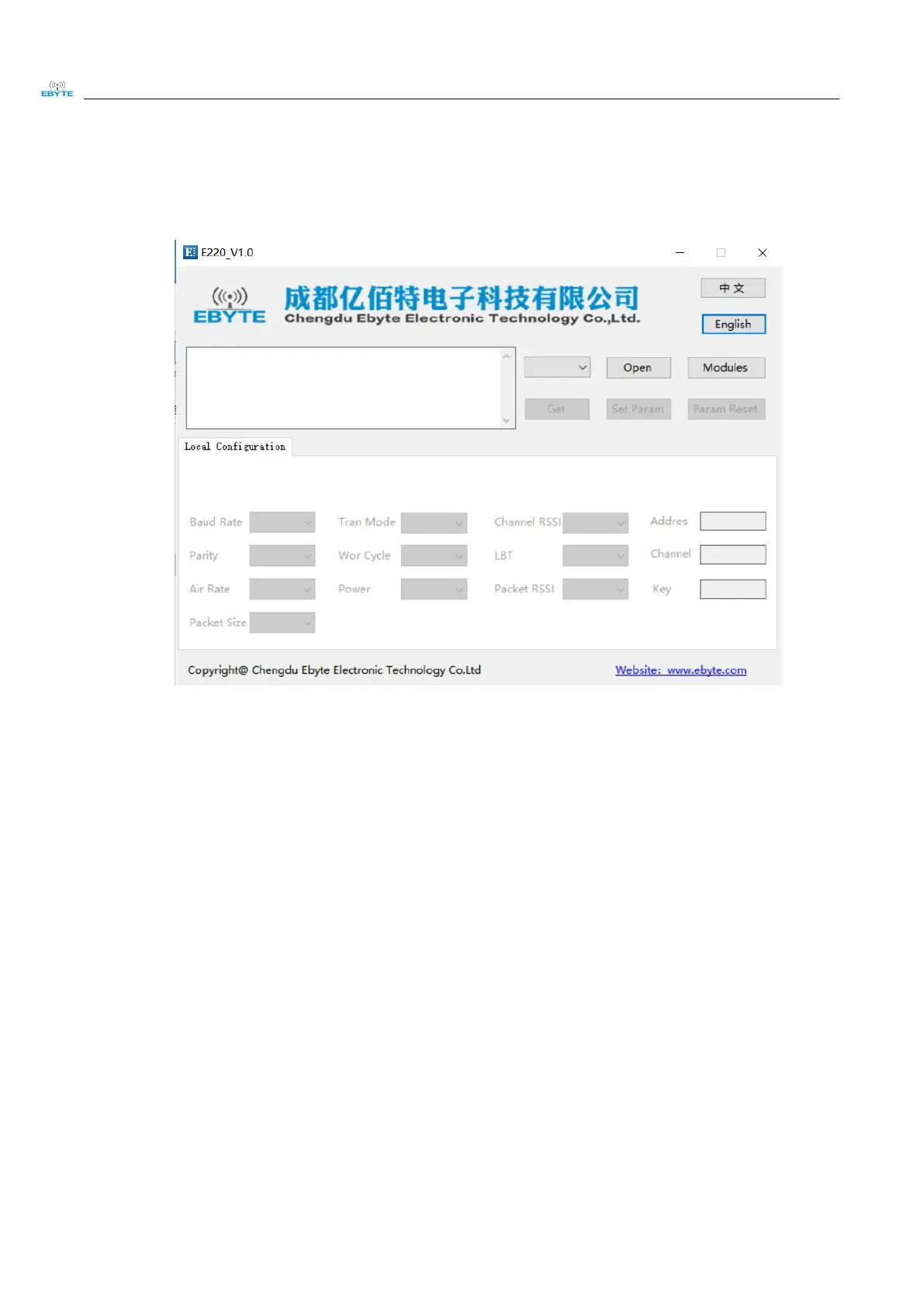

 The following figure shows the display interface of the E220-900T22D configuration host computer. The user can switch to the
command mode through M0 and M1, and quickly configure and read the parameters on the host computer.

In the configuration of the host computer, the module address, frequency channel, network ID, and key are all displayed in
decimal mode; the value range of each parameter:
Network address
：
0
～
65535
Frequency channel
：
0
～
83
Key：0～65535
