4. Recommended Connection Diagram

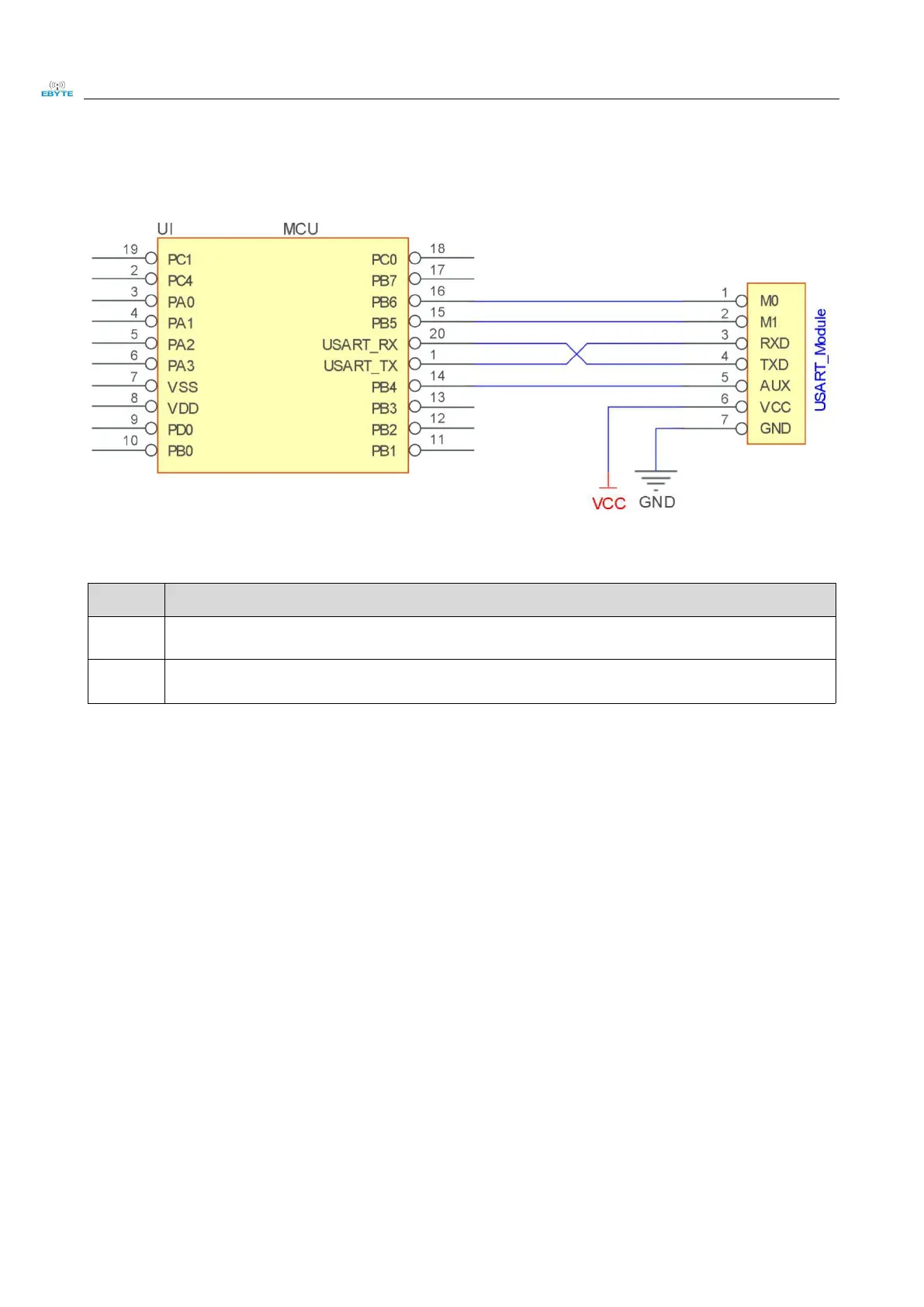

Figure 4-1 Recommended connection diagram
Table 4-1 Description
No.
Brief description of the connection between the module and the MCU (the above figure uses the STM8L MCU
as an example)
1
The wireless serial port module is TTL level, please connect with TTL level MCU.
2
For some 5V MCU, it may be necessary to add 4-10K pull-up resistors to the TXD and AUX pins of the module.
