Chengdu Ebyte Electronic Technology Co.,Ltd. E95-DTU(900SLxx-485) User Manual
Copyright ©2012–2022，Chengdu Ebyte Electronic Technology Co.,Ltd.
6
TXD
send indicator
Blinks when sending data
7
RXD
Receive indicator
Blinks when receiving data
8
MO
Mode indicator
Working mode indicator
9
M1
Mode indicator
Working mode indicator

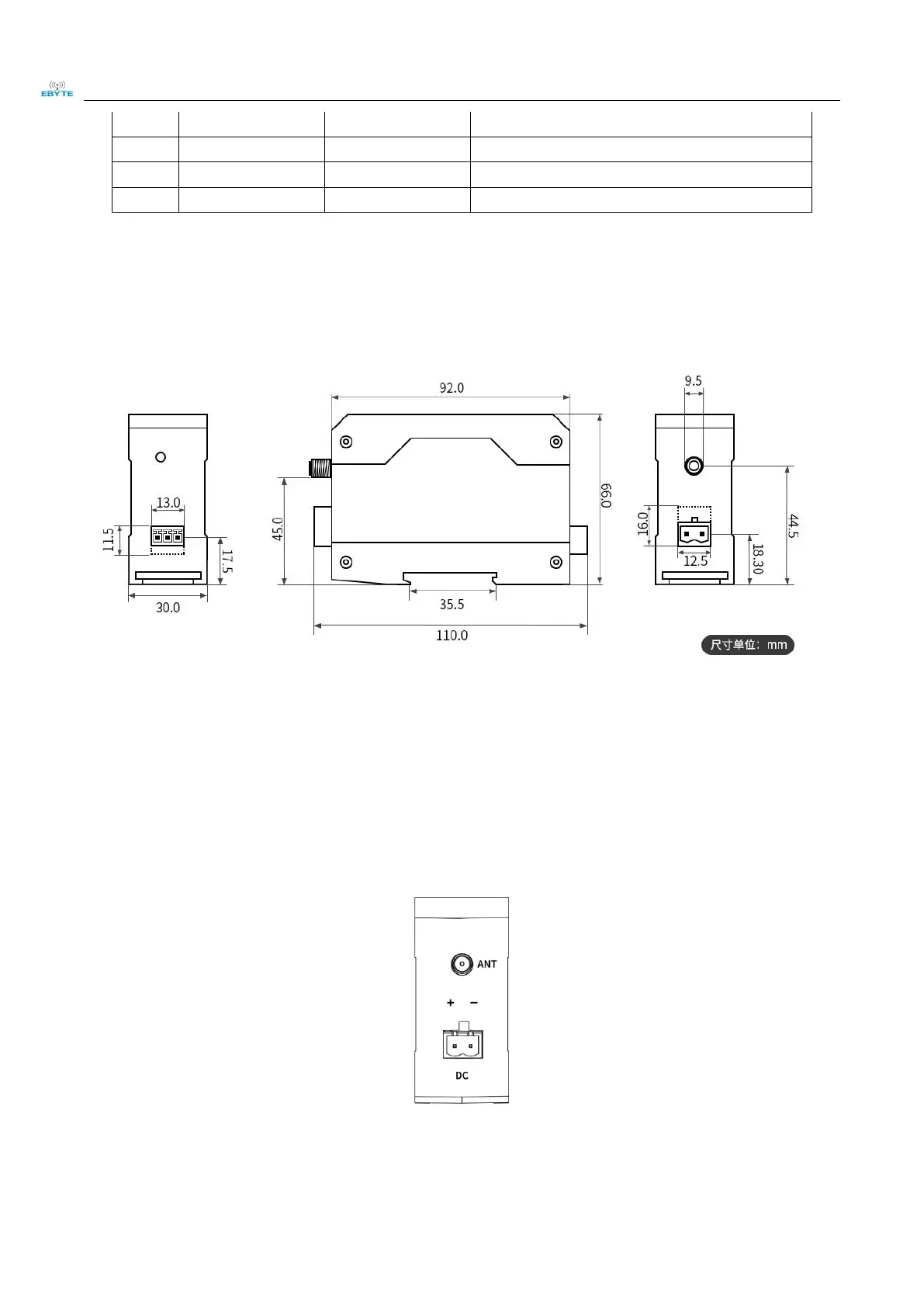

1.5 Installation size
2.Interface definition
2.1 Power interface description
E95-DTU (900SLxx-485) can be powered by 8~28V (DC) power supply, and the wiring port is connected by
wiring terminal (2 Pin).
