Chengdu Ebyte Electronic Technology Co., Ltd. NB114 User Manual
Copyright ©2012–2023，Chengdu Ebyte Electronic Technology Co., Ltd.
4.2.5.HTTP client mode
This mode can realize the HTTP packet grouping function, and provides two modes:
GET and POST. The customer can configure parameters such as URL, Header, and send
packets by the device (serial port server) to realize the fast communication between the
serial port device and the HTTP server. The HTTP client mode is recommended to use the
random port and open a short connection to save the HTTP server resources.
1. GET

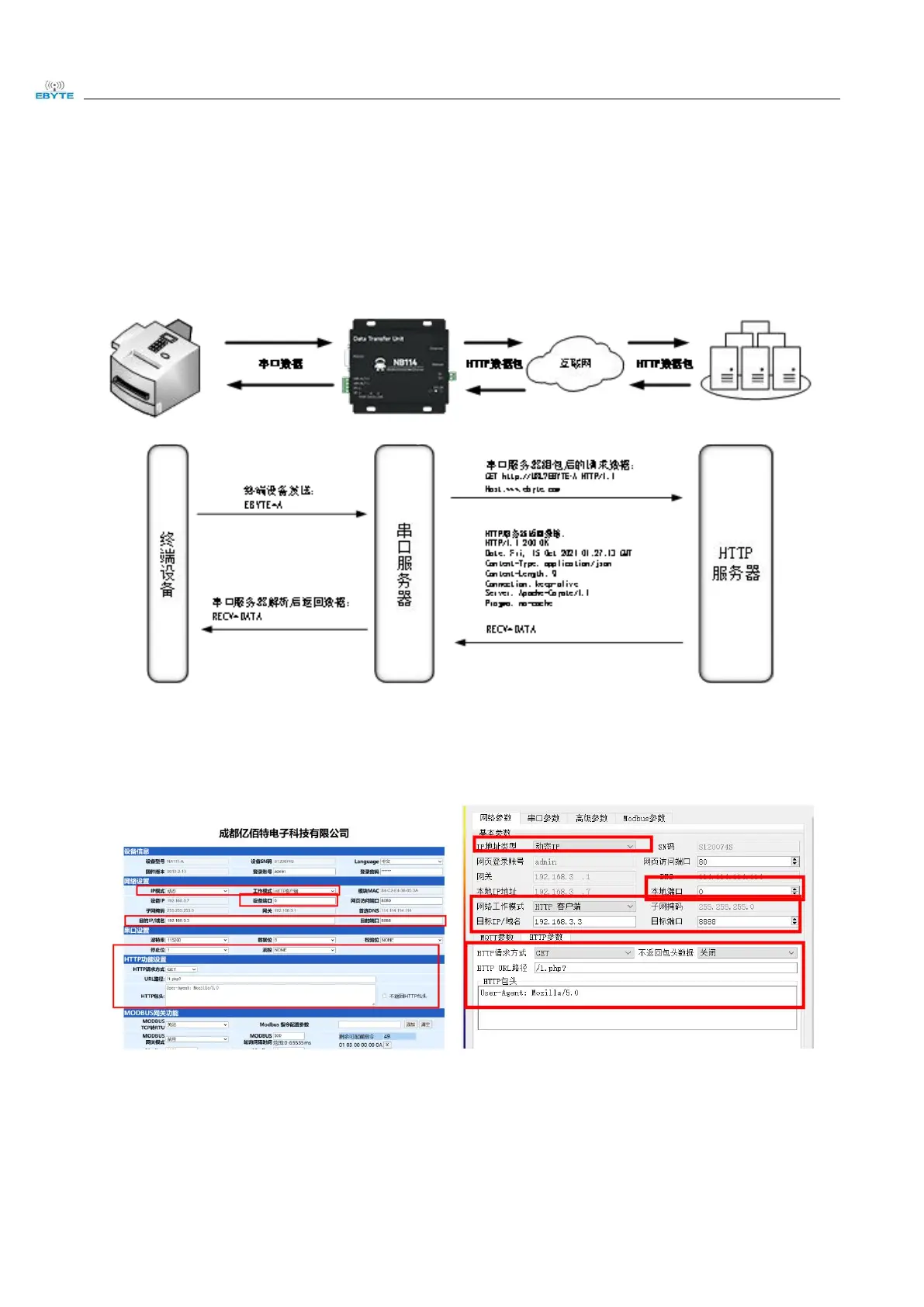

Use the HTTP mode of OneNET multi-protocol access to test the HTTP-GET request of
the device, as shown in the following figure.
(1) Return data configuration with header:
Data return test:
