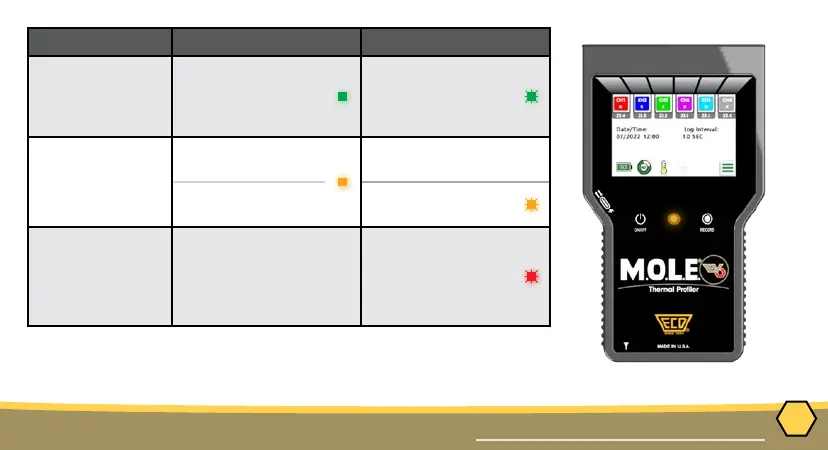

ECD MOLE EV6 - Status Activity Led

LED Color Solid Flashing
Green
Indicates thermal proler is
“ON” and idle
Indicates thermal proler is
recording data. (Log Interval: 1
sec., ash each log, < 0.5 sec.,
ash 4 mes per sec., > 1 sec.,
ash every 2 seconds)
Yellow
Power ON. LED illuminated for
3 seconds during system check
-
Indicates thermal proler is
“ON” and in RIDER mode
Indicates Proler is recording
RIDER data. (ash 4 mes per
second)
Red -
Flashes 5 mes to indicate
when the internal baery
voltage is low or internal temp
is at or above a threshold or all
channels are OFF or when the
memory is full
4
EQUIPMENT STATUS ACTIVITY LED
