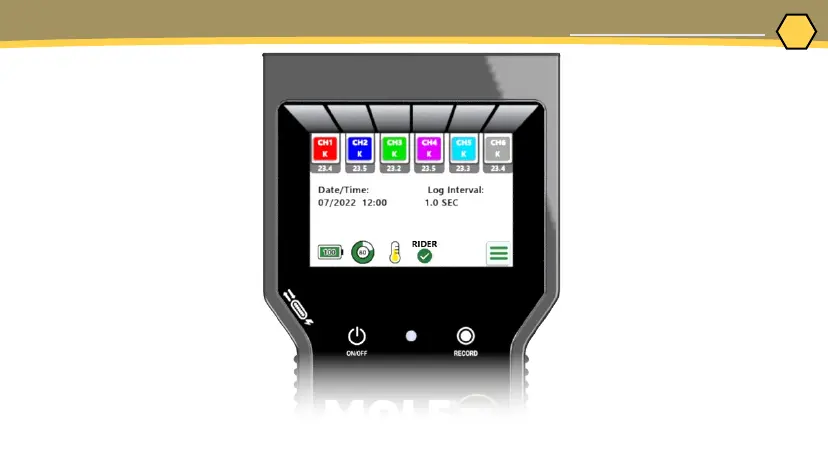

EQUIPMENT HOME SCREEN
➊ Channel status indicators:
· Shows current sensor Temp.
· Grayed when disabled
· “N/C” if T/C not connected/open
· Touch opens Channel enable
type selection screen
➐ Log interval:
· Displays the congured log interval
➎ MOLE Temp:
· Red if >70C
· Yellow if >40C, <=70C
· Green if <=40C
➋ Date/Time:
· Displays the current date/time
from the internal clock
➑ Menu button:
· Touch to open main menu screen
➏ Rider Mode:
· Dimmed if not connected to a
Rider pallet
➌ Battery charge:
· Displays charge (0-100%)
· 20% resolution (5 steps)
➍ File storage:
· Displays how full (0-100%)
· 10% resolution (10 steps)
