CS-2511T

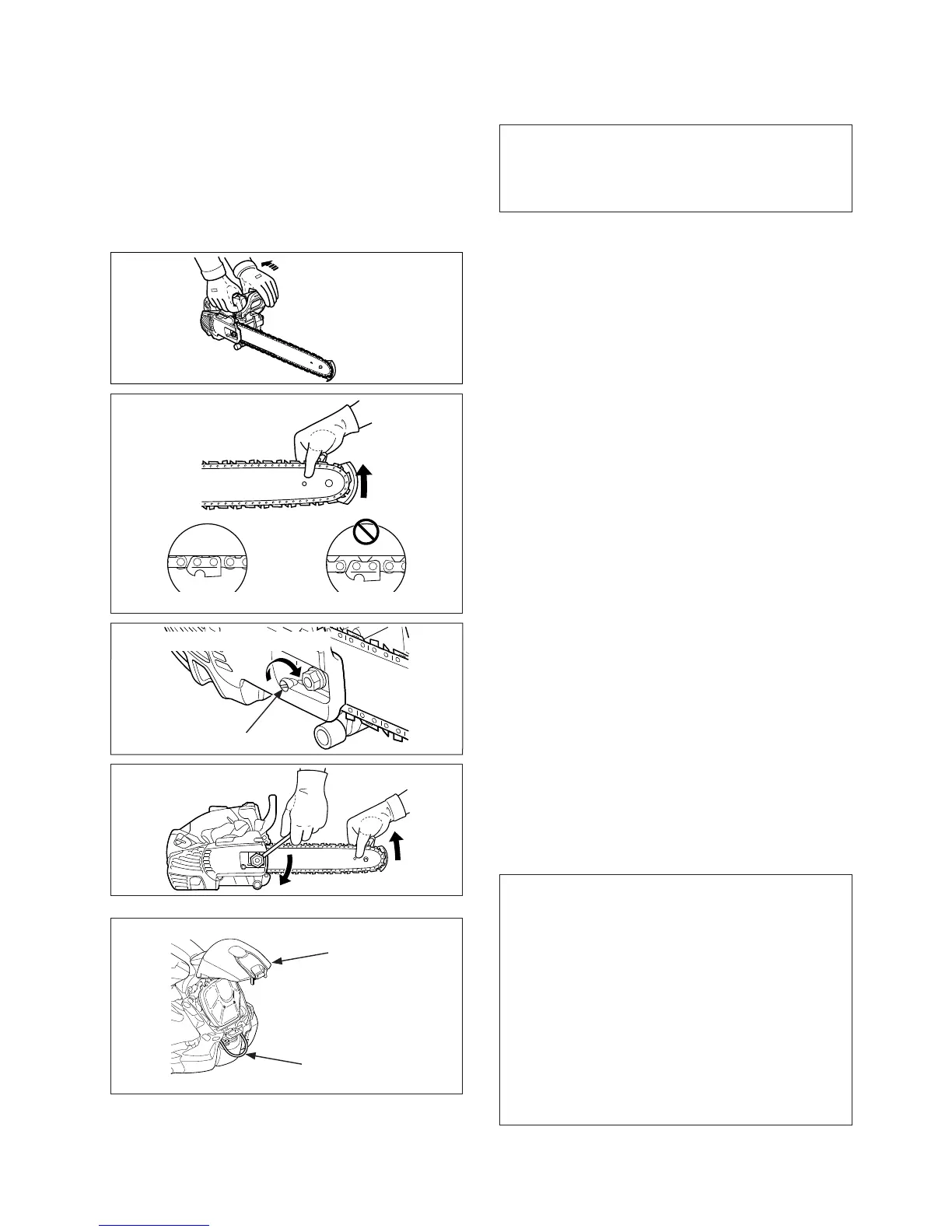

ADJUSTING CHAIN TENSION
IMPORTANT
Always loosen clutch cover nut before turning
the chain tension adjuster, otherwise the clutch
cover and tensioner will be damaged.
1. Remove spark plug lead. (See page 26)
2. Unlock the chain brake and loosen two clutch
cover nut, if necessary.
3. Hold the bar nose up, and turn the tension
adjuster clockwise until chain ts snugly against
underside of the bar.
4. Tighten a nut with the bar nose held up.
5. Pull the chain around the bar by hand. Loosen
the adjustment if you feel tight spots.
6. When chain is properly tensioned, tighten clutch
cover nuts securely - 15 - 20 N·m (133 to 177
in. lb.).
7. Keep chain properly tensioned at all times.
CHECKING LIFTING HOOK
IMPORTANT
• If your chain saw falls from height or receives a
strong impact to the lifting hook, please check
its integrity by opening the air cleaner cover
(see page 26 “Air lter”) to assess that the ring
and its associated parts are not damaged or
broken.
• In case of being damaged or broken, do not
continue using the unit with the lifting hook.
• If you have any doubt with regards to their
condition, have the unit checked out by your
nearest authorized ECHO dealer.
Unlock chain brake
Tension adjuster
Direction to tension the chain
Improper tensionProper tension
Air cleaner cover
Lifting hook
