Echo CS-2511T Owner's/Operator's Manual

12
CS-2511T
WARNING
Saw chain is sharp! Always wear gloves
when handling assembly, otherwise serious
personal injury may result.

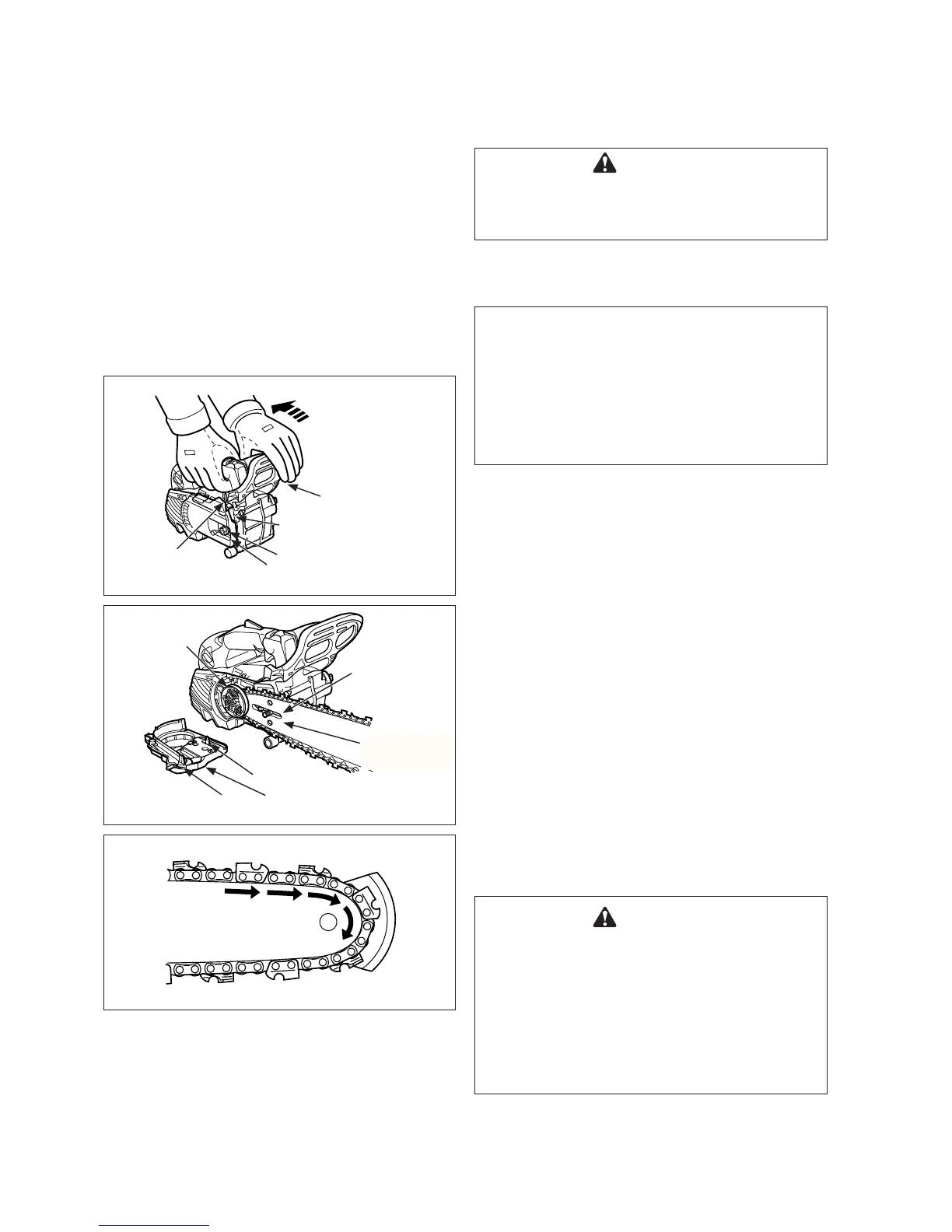

GUIDE BAR AND SAW CHAIN
INSTALLATION/REMOVAL
NOTICE
• Move the chain brake lever (Front hand guard)
fully rearward to remove or install the clutch
cover to chain saw.
• Align the brake connector of the clutch cover to
the groove on the side of the brake lever (Front
hand guard).
1. Remove spark plug lead. (See page 26)
2. Loosen the clutch cover nut and remove clutch
cover.
3. Remove bar and saw chain if necessary. See
“Maintenance and Care” section for guide bar/
saw chain maintenance procedures.
4. Mount guide bar on stud and slide toward clutch
to make saw chain installation easier. Install
chain with cutters on top of guide bar facing
forward.
5. Unlock the chain brake, and install the clutch
cover over the guide bar stud. Ensure chain
tension adjuster pin ts into the guide bar
adjuster hole, brake band is positioned around
clutch drum. Tighten clutch cover nut nger tight.
6. Turn saw over, and check brake band for correct
position on clutch drum. If brake band is not in
place around drum, remove cover, make sure
brake is unlocked, and reinstall. Tighten clutch
cover nut nger tight.
WARNING
Improper clutch cover assembly can result
in serious injury, and will cause severe
saw damage if unit is started. Never start
or operate saw if brake band is not in place
on clutch drum. Always check chain brake
operation after replacing cover. Do not
use saw if chain brake does not function
properly.
Spiked bumper; option
PREPARATION FOR USE
Clutch cover
Brake lever
(Front hand guard)
A nut
Unlock chain brake
Brake connector
Guide bar
adjuster hole
Clutch cover
Adjuster pin
Clutch
Guide bar stud
Brake connector
