Echo CS-2511T Owner's/Operator's Manual

31
CS-2511T

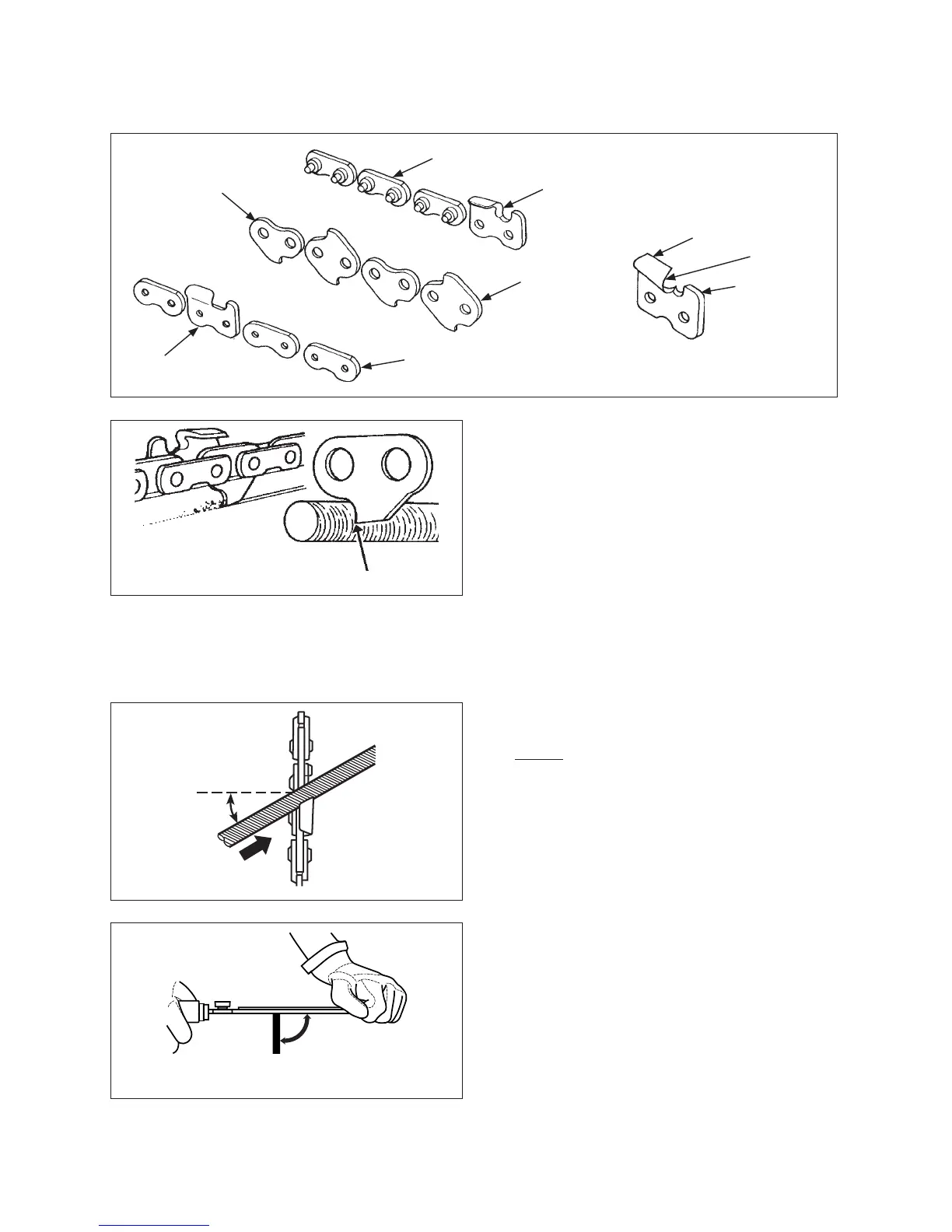

SETTING THE SAW CHAIN
Sharpen lower edge
Drive link
Tie strap
Right hand cutter
Preset tie strap
Left hand cutter
Guard link
Top plate
Side plate
Depth gauge
Hold the le horizontally
90°
Important points for proper maintenance of saw
chain:
• Keep the cutters sharp at all times.
• Keep the left and the right cutters properly
aligned.
- Note that blunt or irregular cutters will result in
poor cutting performance, increased vibration
of chains and premature breakage of the saw
chain.
• Drive link serves to remove sawdust from the
groove of the guide bar.
Keep the lower edge of the drive link sharp
where indicated.
SETTING SAW CHAIN
• For setting saw chain, round le (91PXL: 4.0 mm
5/32 in. diameter or 90PX: 4.5 mm diameter)
and at le are used.
• To keep correct position and correct angle, use
the le holder (Sure Sharp
®
).
30°
Push le as shown
Keep this angle

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
