Echo CS-2511T Owner's/Operator's Manual

30
CS-2511T

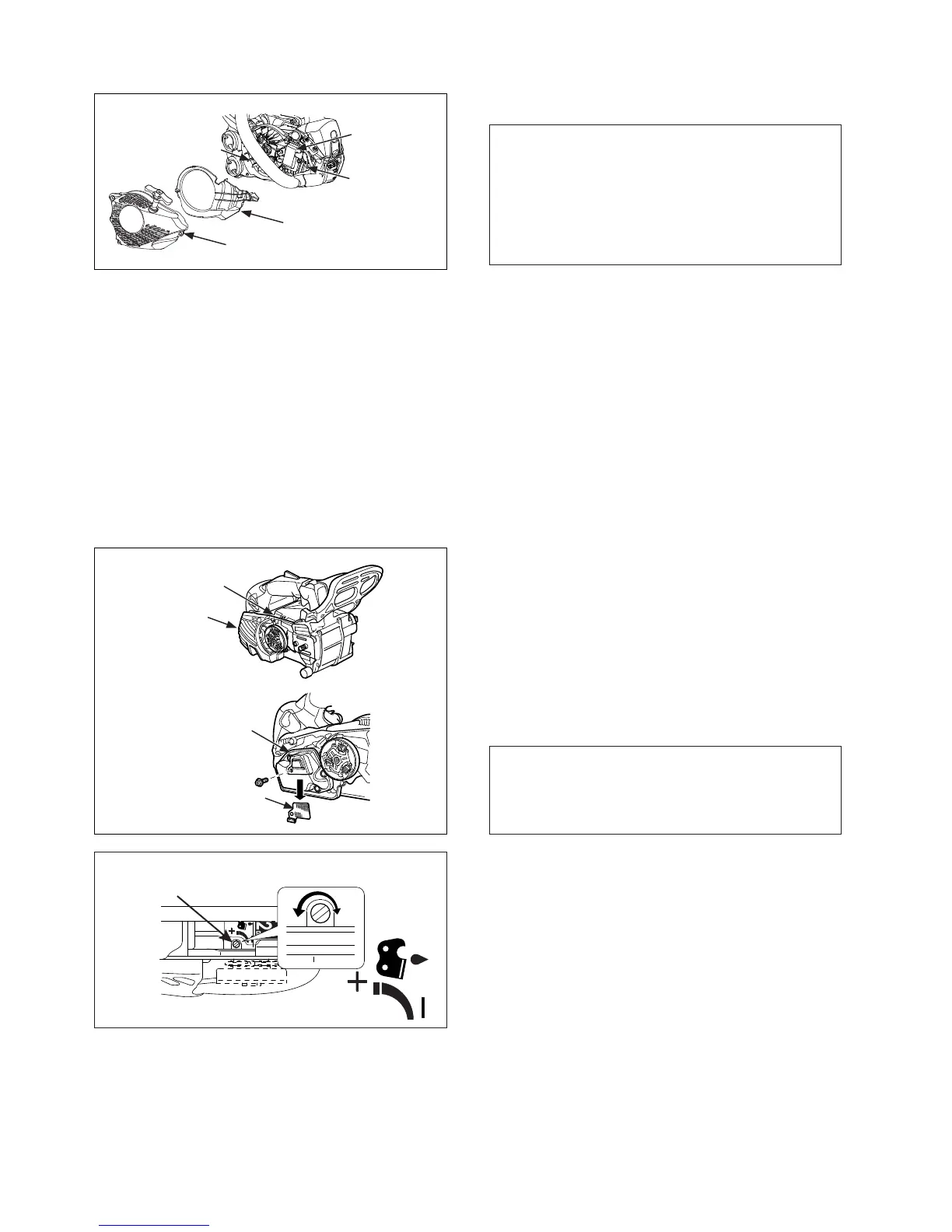

CYLINDER FINS
NOTICE
If you use the unit with the condition of being
clogged by dirt or dust, it may cause breakage
of the unit or melting damage of covers around
muer.
If you are not able to remove the dirt or dust, ask
your dealer.
• Use a wood or plastic scraping tool and a soft
brush to remove dirt and dust.
• Check periodically.
• Remove the recoil starter and the air guide plate.
• Remove dirt and dust from the recoil starter and
the air guide plate.
• Clogged ns will result in poor engine cooling.
• Remove dirt and dust from between ns to let
cooling air pass easily.
• Clean the periphery of the ignition coil and the
ywheel magneto.
• Assemble the components in reverse order.
MUFFLER SPARK ARRESTOR
• Remove spark plug lead.
• Remove two bolts and the muer cover.
• Remove spark arrestor screen from muer
body.
• Clean carbon deposits from muer components.
• Replace screen if it is cracked, or has holes
burned through.
• Assemble components in reverse order.
NOTICE
Carbon deposits in muer will cause drop in
engine output. Spark arrestor screen must be
checked periodically.
AUTOMATIC OILER
• The discharge volume of the automatic oiler is
adjusted to 7 mL/min approximately at 7000
r/min, prior to shipment from factory.
- To increase the delivery volume, turn the
adjusting screw counterclockwise.
When the screw touches stopper and stops,
this position indicates maximum discharge
volume. (13 mL/min at 7000 r/min)
- Do not turn the adjusting screw beyond the
maximum or minimum limit of volume
adjustment.
Ignition coil
Spark arrestor screen
Muer
Muer cover
DecreaseIncrease
Adjusting screw
Two bolts
Flyheel magneto
Cylinder ns
Air guide plate
Recoil starter

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
