Echo CS-2511T Owner's/Operator's Manual

28
CS-2511T
0.6 - 0.7 mm (0.024-0.026 in.)
Cleaner cover latch
T-wrench
Air cleaner cover

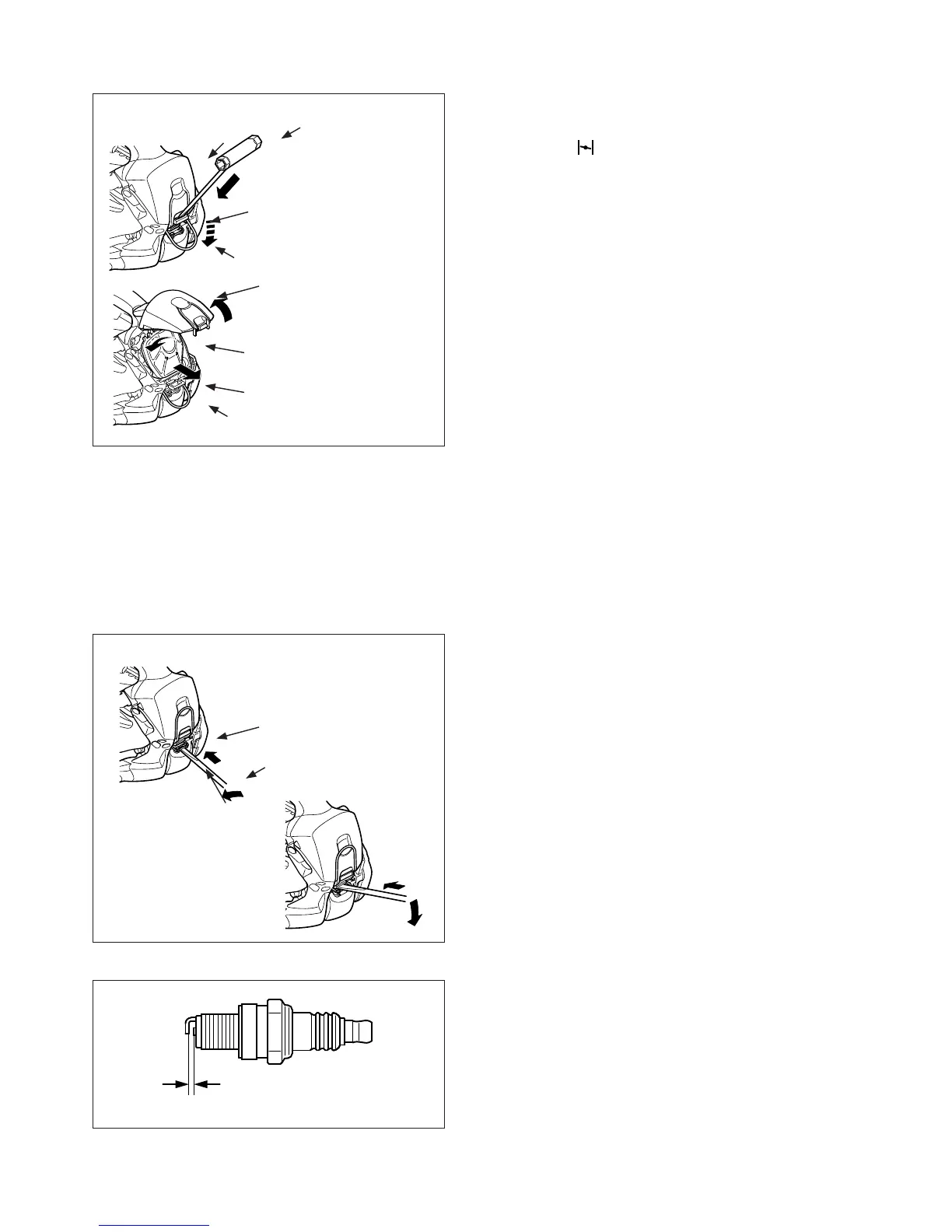

AIR FILTER
• Check before every use.
• Close choke ( ).
• Raise the lifting hook, and towards the lower
end.
• Release the cleaner cover latch with T-wrench,
and remove the air cleaner cover and the air
lter.
• Brush o dust lightly, or clean with compressed
air, or replace the air lter.
• Reinstall the air lter and cover, engage latch
and return the lifting hook.
CHECK FUEL SYSTEM
• Check before every use.
• After refueling, make sure fuel does not leak
from around fuel pipe, fuel grommet or fuel tank
cap.
• In case of fuel leakage there is a danger of re.
Stop using the machine immediately and request
your dealer to inspect or replace.
SPARK PLUG COVER
• Release the spark plug cover latch with T-
wrench.
• Inspect the spark plug, clean or replace if
damaged.
• Reinstall the spark plug and cover, engage latch
with T-wrench.
SPARK PLUG
• Check periodically.
• The standard spark gap is 0.6 - 0.7 mm
(0.024-0.026 in.).
• Correct the spark gap if it is wider or narrower
than the standard gap.
• Fastening torque: 10 - 15 Nm
(87 to 130 in. lb.).
Air lter
Lifting hook
Lifting hook
Cleaner cover latch
Air cleaner cover
Spark plug cover latch
T-wrench
Spark plug cover
RELEASE SPARK PLUG COVER LATCH
ENGAGE LATCH

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
