FUEL SYSTEM
CS-271T
35
4-14Installingcarburetor

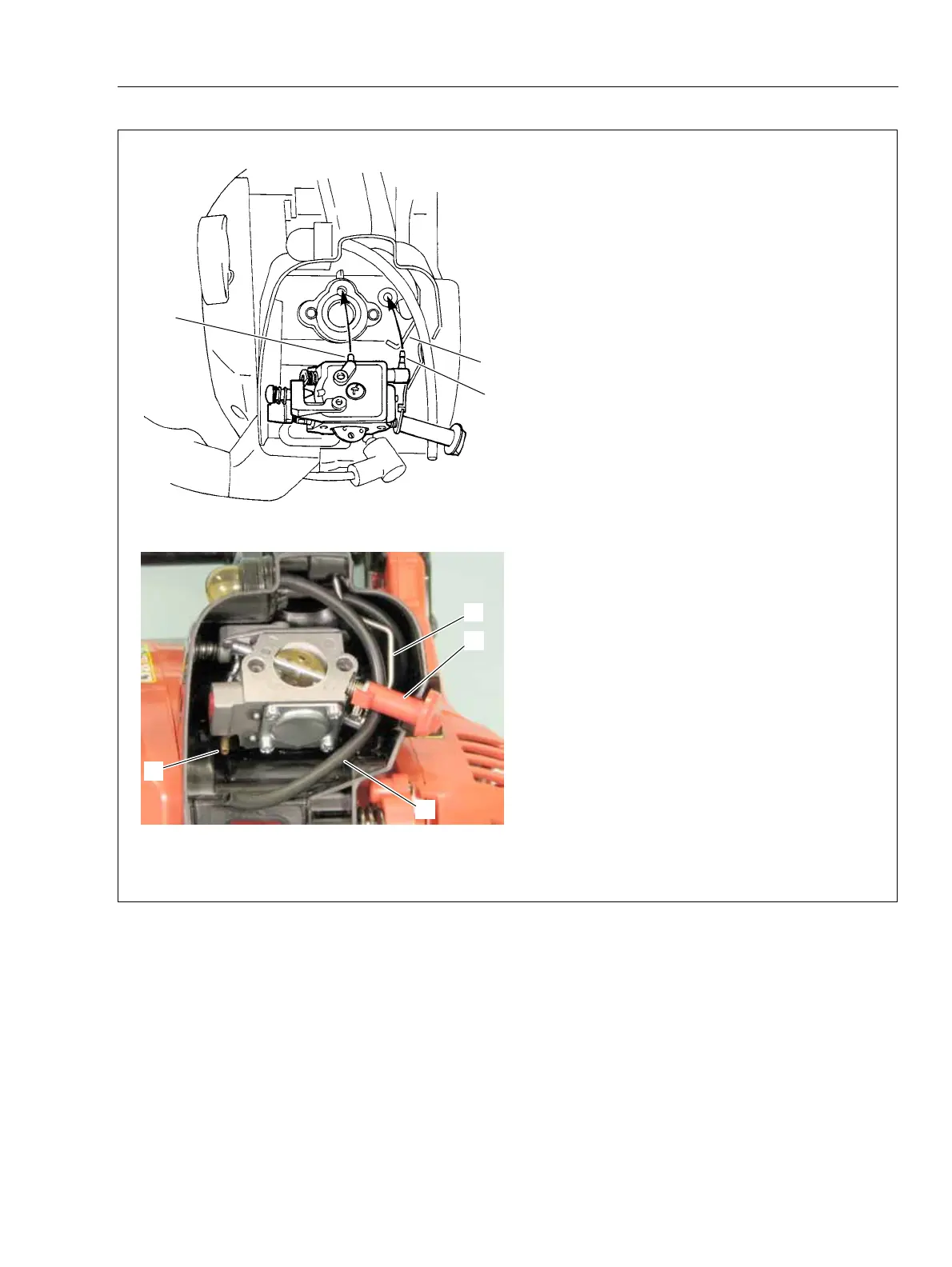

1. Install fuel inlet (A) and pulse passage nipple (B)
as shown.
2. Connect throttle rod (C) to carburetor.
NOTE: Early production CS-271T used sealant on
mating surface between carburetor and intake bel-
lows. Use of sealant is no longer required on any
CS-271T after conrmation test.
Effective date: March 1, 2012
Starting serial number:
CS-271T(11): 11004001 and after
CS-271T(12): 12008705 and after
CS-271T(13): 13001901 and after
3. Pass purge line (D) between throttle rod (C) and
choke knob (E).
4. Connect purge line (D) to tting (F) of carbure-
tor.
A
B
C
D
E
F
C
