Echo CS-271T Service Manual

FUEL SYSTEM
CS-271T
22

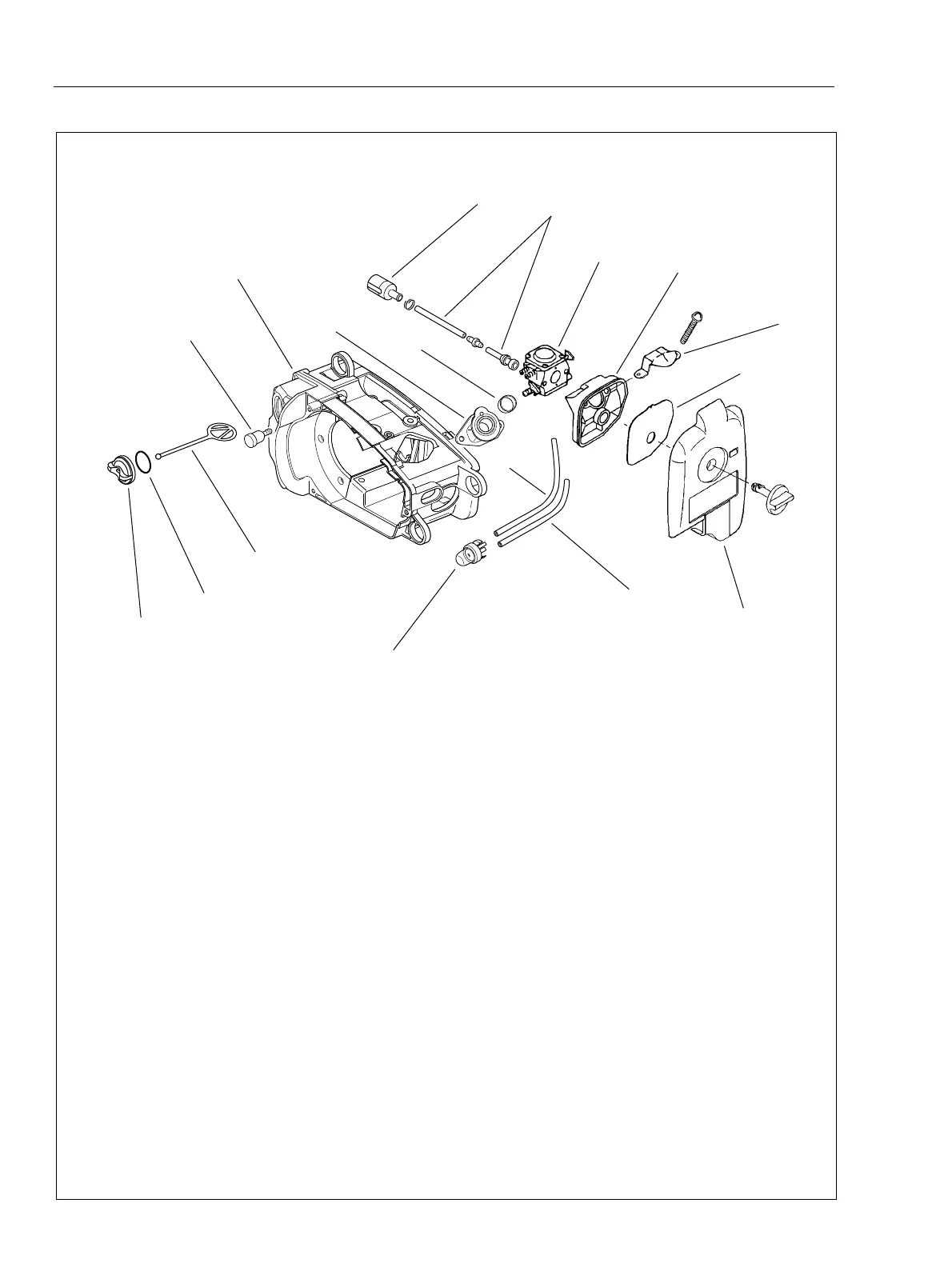

4 FUEL SYSTEM
( A ) Fuel cap
( B ) O-ring
( C ) Connector
( D ) Fuel tank vent
( E ) Fuel tank
( F ) Fuel strainer
( G ) Fuel lines
( H ) Carburetor
( J ) Air cleaner case
( K ) Prevent plate
( L ) Air lter
( M ) Air cleaner cover
( N ) Purge line
( O ) Fuel return line
( P ) Purge bulb
( Q ) Intake bellows
( R ) Collar
(L)
D
(E)
(O)
(A)
(B)
(F)
(C)
(N)
(M)
(G)
(H)
(J)
(P)
(K)
(Q)
(R)

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
